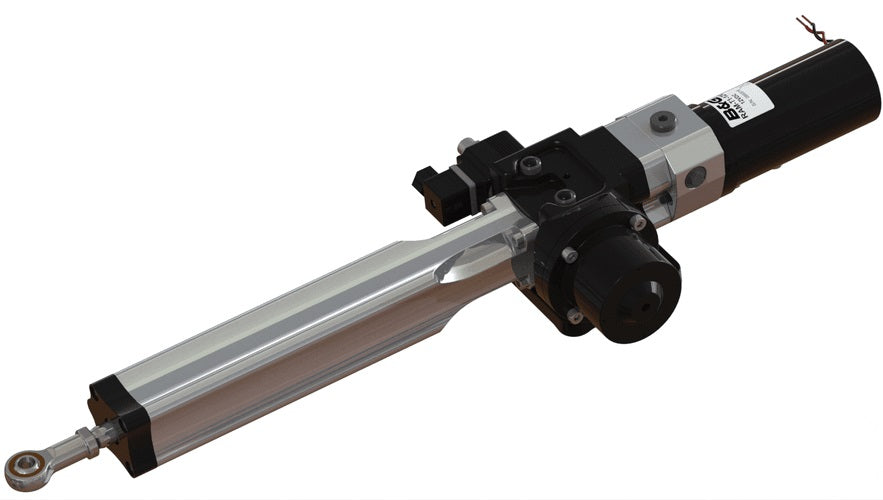

B&G Hydraulic Ram Series.

B&G Hydraulic Ram Series

Models:

000-13902-001 – RAM T0 12V
RAM-T1-12V – RAM T1 12V
RAM-T2-12V – RAM T2 12V
RAM-T2-24V – RAM T2 24V

Product Description

B&G RAM T-series hydraulic linear actuators integrate cylinder, pump, motor, clutch, and reservoir in sealed, pre-filled units for autopilot operation on mechanically steered vessels. These rams disengage the clutch for manual steering and engage via course computer for automatic steering, with internal relief valves protecting against rudder strikes and grounding. Designed for H5000/NAC3 computers, they feature aluminum construction, IP67/IP44 protection, and mineral hydraulic fluid compatibility.

Key Features

• Integrated sealed design with clutch solenoid for autopilot/manual switching

• Internal relief valves protect against overloads and rudder impacts

• Compatible with mechanical primary steering (back-drivable)

• 12V/24V operation with reversing motors, DIN 43650 clutch connections

• IP67/IP44 ingress protection, wide temperature range (-15°C to +65°C)

• Aluminum body, chrome-plated stainless steel piston rods, nitrile/PTFE seals

Comparison Table

What's in the Box

• B&G RAM T-series hydraulic actuator (model specific)
