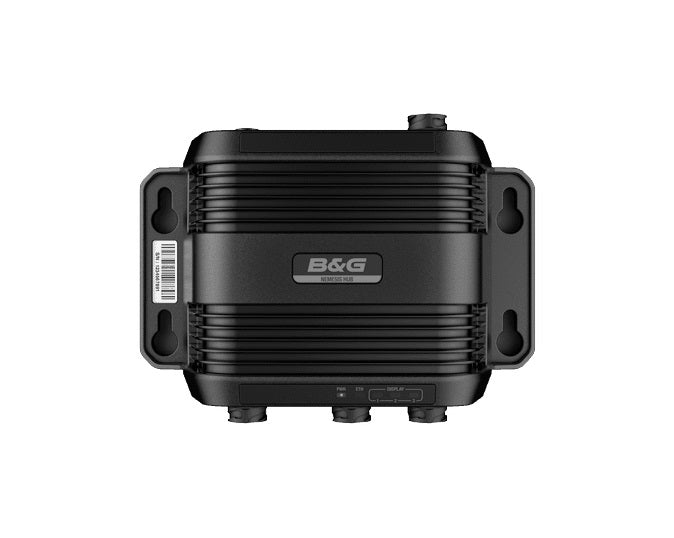

B&G Nemesis Hub

B&G Nemesis™ Hub

Model: 000-15683-001

• Connect up to 3 Nemesis™ displays easily when installed in close proximity to each other (e.g. mast or at helm).
• One simple interconnect cable (0.6m in length) required per display (1 included). Choices from 5m to 30m main Power/Ethernet cable options available.

B&G Nemesis™ Hub allows compact and straightforward connection of up to 3 Nemesis™ displays at a key location (mast, helm etc) with a single Power/Ethernet cable run, and a simple interconnect cable from the hub to each display.

Specifications

Environmental
Storage temperature	-15°C to +55°C (-5°F to 131°F)
Operating temperature	-20°C to +60°C (-4°F to 140°F)
Waterproof rating	IPX 6 and 7
Electrical
Power supply	12/24 V DC
Operating voltage	12/24 V DC (10 - 31.2 V DC (min - max)
Power consumption	2W plus max 60W distributed to connected displays.
Fuse rating	9 Amps
Physical
240g (0.44 lbs)	240g (0.44 lbs)
Interface/Connectivity
Ethernet/Power	1x 8-pin connector
Display	3x 8-pin Ethernet connectors
Ground	1x M4 Grounding

What's in the Box:

• Nemesis Hub
• Nemesis™ Hub Power/Ethernet Interconnect Cable
