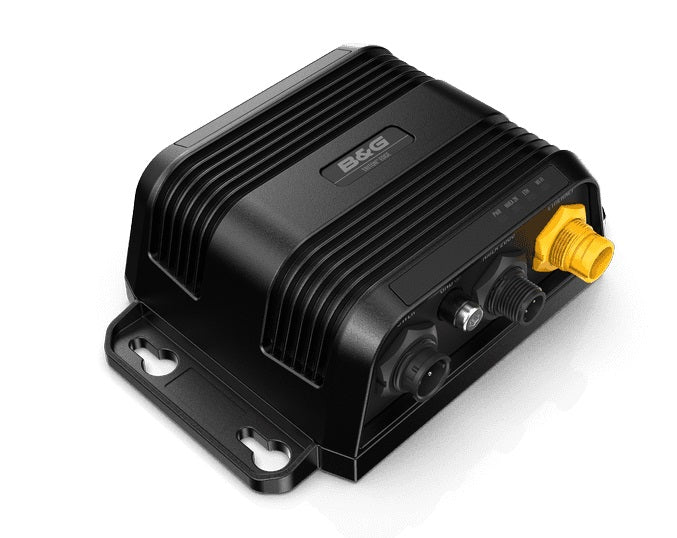

B&G Triton Edge Sailing Processor

B&G Triton™ Edge Sailing Processor with NMEA 2000®, Ethernet and built-in Wi-Fi.

Model: 000-15134-001

• Latest powerful micro processor provides all core instrument calculations
• Enhanced feature set for serious cruising yachts
• B&G App Integration
• Integrated webserver provides easy access to system configuration and control
• Record all you sailing data to the cloud
• Review your sailing data using the B&G companion app
• Backup, restore, and export of sailing data
• Ethernet interface. Ethernet, 100Mbps, waterproof
• Dual Wifi — Internet & Hotspot
• NMEA 2000® compliant interface (Micro C)
• LED status indicators
• Simple mounting, connectivity and a low profile design allows discrete and ease installation on any yacht.
• 12/24V power

Triton™ Edge™ Sailing Processor delivers an enhanced suite of sailing data such as advanced StartLine calculations, advance true wind data and autocalibration, boat speed calibration and correction, wind correction for heel/trim, improving accuracy of your sailing information. Wi-Fi and Ethernet allow for expanded integration with Triton™ 2 and Nemesis® displays, and Vulcan™ and Zeus® Chartplotters, whilst integration with the B&G® App also enables the ability to review or replay your sailing data, and web-browser based control allows for easy set-up and commissioning.

Specifications

Environmental
Operating temperature	Minus 15 to 55 C (5 to 131 F)
Storage temperature	Minus 40 to 85 C (Minus 40 to 185 F)
Waterproof rating	IPX6; IPX7
Electrical
Supply voltage	12/24V DC nominal (9-31V DC)
Physical
Weight Weight	260g (0.57lbs)
Compass Safe Distance	0.5m (1.6’)
Interface/Connectivity
NMEA 2000®	1x Micro-C
Ethernet	1x Navico 5 pin yellow
WiFi	802.11 b/g; Internal antenna

What's in the Box:

• Triton Edge Processor
• 4-Pin Power Cable
• N2K T-Joiner
• N2K Cable - 0.6m (2ft)
