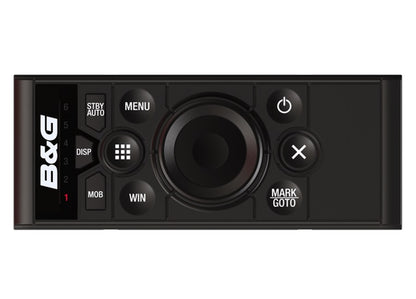

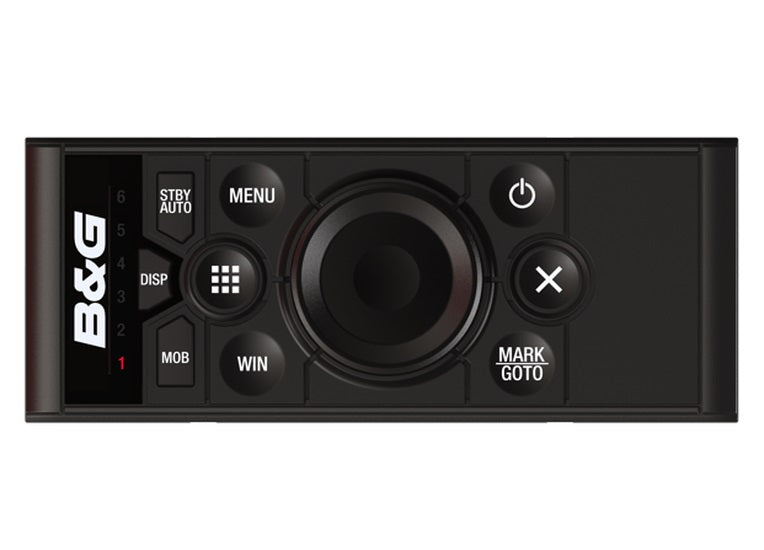

B&G ZC2 Remote Controller – Landscape & Portrait Mount (ZEUS & Vulcan Compatible)

Model Numbers:

• Landscape Mount: 000-12513-001

• Portrait Mount: 000-12365-001

Product Overview:

The B&G ZC2 Remote Controller delivers precise and intuitive control for marine Multi-Function Displays (MFDs), even in rough sea conditions. Available in both landscape and portrait mounting styles, the ZC2 features a slim design, a robust aluminum control dial, and is optimized for Simrad HEROiC software.

Designed for flexibility, it can be dash-mounted or installed on chair arms, offering ergonomic access to essential navigation functions.

Key Features:

• Available in Landscape or Portrait mount options

• Low-profile 8 mm (0.32") dash mount

• Total flush mount (bracket required)

• Narrow width allows for easy mounting on tight surfaces

• Rotary selector for menu navigation and chart zoom

• X/Y cursor pad for panning and placement

• Push-to-select enter key

• Controls up to 6 MFDs

• Compatible with ZEUS2/3, ZEUS Glass Helm, and Vulcan displays

• Optimized for Simrad HEROiC software

• High-volume alarm output (75 dBA @ 0.5m)

• Single NMEA 2000 Micro-C connection

Specifications:

• Weight: 300g (0.66 lb)

• Dimensions: 2.36" W x 5.9" H x 1.75" D

• Power Consumption: <100mA @ 13.5V

• Network Load (LEN): 2

• Color: Black

• Environmental Protection: IPx6 (from front when dash-mounted with gasket)

• Operating Temperature: -15°C to +55°C (5°F to 131°F)

• Connector: Molded 1.8 m (6 ft) cable with Micro-C connector

What’s in the Box:

• ZC2 Remote Controller (choose Landscape or Portrait)

• NMEA 2000 T-Joiner

• Suncover

• Dash Mounting Kit
