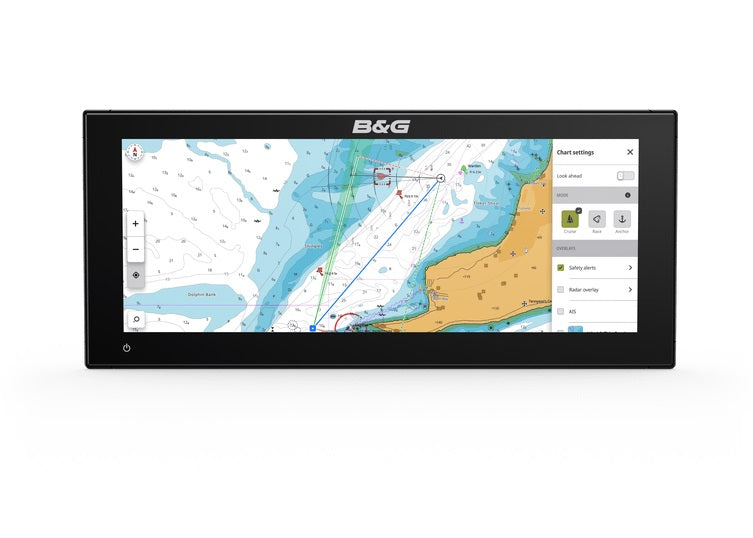

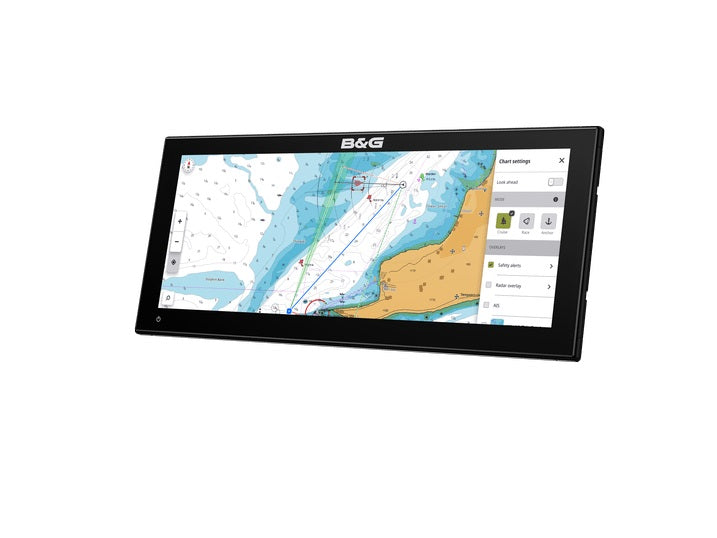

B&G Zeus S Ultrawide IPS HD Display

B&G Zeus® S 3015 Ultrawide 15" Chartplotter – with C-MAP® Discover X (AMER)

Model Numbers:

• 000-16357-001
• 000-16355-001

Experience the most immersive sailing navigation yet with the B&G Zeus® S 3015 Ultrawide. This 15" ultrawide SolarMAX™ IPS HD touchscreen delivers crystal-clear charts, customizable sailing modes, and seamless integration with your full B&G system.

Key Features:

• 15" Ultrawide SolarMAX™ HD Display
  1920×720 resolution with ultra-wide viewing angles and excellent sunlight visibility.
• Built-In GPS & Wi-Fi
  10Hz GNSS receiver with support for GPS, GLONASS, WAAS, and more.
• C-MAP® Discover X Included
  North America chart card with X-Chart Manager for easy updates, Safety Alerts, and detailed coverage.
• Sailing-Optimized Interface
  Choose from dedicated Cruise, Race, or Anchor modes with access to features like SailSteer™, LayLines™, StartLine, and RacePanel.
• Sonar Compatible
  9-pin port for CHIRP, SideScan, and DownScan sonar. Supports S3100 and S5100 modules (sold separately).
• Full System Integration
  Compatible with HALO® radars, Triton® 2 autopilots, Nemesis® instruments, wind sensors, and IP cameras.
• B&G App Integration
  Includes 12 months of premium app access with chart registration.

In the Box:

• Zeus® S 3015 Ultrawide Display
• C-MAP® Discover X – North America
• Suncover
• Rear Mount Kit
• Fuse & Fuse Holder

Specs at a Glance:

• Display: 15" IPS | 1920×720 | >1000 nits
• Power: 12V DC | Max 25W
• Mounting: Rear (included) or optional bracket
• Waterproof: IPX6 & IPX7
• Networking: Wi-Fi, Ethernet, NMEA 2000®
• Storage: 1× microSD®, 1× USB-A
• Size (no bracket): 15.55" × 6.71" × 3.48"
• Weight: 4.2 lbs

Warranty: 2-Year Manufacturer Warranty

Perfect for performance sailing or casual cruising, the Zeus® S 3015 Ultrawide offers unmatched visibility, control, and sailing intelligence — all in one ultrawide screen.

```
