B&G Zeus S Series Chartplotters Display C-MAP Discover

$999.00

~~$999.00~~ $999.00

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Screen Size: 7 inch 7 inch 9 inch

Description

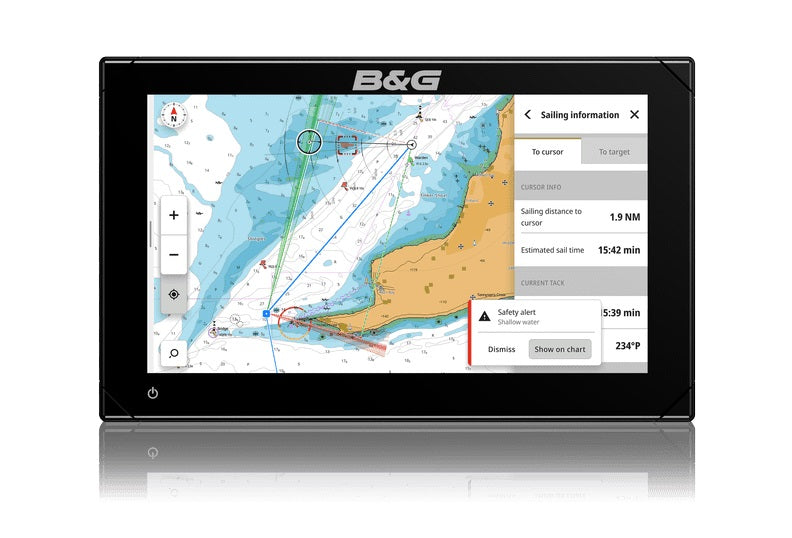

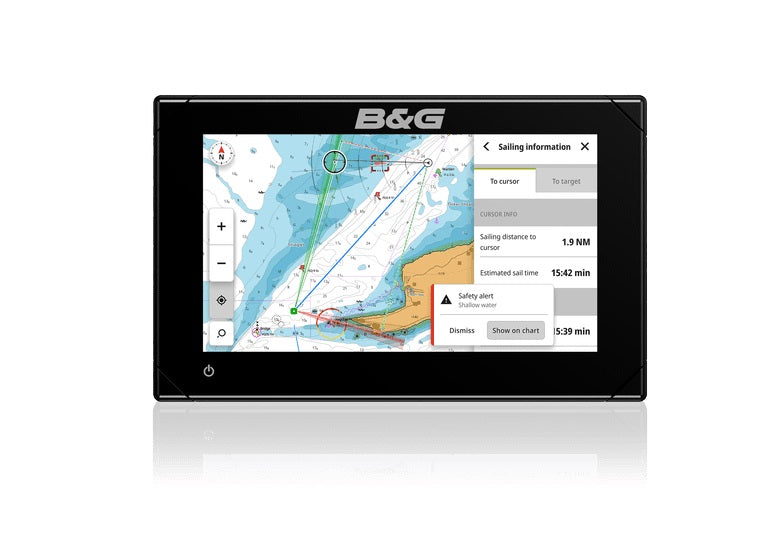

B&G Zeus S Series Chartplotters -9"& 7"

Model: 000-15220-001 | 000-15216-001

Product Description

The B&G Zeus S Series brings a new level of clarity, simplicity, and sailing intelligence to your helm. Designed specifically for sailors, the Zeus S 9 and 7 deliver sharp SolarMAX™ IPS touchscreens with wide viewing angles, optimized for polarized sunglasses and harsh sunlight. Both models feature full integration with C-MAP® DISCOVER™ X and REVEAL™ X charts, offering daily updates, tide and current data, and advanced autorouting for safer, smarter navigation.

Built for seamless expansion, the Zeus S integrates effortlessly with Simrad® radar, autopilot systems, NMEA 2000® instruments, and the B&G App. Its new, intuitive interface and Setup Wizard ensure a fast start, while the Sailing Mode tailors your screen to cruising or racing needs. With B&G’s award-winning features like SailSteer™, Laylines, StartLine, and RacePanel, the Zeus S puts professional-grade sailing data within reach of every skipper.

Key Features

7” or 9” SolarMAX™ IPS touchscreen — high-definition clarity and wide viewing angles
Supports C-MAP DISCOVER™ X & REVEAL™ X with daily updates and new chart presentation
Fast autorouting and tide/current projections for trip planning
Award-winning sailing tools — SailSteer™, Laylines, StartLine, Routes, Racing, and more
Dedicated Sailing Modes for Cruising or Racing views
Seamless integration with radar, autopilot, instruments, and digital switching
Built-in Wi-Fi and Bluetooth 4.0 for B&G App sync, updates, and streaming
Ethernet and NMEA 2000® connectivity for system expansion
IPx6/IPx7 waterproof rating and rugged build for marine environments
Intuitive interface with Setup Wizard and contextual tips

Comparison Table

Feature	Zeus S 9" Chartplotter (000-15220-001)	Zeus S 7" Chartplotter (000-15216-001)
Display Size & Type	9" SolarMAX IPS touchscreen	7" SolarMAX IPS touchscreen
Resolution	1280 × 800 px	1024 × 600 px
Screen Brightness	>1200 nits	>1200 nits
Viewing Angles	85° all directions	85° all directions
Supply Voltage	12 V DC (10–17 V range)	12 V DC (10–17 V range)
Power Consumption (max)	29.7 W (2150 mA @ 13.8 V)	11.5 W (830 mA @ 13.8 V)
Networking	Ethernet (1 port), NMEA 2000	Ethernet (1 port), NMEA 2000
Sonar Port	9-pin Xsonic 1kW single channel	9-pin Xsonic 1kW single channel
GPS	Internal 10Hz, WAAS/MSAS/EGNOS/GLONASS	Internal 10Hz, WAAS/MSAS/EGNOS/GLONASS
Storage	1 MicroSD slot	1 MicroSD slot
Wi-Fi / Bluetooth	Yes / Bluetooth 4.0	Yes / Bluetooth 4.0
Radar Compatibility	Halo Dome Radars	Halo Dome Radars
Autopilot Integration	Full Simrad/B&G autopilot control	Full Simrad/B&G autopilot control
Digital Switching	CZone / Command DDS	CZone / Command DDS
AIS over NMEA2000	Supported	Supported
Operating Temp Range	-15°C to 55°C	-15°C to 55°C
Waterproof Rating	IPx6 / IPx7	IPx6 / IPx7
Weight	2.2 kg (4.9 lbs)	0.8 kg (1.7 lbs)
Warranty	2 Years	2 Years
Recommended Use	Larger sailboats / performance yachts	Compact sailboats / racers / coastal cruisers
