B&G Zeus SR MFD US C-MAP No Sonar

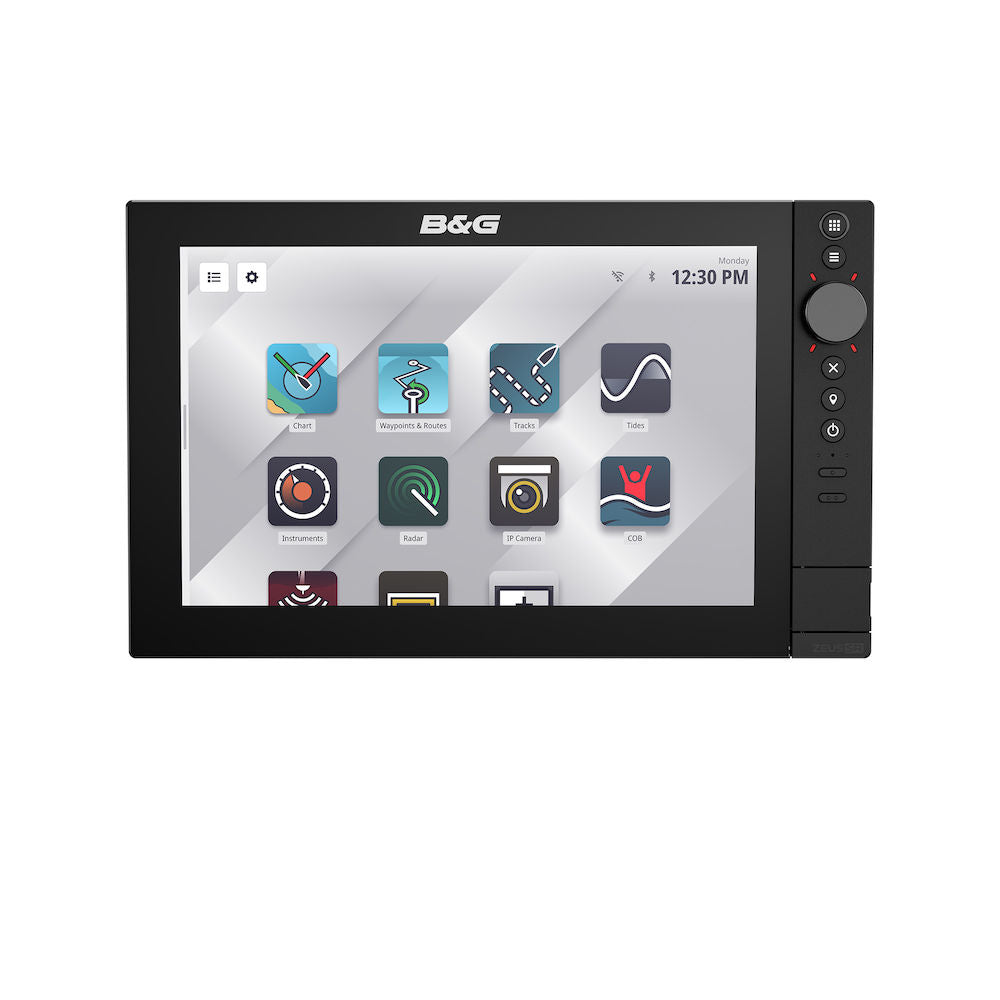

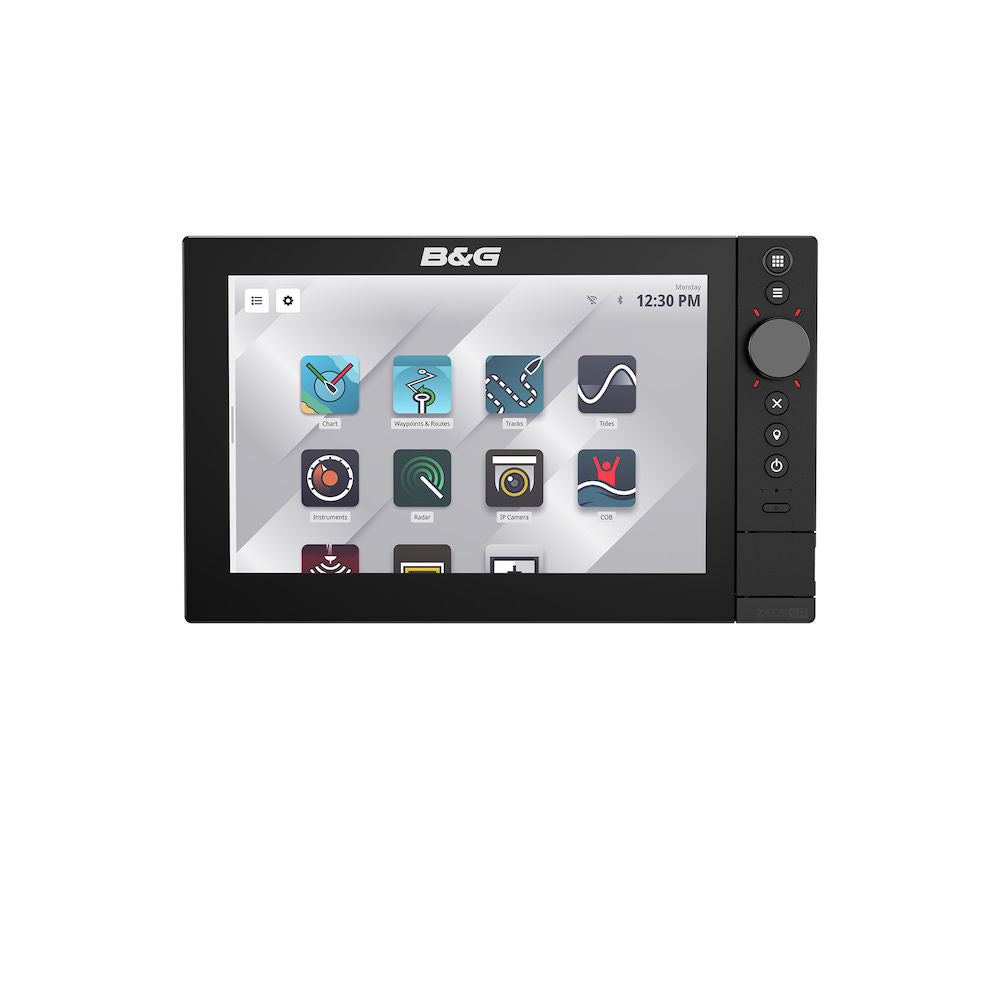

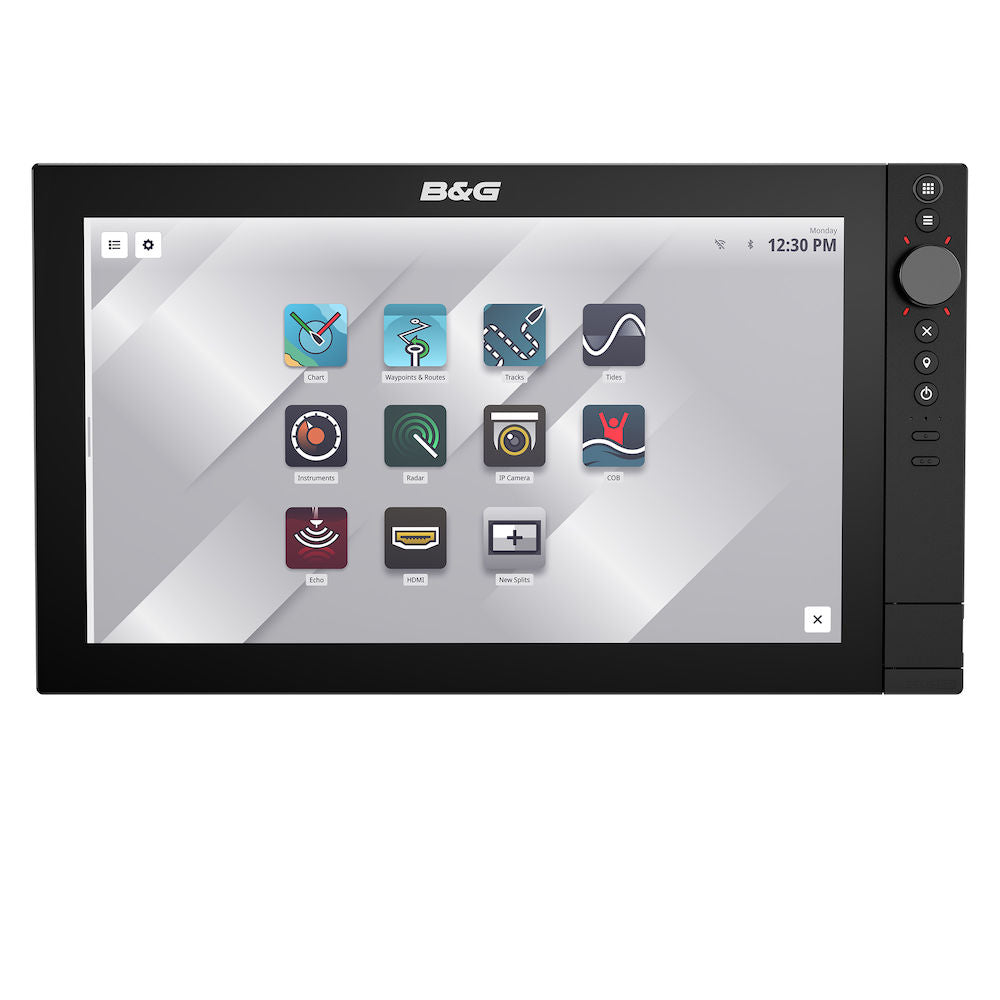

B&G Zeus® SR-16 16" MFD with US C-MAP® Discover X (No Sonar)

Model Numbers:

• 000-16027-001

• 000-16021-001

• 000-16024-001

Built for the serious sailor, the B&G Zeus® SR-16 delivers next-level navigation, race-proven sailing features, and superior system integration in a stunning 16-inch full HD touchscreen. Whether you’re cruising, racing, or anchoring, the Zeus SR-16 brings power, precision, and performance to every voyage.

---

Key Features:

• High-Definition SolarMAX™ IPS Display
  A large 16” touchscreen with 1920 x 1080 resolution, ultra-wide viewing angles, and clear visibility — even with polarized sunglasses.

• Tailored Sailing Modes
  Dedicated modes for Cruising, Racing, and Anchoring allow you to quickly adapt your display and data to your current activity.

• Award-Winning Sailing Tools
  Features like SailSteer™, LayLines, Routes, and StartLine provide tactical insight and help you sail smarter and faster.

• Next-Gen C-MAP® X Charts Included
  Comes with a US C-MAP® Discover X chart card. Compatible with C-MAP® Reveal X, third-party charts like CMOR, and StrikeLines (where available). Unlock advanced features like Safety Alerts, Night Mode, and X-Chart Manager for direct updates and downloads.

• Full Network Integration
  Seamlessly connects with HALO® radars, B&G® sailing processors (like Triton Edge and Hercules), autopilots, Nemesis® instruments, wind sensors, and more.

• Sleek and Powerful Interface
  Built-in Wi-Fi 5, Gigabit Ethernet, and NMEA 2000® networking for fast, reliable system-wide integration.

• No Built-in Sonar
  Sonar available via compatible modules like Simrad/B&G S3100 or S5100, or other networked MFDs with sonar ports.

• Video Support
  Connect up to four IP cameras for added situational awareness (supports ONVIF, FLIR 232/300, IPCAM-1).

• B&G® App Integration
  Comes with a 12-month premium subscription to the B&G App when you register a C-MAP® X chart.

---

Specifications:

• Display: 16” SolarMAX IPS touchscreen

• Resolution: 1920 x 1080

• Brightness: <1200 nits

• Viewing Angle: 80° top/bottom/left/right

• Power: 12/24V DC (10–31.2V) | Max consumption: 43.5W

• Waterproof Rating: IPX6 and IPX7

• Operating Temp: -15°C to 55°C (5°F to 131°F)

• Mounting: Bracket (optional) or rear mount (included)

• Weight: 3.8 kg (8.38 lbs)

---

Navigation & Connectivity:

• GPS: Internal 10Hz GNSS (GPS, GLONASS, Galileo, Beidou, QZSS, WAAS)

• Waypoint Capacity: 10,000 waypoints, 125 routes, 75 saved tracks

• Ports:

  • 2 × microSD®, SDHC®

  • 1 × USB

  • 1 × NMEA 2000 Micro-C

  • 1 × Ethernet (M12 GbE), 1 × Yellow 5-pin

  • Wi-Fi 5, Bluetooth 4.0

---

Radar & Autopilot Compatibility:

• Radar Support: HALO dome, open array, 3G/4G, Simrad HD (10/25kW)

• Autopilot Support: NAC-1, NAC-2, NAC-3, NAC-D

• Digital Switching: CZone® / DDS

• AIS Reception: Via NMEA 2000

---

What’s Included:

• Zeus® SR-16 Display

• C-MAP® Discover X Chart Card (North America)

• Mounting Hardware (Rear Mount Bracket Included)

• Power/Data Cable

• User Documentation
