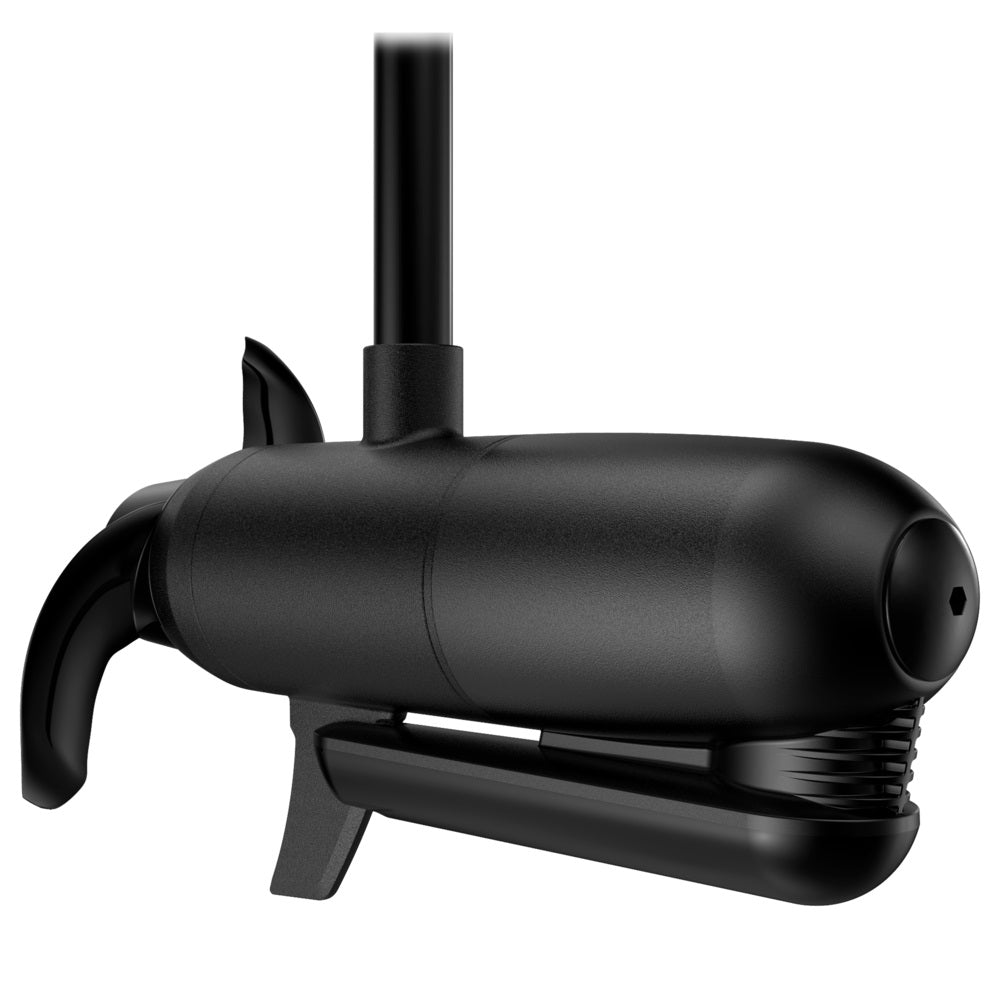

Lowrance Active Imaging 3in1 Nosecone for Ghost Motor

Product Description

The Lowrance Active Imaging 3-in-1 Nosecone for Ghost Motor is a specialized transducer pod that mounts directly to Lowrance Ghost trolling motors, combining CHIRP 2D sonar, SideScan, and DownScan Imaging for comprehensive fishfinding.

Product Overview

This nosecone upgrade transforms Ghost trolling motors into complete sonar platforms, delivering real-time imaging of fish, structure, and bottom contours ideal for tournament bass fishing and multi-species kayak applications with HDS PRO/LIVE displays.

Key Specifications

• Frequencies: 83/200 kHz CHIRP, 455/800 kHz Side/DownScan

• Connector: 9-pin or 18-pin Lowrance compatible

• Mount: Direct-fit Ghost motor lower housing

Technical Specifications

• Coverage: Medium CHIRP (40°-24°), SideScan 180 ft per side

• Max depth: 200+ ft CHIRP / 100+ ft SideScan

• Features: FishReveal Smart Mode, temperature sensor

What's in the Box

• Active Imaging 3-in-1 nosecone transducer assembly

• Mounting hardware and O-ring seal

• Installation instructions
