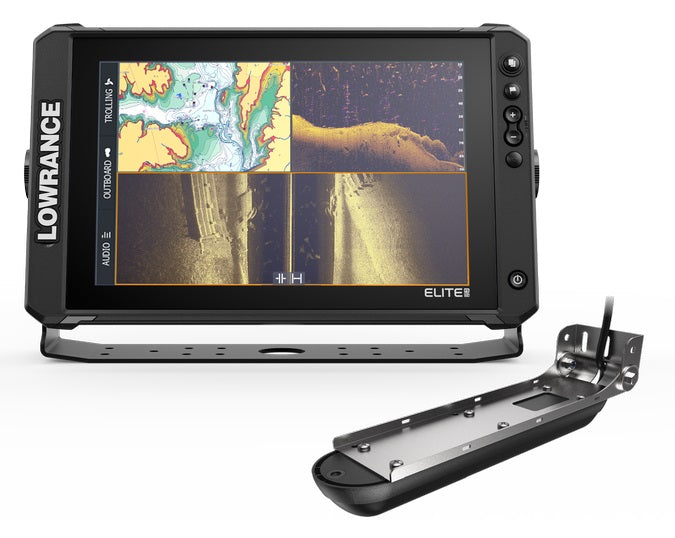

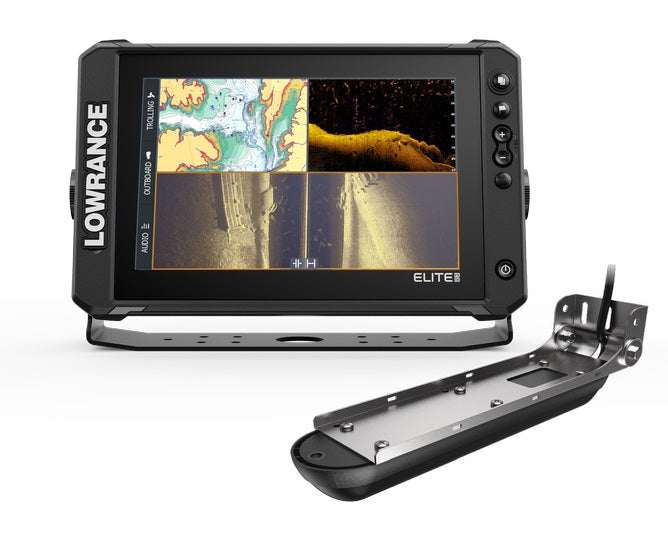

Lowrance Elite™ FS Series with Active Imaging™ 3-in-1 Transducer (US/CAN)

Models:

• Elite™ FS 12 – 000-16432-001

• Elite™ FS 10 – 000-16430-001

Experience professional-grade fishfinding performance with the Lowrance Elite™ Fishing System (FS) — a powerful, easy-to-use solution that combines advanced sonar, high-definition mapping, and full system connectivity.

Designed for serious anglers, the Elite FS supports the complete lineup of Lowrance sonar technologies, including ActiveTarget™ 2 Live Sonar, Active Imaging™ 3-in-1, and Active Imaging™ HD (with optional S3100 module). With FishReveal™ and preloaded C-MAP® Discover Onboard charts, it delivers exceptional target clarity, detail, and accuracy — helping you spend less time searching and more time catching fish.

---

Key Features

ActiveTarget™ 2 Live Sonar Ready
Track fish in real time as they move through cover and respond to your lure for smarter, more effective presentations.

Active Imaging™ 3-in-1 Sonar
Combines CHIRP, SideScan, and DownScan Imaging™ for detailed views of structure and fish. The integrated FishReveal™ merges CHIRP and DownScan data to highlight fish clearly within cover.

Active Imaging™ HD 3-in-1 Compatibility
Unlock enhanced target separation and higher-definition imaging with the optional S3100 Sonar Module.

Preloaded C-MAP® Discover Onboard Charts
Includes detailed inland and coastal mapping with 1-foot contours for over 19,000 U.S. lakes and 9,400+ Canadian lakes, revealing drop-offs, ledges, and structure zones.

Seamless Chart Compatibility
Compatible with C-MAP®, Navionics®, and other premium mapping options.

Brilliant Display & Touch Control
High-resolution, multi-touch screen with 1280 × 800 resolution and >1200 nits brightness, designed for clear visibility in any light.

Connectivity & Integration
Built-in Wi-Fi, Bluetooth®, NMEA 2000, and Ethernet ensure smooth networking with compatible Lowrance systems and accessories.

Rugged & Weather-Resistant Design
Tested for harsh marine conditions with IPX6/IPX7 waterproof rating and a wide operating temperature range.

Note: Split-screen capability is not supported on the 10” and 12” models.
Active Imaging™ HD requires the optional S3100 module.

---

Model Comparison

---

What’s in the Box

• Elite™ FS Display (choose 10” or 12”)

• Active Imaging™ 3-in-1 Transducer with 7.6 m (25 ft) cable and mounting bracket

• Elite™ FS Suncover

• Mounting Bracket & Knobs (HDS-12 LIVE/PRO & Elite FS-12 compatible)

• Power Cable

• Fuse and Fuse Holder

• Corner Clip (for ELITE-7, 9, 10, and 12 FS displays)
