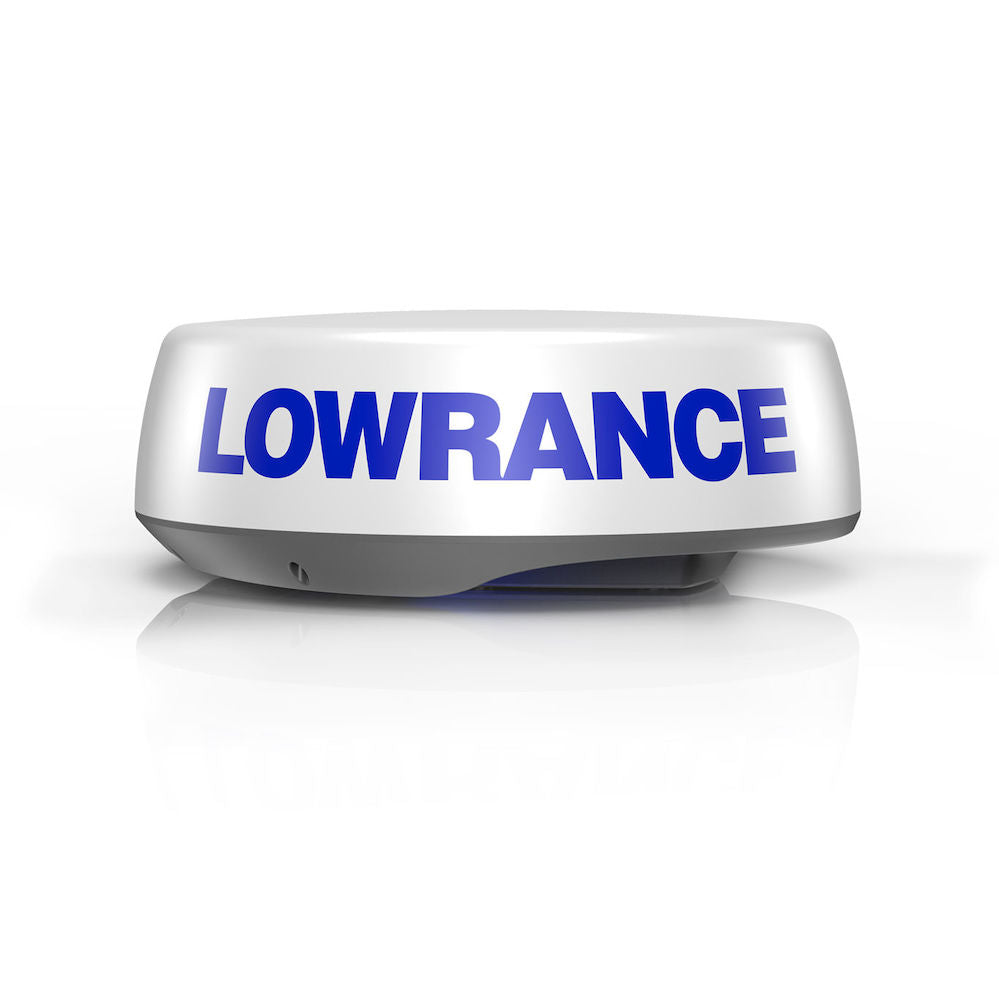

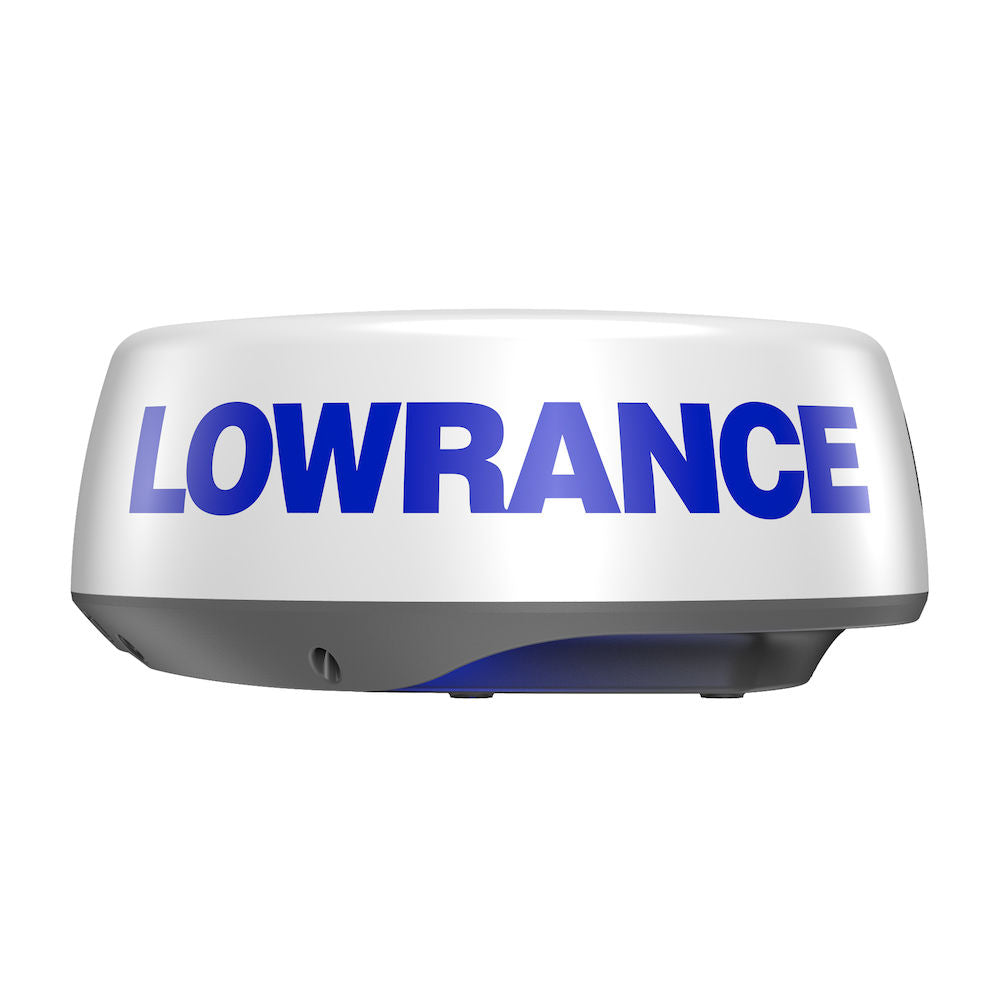

Lowrance Halo Radar Domes.

Lowrance Halo Radar Series: 20+ and 24 Inch Domes

Models:

• Halo 20+: 000-14542-001

• Halo 24: 000-14541-001

Overview:

The Lowrance Halo 20+ and Halo 24 radars are advanced marine radar systems designed for coastal and offshore navigation, offering exceptional target detection, collision avoidance, and situational awareness. Both models use advanced pulse compression technology with beam sharpening to provide superior long- and short-range detection from compact dome antennas. The industry-leading 60 RPM rotation speed delivers an almost real-time, 360-degree sweep, perfect for fast and accurate response in crowded or low-visibility conditions.

Key Features:

• Compact dome designs (20” and 24” diameter) with wide-range coverage

• Halo 20+ range: up to 36 nautical miles; Halo 24 range: up to 48 nautical miles

• Industry-first 60 RPM pulse compression radar for ultra-fast updates at close range

• VelocityTrack™ Doppler technology provides instant visual target motion feedback

• Simultaneous Dual Range operation monitors both near and far simultaneously

• Easy operation with modes for harbour, offshore, weather, bird, and custom settings

• MARPA target tracking detects and tracks up to 10 targets (20 in dual range mode)

• Instant On technology for rapid startup, cutting down wait times dramatically

• Fully waterproof with IPX6 rating and wide operating temperature range (-25°C to +55°C)

• Low power consumption with standby and operating modes designed to save energy

• Ethernet 100Base-T for reliable connection to compatible multifunction displays

Comparison Table

What’s in the Box:

• Radar Dome (20” or 24”)

• 5 m Radar cable (varies by model)

• Ethernet adapter cable

• Power and mounting hardware

• User manual
