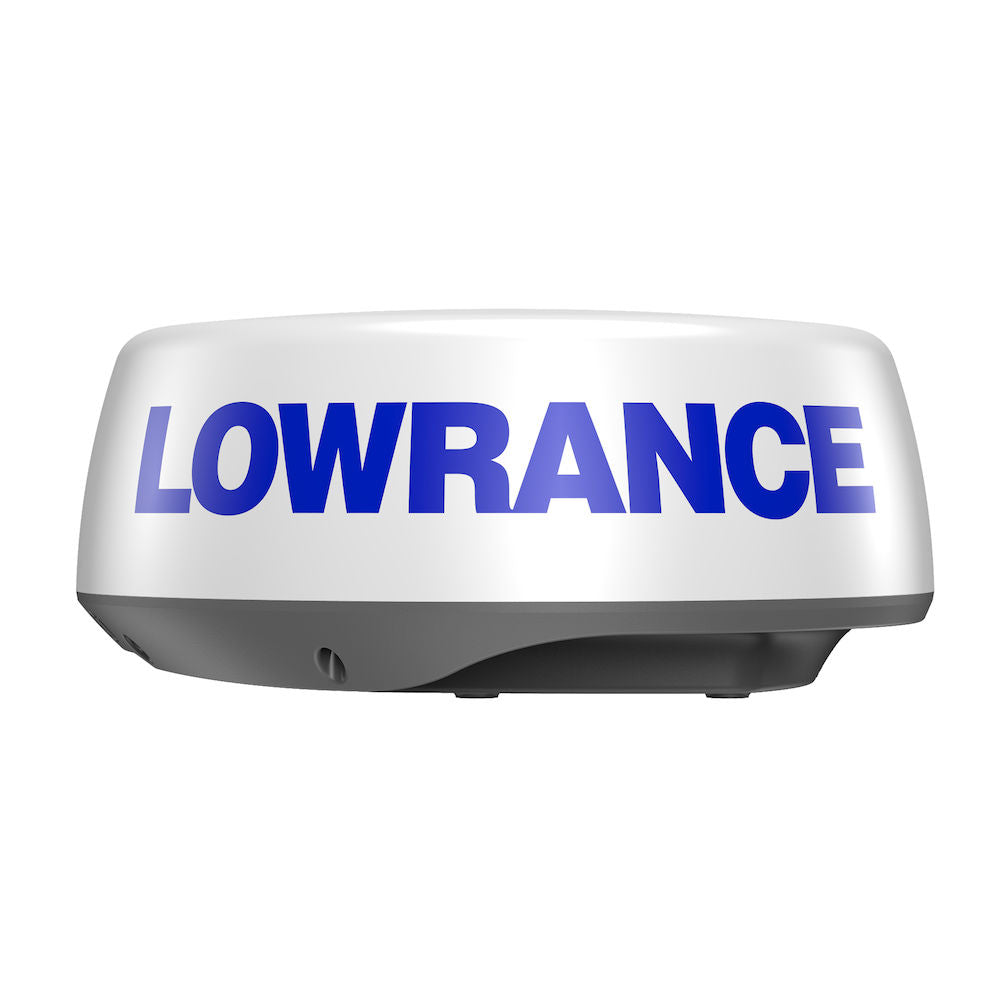

Lowrance Halo 20 Radar

Product Description

The Lowrance Halo 20 Radar is a compact 20-inch pulse compression dome radar offering 24 NM range performance with advanced target detection capabilities.

Product Overview

In marine navigation on boats, the Halo 20 provides instant-on solid-state radar imaging with excellent short-range performance (<50m minimum range) for collision avoidance, harbor navigation, and fishing, integrating seamlessly with Lowrance HDS LIVE/Pro 3 and Simrad NSS evo3 displays via Ethernet.

Key Specifications

• Dome size: 20 inches (510mm diameter)

• Peak power: 10W pulse compression

• Max range: 24 nautical miles

• Rotation speed: 24 RPM head/fast scan modes

Technical Specifications

• Horizontal beamwidth: 4.9° (-3dB); vertical: 25°; X-band 9.3-9.5 GHz frequency.

• Operating voltage: 10.5-31.2 VDC (17-20W typical); IPX6 waterproof rated.

• Features: VelocityTrack Doppler target separation, Dual Range mode, Low/medium/high clutter rejection, 360° collision zones.

What's in the Box

• Halo 20 radar dome (5.9 kg)

• 20m Ethernet cable with power injector

• Mounting hardware and template
