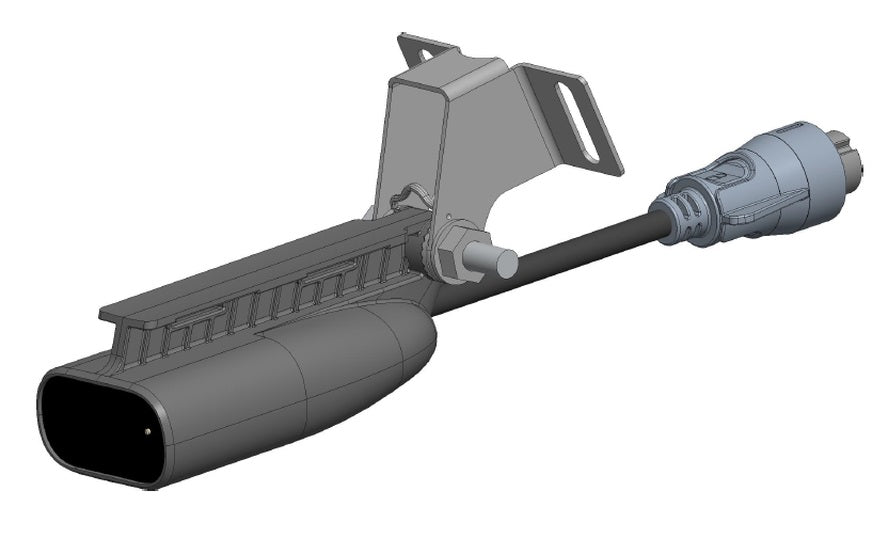

Lowrance Splitshot 8-Pin Transom Transducer with 20ft Cable for Eagle Units

Product Description

Lowrance Splitshot 8-Pin Transom Transducer with 20ft Cable is a dual-element skimmer-style transducer designed for transom mounting on boats, delivering High CHIRP sonar and DownScan Imaging™ for Eagle, Hook², and Reveal series fishfinders. Its primary function is providing wide-angle 2-in-1 sonar views to detect fish and structure beneath and beside the vessel via an 8-pin connector.

Product Overview

This transducer suits small to medium fishing boats, offering clear target separation and lifelike images for inland or coastal navigation without cavitation interference from transom placement. Marine installers pair it with Lowrance Eagle units for plug-and-play FishReveal™ integration during trolling or casting.

Key Specifications

• Cable length: 20 feet (6 meters)

• Connector: 8-pin for Lowrance Eagle/Hook² compatibility

• Frequencies: 200kHz wide (High CHIRP), 455/800kHz DownScan

• Beam width: 40° sonar; mounting bracket included

Technical Specifications

• Depth capability: 80m+ CHIRP sonar, 50m+ DownScan Imaging

• Dimensions: Approx. 5.13" x 3.08" x 3.9" (transducer body)

• Weight: 0.85 lbs (packaged); plastic construction

• Transom mount with adjustable pivot for waterline alignment

What's in the Box

• SplitShot 8-pin transom transducer with 20ft cable

• Stainless steel mounting bracket and hardware

• Installation template and instructions
