Simrad Antenna for Halo.

$1,763.00

~~$1,763.00~~ $1,763.00

Sold out

Shipping calculated at checkout.

Low stock: 5 left

Size : 6ft 6ft 4ft 3ft

Description

Simrad Halo Radar Antennas and Radar System

Product Description

Simrad Halo Radar delivers cutting-edge marine radar performance using solid-state Pulse Compression technology. This technology blends traditional pulse radar with broadband FMCW characteristics to offer high target resolution, long-range detection, and reduced onboard clutter. The radar antennas come in 3, 4, and 6-foot options, providing versatile installation choices for various vessel sizes.

Halo Radar boasts rapid start-up times (16-25 seconds), advanced digital signal processing for sidelobe reduction, directional sea clutter rejection, and forthcoming sector blanking for clearer radar displays. The system supports multi-target tracking (up to 10 targets, or 20 in dual range mode), MARPA functionality (GPS and heading sensor required), and customizable operation modes including Harbor, Offshore, Weather, and Bird.

Compatible with Simrad NSS evo2 and NSO evo2 multifunction displays, the system offers intuitive integration through Ethernet, low power consumption, and rugged water-resistant construction. Unique blue LED accent lighting enhances aesthetics and visibility on the radar pedestal.

Model:

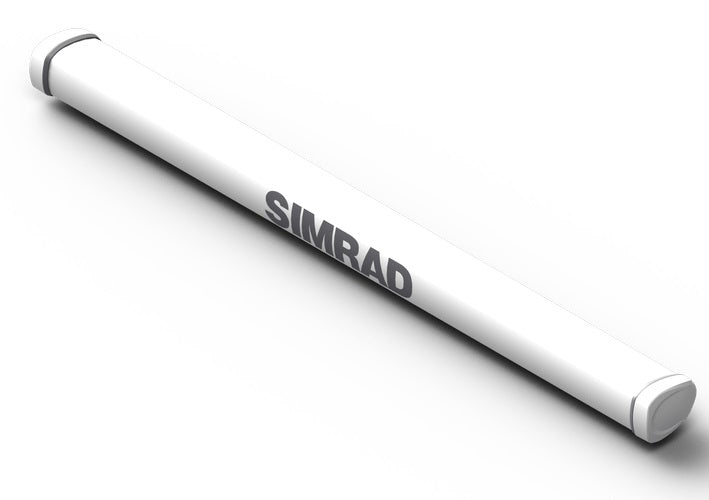

000-11466-001 — Simrad Halo Radar 6' Antenna

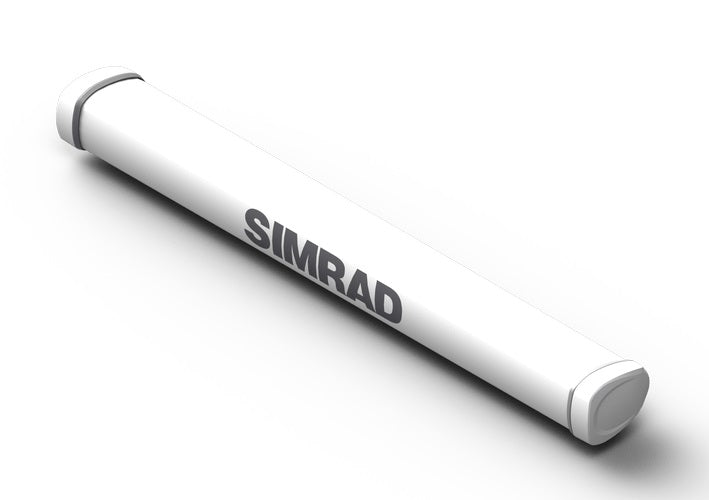

000-11465-001 — Simrad Halo Radar 4' Antenna
000-11464-001 — Simrad Halo Radar 3' Antenna

Key Features

Solid-state X-Band Open Array Radar with Pulse Compression technology
Rotation speed: Approx. 24-48 RPM (Min 20 RPM at 70 knots)
Power consumption: 40W average (no wind), max 150W at 70 knots wind, standby at 6.5W
Operating voltage: 10.8V to 31.2V DC (12/24V compatible)
Ethernet 10/100 Base-T connection with 10m cable included
IPX6 waterproof rating for robust marine use
Multi-target tracking: 10 targets on single range, 20 in Dual Range mode
MARPA support with GPS and heading sensors installed
Preset modes: Harbor, Offshore, Weather, Bird; customizable manual mode available
InstantOn technology for fast radar readiness
Low electromagnetic emissions for flexible installation
Blue dual-beam LED accent lighting with four-level brightness control
Two-year warranty

Comparison Table

Feature	6' Antenna (000-11466-001)	4' Antenna (000-11465-001)	3' Antenna (000-11464-001)
Antenna Length	6 ft (2047 mm)	4 ft (1443 mm)	3 ft (1142 mm)
Average Power Usage	40 W	40 W	40 W
Maximum Power Usage	150 W	150 W	150 W
Weight	Comparable to other models	Comparable to other models	Comparable to other models
Rotation Speed Range	24-48 RPM	24-48 RPM	24-48 RPM
Target Tracking Modes	10 (single), 20 (dual range)	10 (single), 20 (dual range)	10 (single), 20 (dual range)
MARPA Supported	Yes	Yes	Yes
Waterproof Rating	IPX6	IPX6	IPX6
