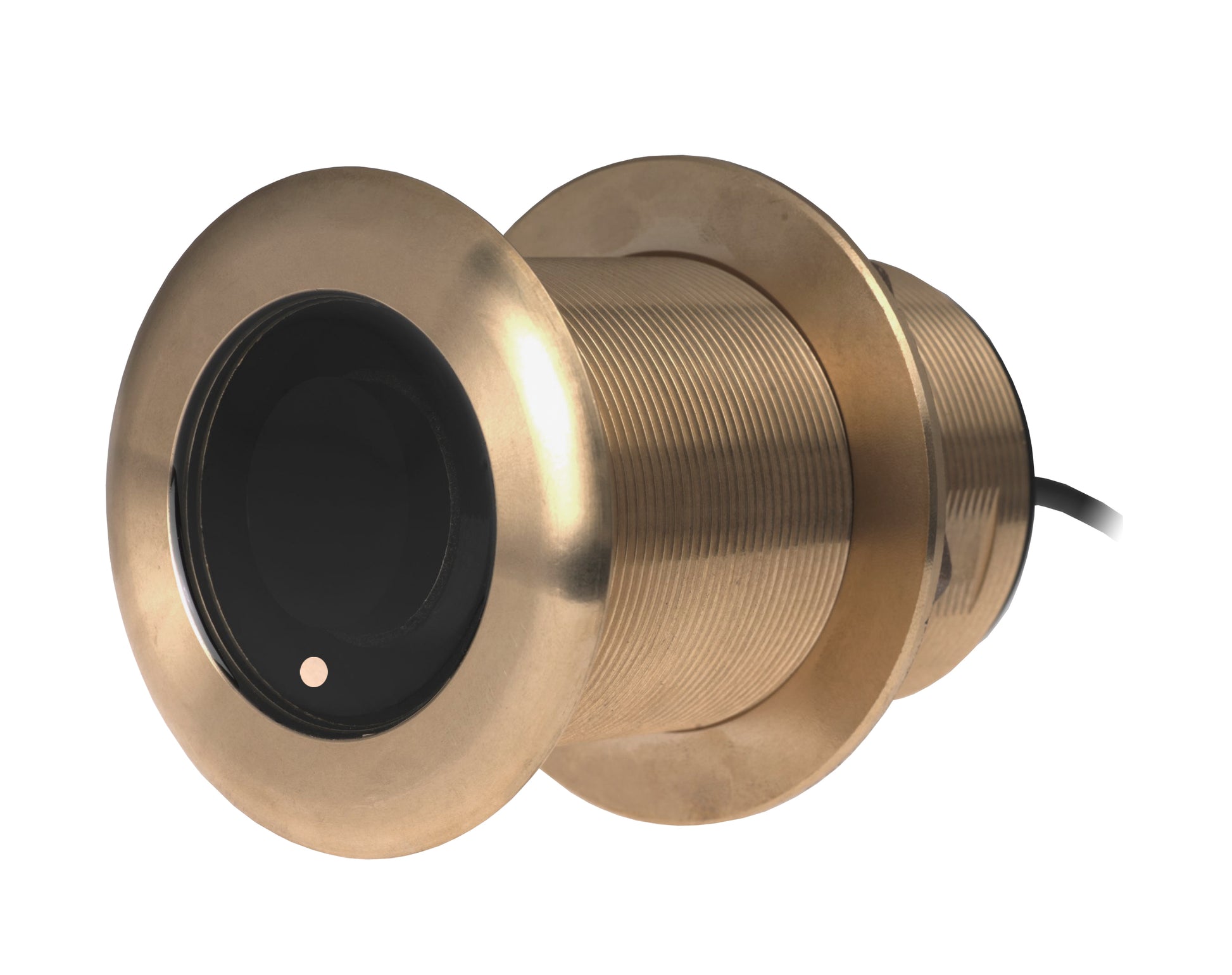

Simrad B150M Tilt Thru Hull 9-Pin.

Simrad XSONIC B150M CHIRP Thru-Hull Transducers

Product Description

Simrad’s XSONIC B150M series transducers are versatile, broadband CHIRP transducers designed for inshore and coastal fishing in shallow to medium depths. Offering a frequency range of 95-155 kHz, these transducers provide a total bandwidth of 60 kHz from a single unit, balancing excellent depth penetration with superior target resolution. They are ideal for a variety of hull types including fiberglass, wood, and metal, for sportfishing and commercial vessels up to 8 meters (25 feet) in length.

The B150M transducers are engineered to reveal fish close to structures or suspended in the water column, enabling anglers to track bottoms confidently at higher boat speeds thanks to wider beam coverage (26° to 17°). Available in bronze or black housings, these transducers feature one internal ceramic element and come with a 9-pin black connector with 10-meter cables.

Three tilt options—0°, 12°, and 20°—allow for optimized installation depending on hull shape and vessel type to maximize performance and coverage.

Model:

• 000-13922-001 — XSONIC B150M Bronze CHIRP Thru-Hull Transducer, 20° Tilt

• 000-13921-001 — XSONIC B150M Black 9-Pin CHIRP Thru-Hull Transducer, 12° Tilt

• 000-13920-001 — XSONIC B150M Black 9-Pin CHIRP Thru-Hull Transducer, 0° Tilt

Key Features

• Broadband CHIRP frequency range: 95-155 kHz, 60 kHz total bandwidth

• Depth and fast-response water temperature sensing

• Wide beam coverage providing arches between 26° and 17°

• Suitable for fiberglass, wood, and metal hulls

• Designed for sportfishing and commercial vessels up to 8 meters (25 feet)

• Single internal ceramic element with durable bronze or black epoxy housing

• Available in 0°, 12°, or 20° transducer tilt options to fit hull shapes and setup requirements

• Enables clear fish detection in shallow, murky waters and medium depths (up to 2,500 feet*)

• 9-pin black connector with 10m cable for secure connection

Comparison Table

What’s in the Box

• XSONIC B150M CHIRP thru-hull transducer with specified tilt angle

• 10-meter cable with 9-pin black connector

• Mounting hardware (depending on kit/package)
