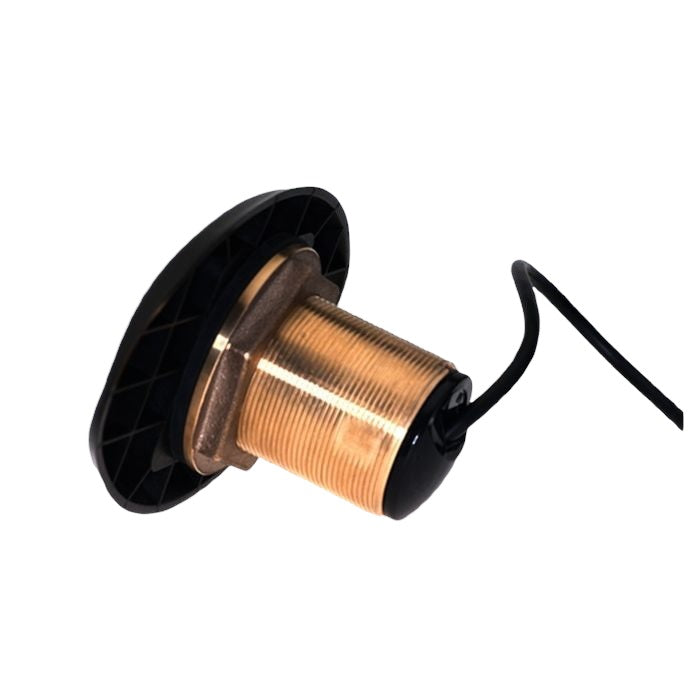

Simrad Bronze HDI Thru Hull Transducers 50/200/455/800 Khz 9-PIN.

Simrad Bronze HDI XDCR Down Scan Imaging Transducers

---

Product Description

The Simrad Bronze HDI XDCR series are advanced transducers combining traditional frequency sonar with Down Scan Imaging and temperature sensing. These transducers operate on multiple frequencies—50/200 kHz for classic sonar and 455/800 kHz for high-resolution Down Scan Imaging—giving detailed underwater images along with temperature data.

Each transducer in the series comes with a 10-meter (33 feet) cable and a black 9-pin connector that plugs directly into compatible Simrad echosounders. Installation requires selecting the transducer type in the echosounder's setup menu to enable optimal performance.

Available with different tilt angles (0°, 12°, and 20°), these bronze transducers are designed for various hull angles and installation needs, offering reliable performance for sophisticated fishfinding and underwater structure imaging.

---

Model:

• 000-13907-001 — Bronze HDI XDCR, 20° Tilt, 50/200 & 455/800 kHz

• 000-13906-001 — Bronze HDI XDCR, 12° Tilt, 50/200 & 455/800 kHz

• 000-13905-001 — Bronze HDI XDCR, 0° Tilt, 50/200 & 455/800 kHz

---

Key Features

• Combined traditional sonar and Down Scan Imaging

• Frequency bands: 50, 200, 455, and 800 kHz

• Integrated temperature sensor

• 10-meter (33 ft) cable with black 9-pin connector for direct echosounder connection

• Multiple tilt options to accommodate hull types and installation angles

• Beam widths @ -3 dB:

  • 50 kHz: 45°

  • 200 kHz: 11°

  • 455 kHz: Fore-aft 2.8°, Port-starboard 56°

  • 800 kHz: Fore-aft 1.6°, Port-starboard 32°

---

Comparison Table

---

What’s in the Box

• Simrad Bronze HDI XDCR transducer with specified tilt

• 10 m (33 ft) cable with black 9-pin connector
