Simrad DST810 Multi Sensor Airmar Smart Transducer Thru Hull.

Simrad IDST-810 Active Depth, Speed, Temperature Thru-Hull Transducers

Product Description

The Simrad IDST-810 series multi-sensors provide real-time depth, speed-through-water (heel-corrected), heel and trim, and water temperature data through a single installation. Designed for both sailing and power boats, these transducers incorporate an integrated attitude sensor for improved accuracy and maneuverability. Featuring advanced speed calibration for manual speed entries at multiple heel angles and up to 10 speeds, previously only possible through specialized software, the units offer precise and high-frequency updates to the NMEA 2000 network.

Available in two housing types—durable bronze or lightweight plastic—they deliver popular shallow water depth performance at 235 kHz and cover depths up to 100 meters (330 feet). Wireless Bluetooth Low Energy support enables convenient sensor monitoring within 30 feet of the mount location.

Model:

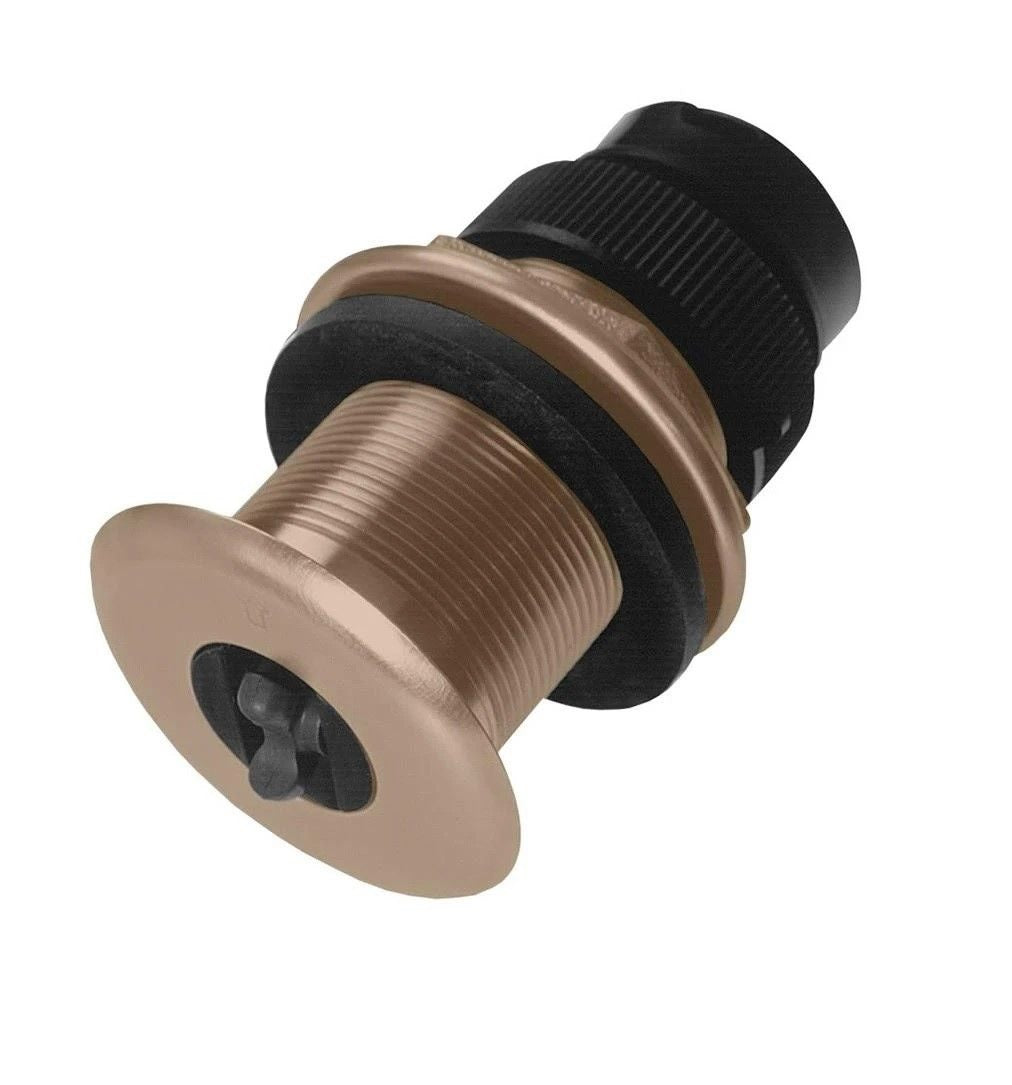

• 000-15736-001 — IDST-810 with Bronze Housing

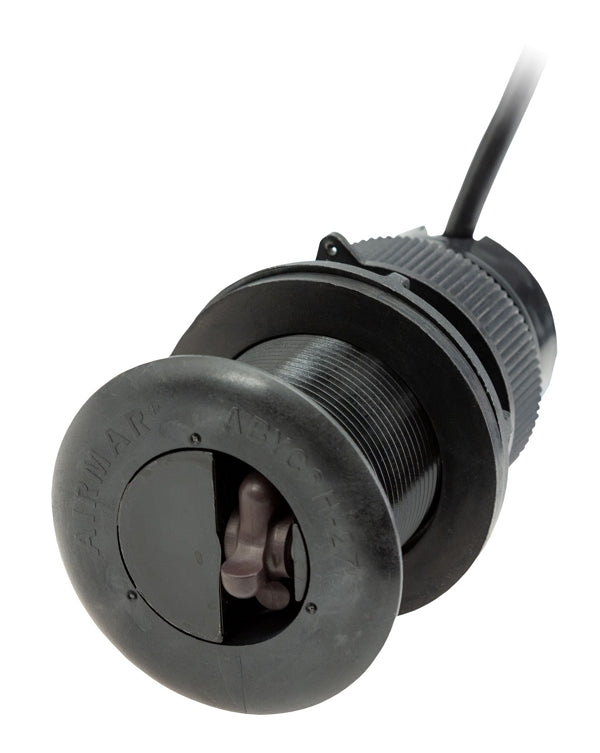

• 000-15735-001 — IDST-810 with Plastic Housing

Key Features

• Combines depth, heel-corrected speed-through-water, heel and trim, and water temperature in one transducer

• 5 Hz speed output (5 times per second) for smoother speed data and quicker decision-making

• Integrated attitude sensor for heel and trim benefits on sailing and power boats

• Advanced Speed Calibration supporting manual speed entries for multiple heel angles and up to 10 speeds

• Depth frequency of 235 kHz with minimum depth range of 0.5 m (1.6’) and max depth of 100 m (330’)

• Speed range up to 45 knots with 20,000 pulses per nautical mile

• Wired NMEA 2000 communication with a standard 6 m (20 ft) DeviceNet cable

• Bluetooth Low Energy (BLE) wireless protocol with up to 30 ft wireless range for sensor access

• Temperature sensor accurate to +/-0.5°C (±1.8°F) with operational range -10°C to 40°C (14°F to 104°F)

• Robust hull deadrise tolerance up to 22°

• Low supply current consumption (<200 mA)

Comparison Table

What’s in the Box

• DST-810 Insert (multisensor unit)

• Durable Bronze Housing or Plastic Housing (model dependent)
