Simrad IS Digital Displays.

Simrad IS42 and IS35 Digital Displays

---

Product Description

Simrad offers two versatile digital display instruments designed for marine environments, focusing on clear, efficient data visualization and easy integration within marine electronic systems.

The Simrad IS42 is a multi-purpose sailing instrument and autopilot display featuring a 4.1-inch optically bonded color screen with transflective LCD technology, providing exceptional visibility in all lighting conditions. It displays wind, speed, depth, engine data, autopilot status, and more. Compatible with Simrad AC12, AC42, NAC-2, and NAC-3 autopilot computers, it supports the addition of an OP12 keypad for full autopilot control. The IS42 features a low-profile glass helm design, low power consumption, and certified NMEA 2000® connectivity, making it suitable as both a standalone instrument or part of a larger multifunction system.

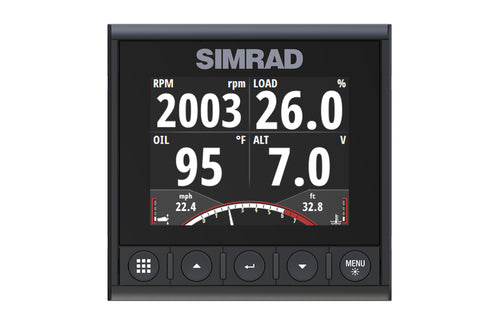

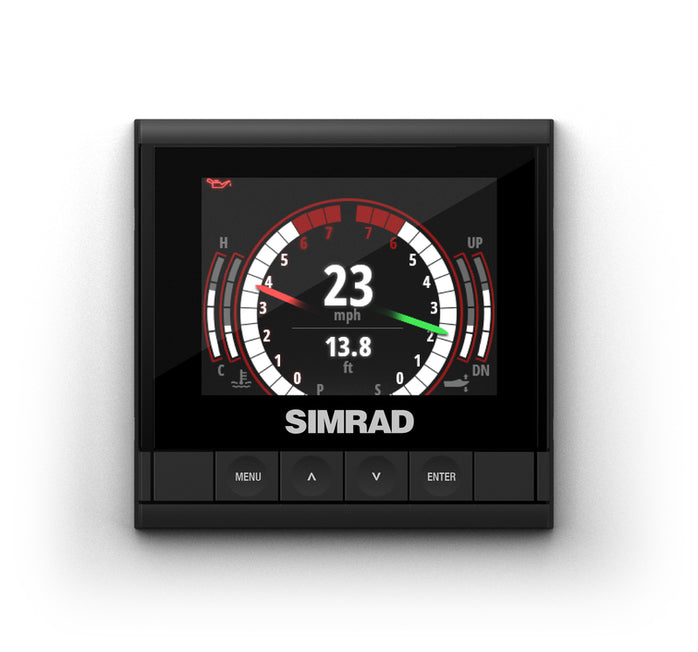

The Simrad IS35 is a compact digital gauge designed to display prioritized dynamic engine and vessel data from NMEA 2000 compatible sensors. With a bright 3.5-inch bonded color TFT-LCD display, the IS35 provides excellent readability in any light. It features simple menu navigation, configurable page cycles, and fits standard gauge holes with options for surface or flush mounting. The IS35 automatically displays relevant engine data, supports automatic page scrolling, and runs on the intuitive Navico Operating System (NOS).

---

Model Numbers

---

Key Features

Simrad IS42:

• 4.1" optically bonded color display with 170° viewing angle

• Displays wind, speed, depth, engine data, autopilot status, AIS messages, and DSC calls

• Compatible with Simrad AC12, AC42, NAC-2, NAC-3 autopilot systems

• Supports OP12 keypad for full autopilot control

• Low power consumption, low-profile glass helm design

• Certified NMEA 2000® connectivity

• Fully waterproof (IPX7)

• Dimensions: 118 x 115 x 28 mm

Simrad IS35:

• 3.5" bonded color TFT-LCD display (320 x 240 pixels)

• Automatically prioritizes and displays engine and vessel data

• Simple, intuitive menu navigation with configurable page cycling

• Fits standard gauge holes with surface or flush/rear mount options

• Integrated 1.2 m cable with Micro-C male connector

• Waterproof (IPX7)

• Runs Navico Operating System (NOS) for ease of use

---

Comparison Table

---

What’s in the Box

Simrad IS42:

• IS42 Display

• Documentation (varies by kit, typically includes user manual)

Simrad IS35:

• IS35 Display

• Suncover

• Documentation
