Simrad NAC Autopilot Core Packs

Product Overview

Simrad offers a comprehensive range of autopilot cores tailored for different vessel sizes and power requirements. These include the NAC-3 High-current Core Pack, the NAC-2 Low-current Core Pack, and the NAC-1 Course Computer, each engineered to deliver reliable, precise steering control across a variety of marine environments.

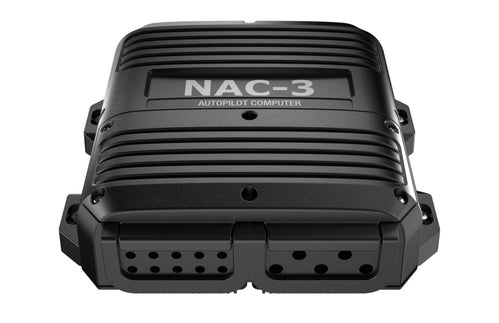

The NAC-3 High-current Core Pack is designed for larger vessels (10 meters/33 feet and above) with high-current hydraulic drive units, mechanical drives, or solenoid valves rated up to 30A continuous and 50A peak. It features advanced control algorithms, interfaces for multiple rudder feedback options, and robust waterproof protection (IPX7). It supports heavy-duty drive systems and interfaces seamlessly with systems like NMEA 2000® and NMEA 0183.

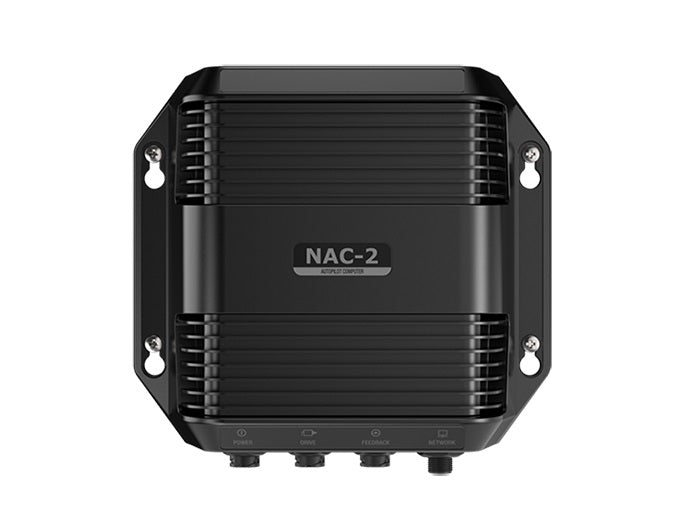

The NAC-2 Low-current Core Pack is tailored for vessels up to 10 meters (about 33 feet), supporting low-current hydraulic drives, mechanical drives, and solenoid valves rated at 8A continuous and 12A peak. It includes a virtual rudder feedback option for easy installation, and also integrates with NMEA 2000® and NMEA 0183 networks. It is splashproof with IPx5 protection.

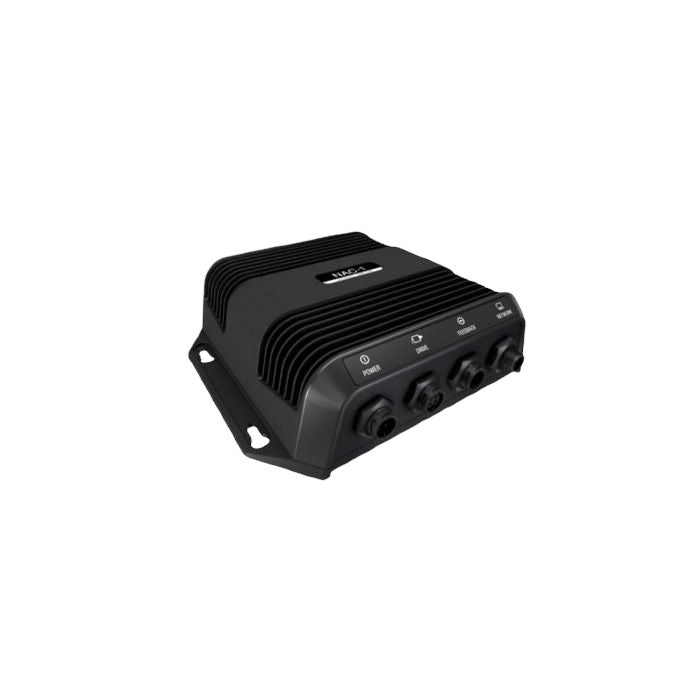

The NAC-1 Course Computer is a simpler, dedicated steering brain designed for outboard and drive pilot systems, providing essential control for smaller vessels and outboard setups, and includes only the core electronics needed for basic autopilot function.

Model Numbers

Model Number	Description
000-13336-001	NAC-3 High Current Autopilot Core Pack
000-13335-001	NAC-2 Low Current Autopilot Core Pack
000-11769-001	NAC-1 Course Computer

Key Features

NAC-3 High-current Core Pack:

Rated for continuous 30A, peak 50A drive control
Suitable for large vessels with hydraulic, mechanical, or solenoid drives
Includes the advanced control algorithms and a Precision-9 compass
Supports multiple feedback options including NMEA2000 Rudder Feedback (RF25), RF300 frequency feedback, and more
IPX7 waterproof protection
Compatible with NMEA 2000® and NMEA 0183 networks

NAC-2 Low-current Core Pack:

Rated for 8A continuous and 12A peak drive control
Suitable for vessels up to 10 meters (33 feet)
Includes Precision-9 Compass and supports NMEA 2000® networking
Features virtual rudder feedback for easier installation in outboard/sterndrive boats
IPx5 splashproof protection

NAC-1 Course Computer:

Designed as the core steering controller for outboard and drive pilot systems
Includes the steering control electronics and drive interface

Comparison Table

Feature	NAC-3 (000-13336-001)	NAC-2 (000-13335-001)	NAC-1 (000-11769-001)
Vessel Size Support	≥ 10 m (33 ft)	Up to 10 m (33 ft)	Smaller vessels, outboards
Drive Current (Continuous/Peak)	30A / 50A	8A / 12A	N/A
Waterproof Protection	IPX7	IPX5	N/A
NMEA 2000® Network Support	Yes	Yes	No
Rudder Feedback Options	RF25, RF300, NMEA feedback	RF25, RFU, NMEA feedback	N/A
Compass Included	Yes	Yes	N/A
