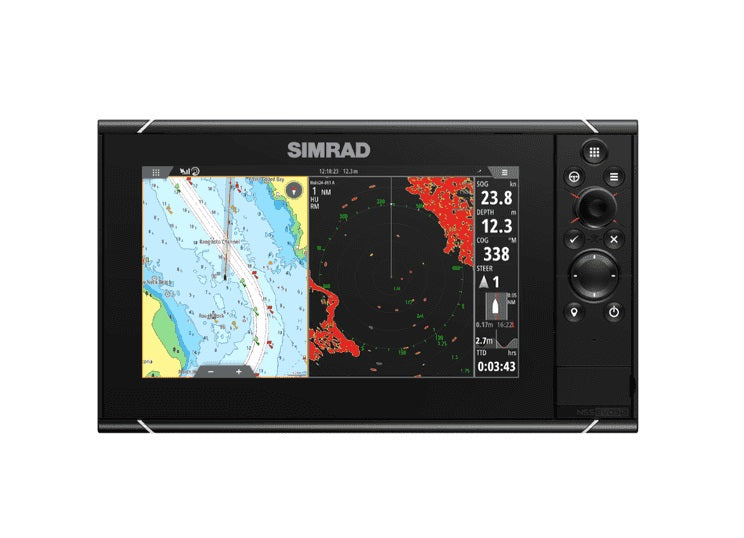

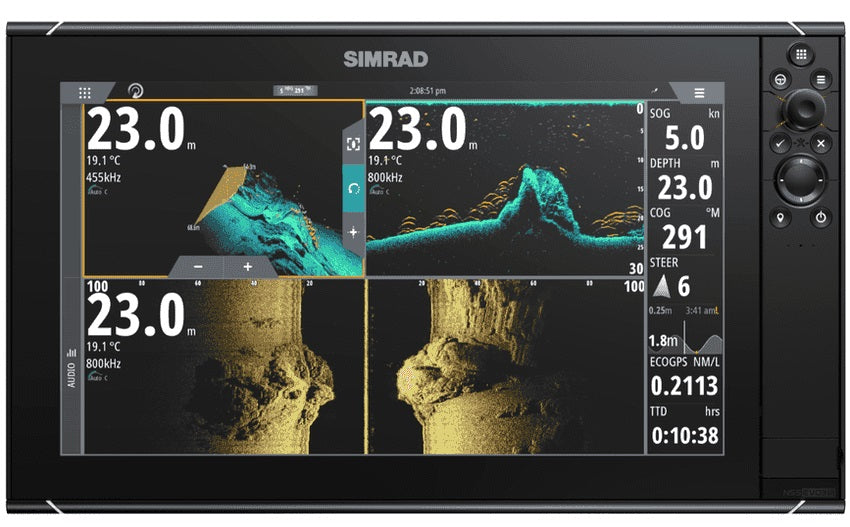

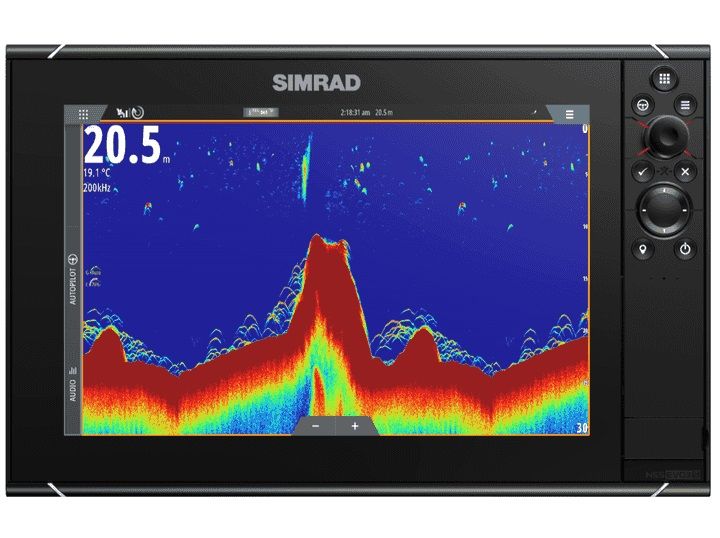

Simrad NSS evo3s Combo MFD With C-Map US Enhanced Map.

$5,499.00

~~$5,499.00~~ $5,499.00

Sold out

Shipping calculated at checkout.

11 in stock

Screen Size: 16 inch 16 inch 12 inch 9 inch

Description

Simrad NSS evo3S Series

Combo MFD With C-Map US Enhanced Map

Models: 000-15404-001 | 000-15403-002 | 000-15402-001

PRODUCT DESCRIPTION

The Simrad NSS evo3S series delivers professional-grade navigation, sonar, and control performance for serious anglers and offshore cruisers. Designed with SolarMAX™ IPS displays, each unit provides ultra-bright, high-resolution visuals visible from any angle and in any conditions. The next-generation processor ensures smooth operation, faster chart redraws, and real-time sonar responsiveness.

Each NSS evo3S integrates a built-in 1kW CHIRP echosounder supporting dual-channel, ForwardScan™, DownScan, and StructureScan 3D imaging. Users can control the unit using both touchscreen and keypad - perfect for harsh marine environments.

With full NMEA2000, Ethernet, and Wi-Fi connectivity, the NSS evo3S integrates seamlessly with radar, autopilot, engines, and Simrad network modules for an unmatched helm experience.

KEY FEATURES

SolarMAX™ IPS Display – Bright, high-resolution and optically bonded for perfect visibility even in direct sunlight.
Next-Generation Processor – Lightning-fast interface, instant sonar feedback, and smooth chart rendering.
Dual Control – Multi-touch touchscreen and full keypad for all-weather operation.
Built-In 1kW CHIRP Sonar – Supports dual-channel CHIRP, ForwardScan™, Sidescan, Downscan, and StructureScan 3D.
Networking Ready – NMEA2000®, NMEA0183®, Ethernet, Wi-Fi, and Bluetooth connectivity.
Halo Radar, S5100, and Autopilot Integration – Seamless communication with Simrad’s top-tier modules.
Internal 10Hz GPS Receiver – Fast, accurate positioning and tracking.
Rugged Construction – IPX6 and IPX7 waterproof ratings for reliable offshore performance.
Compact Glass Dash Design – Sleek, low-profile styling suitable for modern helms.

COMPARISON TABLE

Feature	NSS evo3S 16" (000-15404-001)	NSS evo3S 12" (000-15403-002)	NSS evo3S 9" (000-15402-001)
Display Size	16"	12"	9"
Display Type	SolarMAX™ HD IPS	SolarMAX™ HD IPS	SolarMAX™ HD IPS
Resolution	1080 × 1920	800 × 1280	600 × 1280
Brightness	1200 nits	1200 nits	1200 nits
Touchscreen + Keypad	Yes	Yes	Yes
Processor	Next-Generation Quad-Core	Next-Generation Quad-Core	Next-Generation Quad-Core
Built-in Sonar	1kW Dual Channel CHIRP + StructureScan 3D	1kW Dual Channel CHIRP + StructureScan 3D	1kW Dual Channel CHIRP + StructureScan 3D
Max Depth	3000'+ (with B175L)	3000'+ (with B175L)	3000'+ (with B175L)
Networking	NMEA2000, NMEA0183, Ethernet, Wi-Fi, Bluetooth	NMEA2000, NMEA0183, Ethernet, Wi-Fi, Bluetooth	NMEA2000, NMEA0183, Ethernet, Wi-Fi, Bluetooth
Ethernet Ports	2	2	1
Power Consumption (Max)	40W	28W	21W
Power Supply	10–31.2 V DC	10–31.2 V DC	10–31.2 V DC
Fuse Rating	7.5A	5A	5A
Operating Temp. Range	-15°C to +55°C	-15°C to +55°C	-15°C to +55°C
Water Resistance	IPX6 / IPX7	IPX6 / IPX7	IPX6 / IPX7
Weight	4.65 kg (10.25 lb)	3.10 kg (6.83 lb)	1.41 kg (3.11 lb)
Dimensions (W×H×D)	437 × 256 × 98 mm	352 × 225 × 98 mm	287 × 166 × 90 mm
GPS Receiver	10Hz, 34 channels	10Hz, 34 channels	10Hz, 34 channels
Video Inputs	2 × Composite RCA	2 × Composite RCA	2 × Composite RCA
Mounting Options	Dash / Bracket	Dash / Bracket	Dash / Bracket
