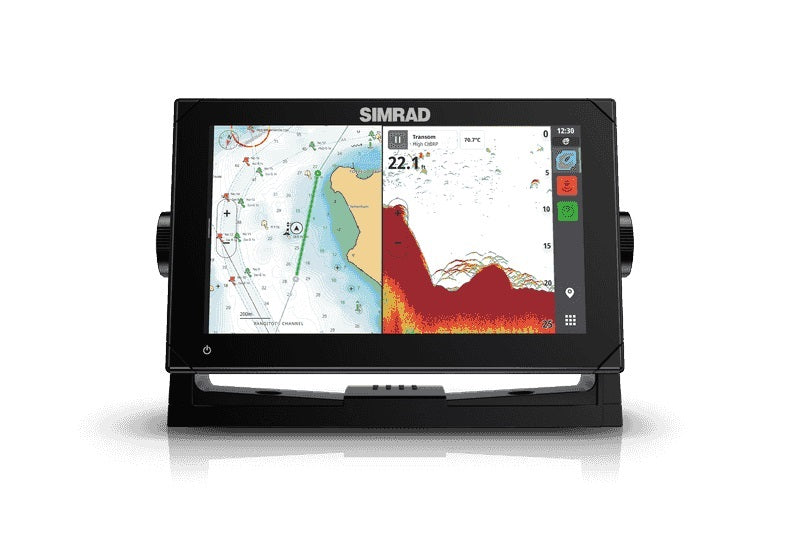

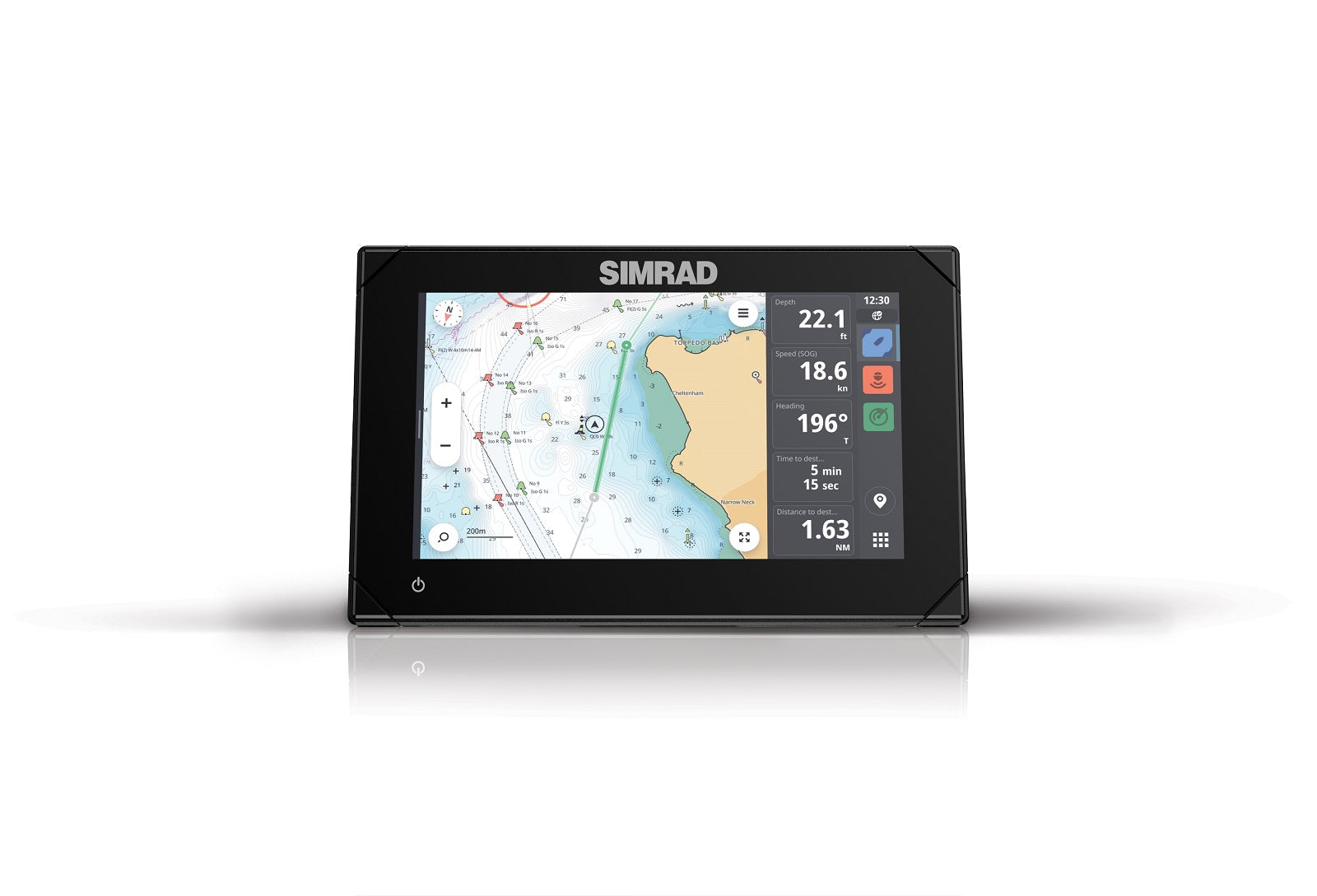

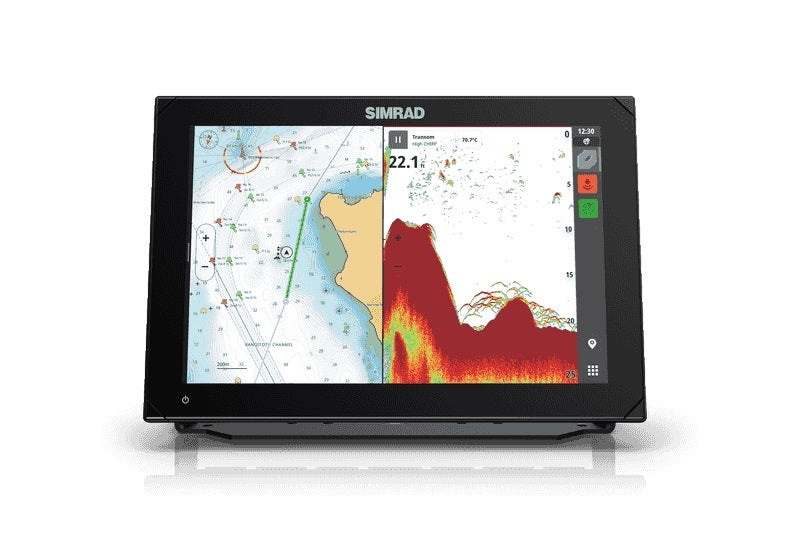

Simrad NSX30 MFD with Active Imaging Transducer.

$2,999.00

~~$2,999.00~~ $2,999.00

Sold out

Shipping calculated at checkout.

Low stock: 4 left

Screen Size: 12 inch 12 inch 9 inch 7 inch

Description

Simrad NSX Series — 12", 9" & 7" MFD (with Active Imaging™ 3-in-1 transducer + C-MAP DISCOVER X)

Model: 000-15367-001 | 000-15366-001 | 000-15365-001

Product description

The Simrad NSX family brings a modern, easy-to-use touchscreen interface, bright SolarMAX™ IPS displays and built-in sonar to a compact, expandable chartplotter/fishfinder platform. Each NSX model ships with an Active Imaging™ 3-in-1 transducer (CHIRP, SideScan, DownScan) and C-MAP DISCOVER™ X chart — so you get high-resolution structure and fish imaging plus advanced chart detail and autorouting right out of the box. NSX integrates simply with radar, autopilot, digital switching and NMEA2000 networks, while the Simrad App and Setup Wizard make configuration and trip planning straightforward.

Key features (common)

SolarMAX™ IPS touchscreen with wide viewing angles and polarized-sunglass readability
Active Imaging™ 3-in-1 transducer included (CHIRP + SideScan + DownScan) — 1 kW capable
FishReveal™ + easy sonar setup with Setup Wizard
Built-in 10 Hz GPS (internal) with 32 channels and ~3 m horizontal accuracy
Ethernet, Wi-Fi, Bluetooth, and NMEA2000 networking (1 × Micro-C)
Halo radar compatibility, Simrad App integration, digital switching support (Simrad COMMAND / C-Zone where applicable)
IPX6 / IPX7 waterproof; IEC damp heat and shock/vibration tested
C-MAP DISCOVER X and C-MAP REVEAL X chart support with autorouting and daily updates

Combined comparison table

Feature / Spec	NSX 3012 (Model 000-15367-001)	NSX 3009 (Model 000-15366-001)	NSX 3007 (Model 000-15365-001)
Display size & type	12" SolarMAX™ IPS touchscreen	9" SolarMAX™ IPS touchscreen	7" SolarMAX™ IPS touchscreen
Resolution	1280 × 800	1280 × 720	1024 × 600
Brightness	>1200 nits	>1200 nits	>1200 nits
Viewing angles	85° all around	85° all around	85° all around
Power (supply)	12 V DC (10–17 V)	12 V DC (10–17 V)	12 V DC (10–17 V)
Max power draw	29.7 W (≈2150 mA @13.8V)	18.8 W (≈1360 mA @13.8V)	11.5 W (≈830 mA @13.8V)
Recommended fuse	3 A	3 A	2 A
Internal GPS	Yes — 10 Hz, 32 channels	Yes — 10 Hz, 32 channels	Yes — 10 Hz, 32 channels
Sonar port / compatibility	1 × 9-pin Xsonic (1 kW) — CHIRP, HDI, Active Imaging	1 × 9-pin Xsonic (1 kW) — CHIRP, HDI, Active Imaging	1 × 9-pin Xsonic (1 kW) — CHIRP, HDI, Active Imaging
Network / Ethernet	1 × 5-pin Ethernet	1 × 5-pin Ethernet	1 × 5-pin Ethernet
NMEA2000	1 × Micro-C (1 LEN)	1 × Micro-C (1 LEN)	1 × Micro-C (1 LEN)
Wi-Fi / Bluetooth	802.11b/g/n; BT 4.0	802.11b/g/n; BT 4.0	802.11b/g/n; BT 4.0
USB / Storage	1 × USB-A (5 V, 1.5 A); 1 × MicroSD	1 × USB-A (5 V, 1.5 A); 1 × MicroSD	No USB; 1 × MicroSD
Charts included	C-MAP DISCOVER X (NA)	C-MAP DISCOVER X (NA)	C-MAP DISCOVER X (NA)
Charts supported	C-MAP Discover X / Reveal X	C-MAP Discover X / Reveal X	C-MAP Discover X / Reveal X
Radar compatibility	HALO dome & open array	HALO dome & open array	HALO dome & open array
Digital switching	Simrad COMMAND DDS (on release)	Simrad COMMAND DDS (on release)	Simrad COMMAND DDS (on release)
Mounting	Bracket (supplied), panel or flush mount	Bracket (supplied), panel or flush	Bracket (supplied), panel or flush
Dimensions (with bracket)	W: 319.5 × H: 215.1 × D: 86.0 mm	W: 263.0 × H: 172.6 × D: 80.6 mm	W: 220 × H: 145.9 × D: 79.5 mm
Waterproof / Env.	IPX6 / IPX7; −15°C to +55°C	IPX6 / IPX7; −15°C to +55°C	IPX6 / IPX7; −15°C to +55°C
Warranty	(standard) — included	(standard) — included	(standard) — included
