Simrad OP Autopilot Wired Remotes.

Simrad OP50 and OP12 Autopilot Controllers

---

Product Description

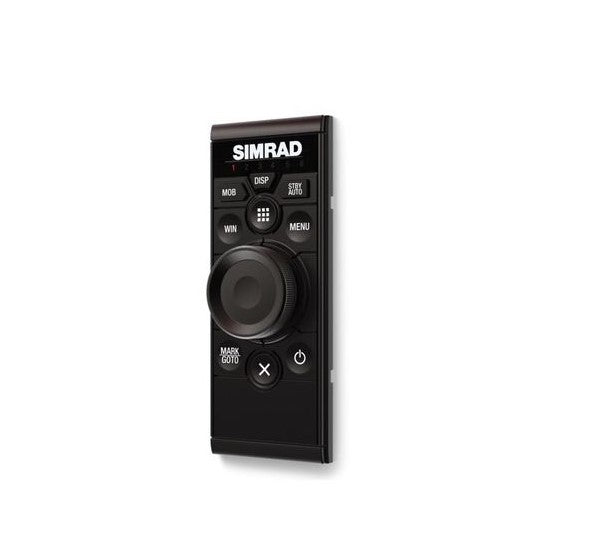

The Simrad OP50 and OP12 are dedicated remote control units designed to complement and enhance the operation of Simrad multifunction displays and autopilot systems. The OP50 is a wired remote control optimized for portrait mounting, capable of managing up to six multifunction displays including NSS evo2/3, NSO evo2/3, and GO7 series. It features an aluminum rotary dial with built-in cursor control for precise menu navigation, chart zoom, and cursor placement, along with a high-volume alarm output for critical notifications.

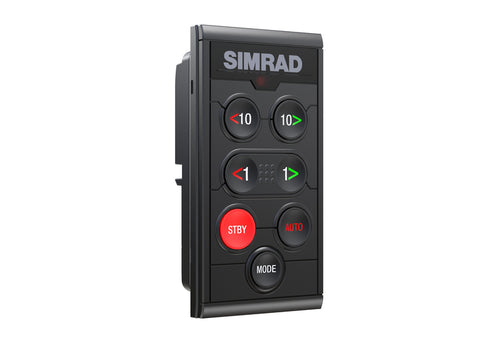

The OP12 is a compact, pushbutton wired remote specifically designed for intuitive autopilot control, including mode selection, course adjustment, and power steering. It offers a low-profile surface mount design suitable for use in demanding marine environments and is compatible with various Simrad autopilot computers such as AC12, AC42, NAC-2, and NAC-3. It can be combined with the IS42 Color Instrument Display for comprehensive autopilot functionality. Both controllers offer robust control options for smooth maneuvering and enhanced vessel control.

---

Model:

---

Key Features

• OP50 supports control of up to six Simrad MFDs (NSS evo2/3, NSO evo2/3, GO7)

• Aluminum rotary dial with multi-axis controls and cursor functions (OP50)

• High volume alarm output (OP50)

• Pushbutton interface for easy autopilot mode switching and course adjustment (OP12)

• Low-profile glass helm design in OP12 with 8 mm surface mount

• Compatibility with various Simrad autopilot computers and MFDs

• IPX7 waterproof rating for OP12 remote, designed for all-weather use

• Efficient, low power consumption

• Single NMEA 2000 connection for each unit

---

Comparison Table

---

What’s in the Box

OP50 Wired Remote Control:

• OP50 Portrait Remote

• N2K-T-RD Micro-C T-connector

• OP50/ZC2 Suncover

• OP50/ZC2 Dash Kit (Gasket Bezel Screw)

OP12 Autopilot Controller:

• OP12 Autopilot Controller

• N2K-T-RD Network T-Connector

• N2KEXT-2RD 2ft Network Extension Cable

• Suncover for Triton Pilot/OP12
