Simrad Autopilot ORB Hose Fitting Kits for MKII Pumps.

Simrad Autopilot ORB Hose Fitting Kits for MKII Pumps

Product Description

Simrad's Autopilot ORB Hose Fitting Kits simplify the installation of SteadySteer compatible hydraulic autopilot systems by providing factory-fitted hose assemblies designed for ORB steering systems. These kits significantly reduce the risk of installation errors caused by field-terminated hydraulic hoses, ensuring reliable and safe hydraulic steering performance. The kits support manual override functionality through SteadySteer, allowing seamless transitions between manual steering and autopilot control without the need for disengaging or pressing buttons.

Model:

• Model: 000-15949-001 — ORB Hose Fitting Kit for MKII Pumps 2, 3, 4 & 5 with SteadySteer

• Model: 000-15942-001 — ORB Hose Fitting Kit for MKII Pumps 1, 2, 3, 4 & 5

Key Features

• Factory-fitted hose assemblies for ORB steering systems to reduce errors and improve reliability

• SteadySteer functionality allowing manual steering override with automatic autopilot reengagement

• Dash-mount button for easy Auto/Standby autopilot activation (model 000-15949-001)

• Compatible with a wide range of Simrad autopilot computers: NAC-2, NAC-3, NAC-D, AP44, IS42, AP48, and Simrad MFDs

• Supports pump models Pump-1, Pump-2, Pump-3, Pump-4, and Pump-5 (part numbers ending with -002 and legacy RPU pumps)

• Provides intuitive, seamless control without keypress or alarms

Comparison Table

What’s in the Box

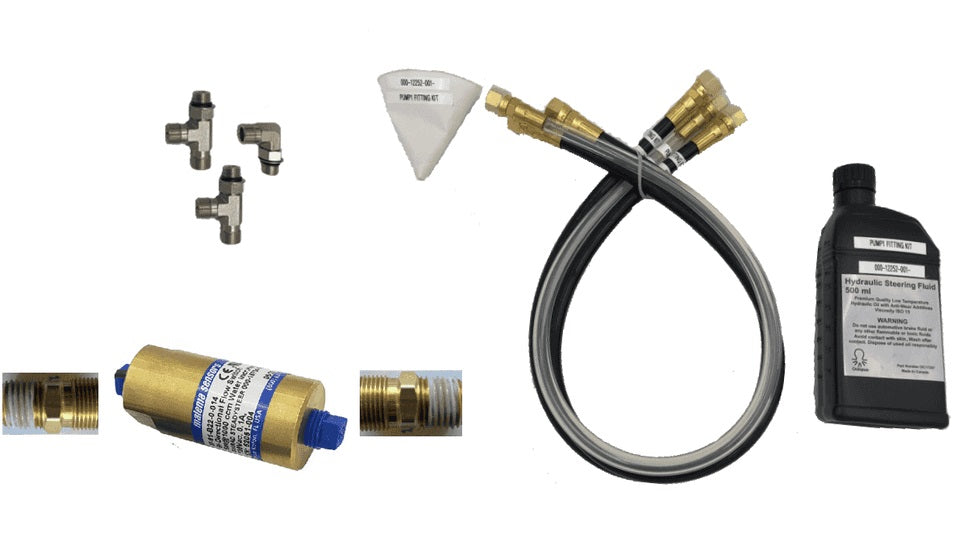

Model 000-15949-001:

• 2 x T Connectors: 9/16-18 UNF < ORB-05M > 9/16-18 UNF

• 2 x Hoses (5/16" dia., Black): 1500 PSI max, 810 mm (31.9") and 360 mm (14.2"), 9/16-18 UNF connections

• 1 x Hose (5/16" dia., Black): 2800 PSI max, 830 mm (32.7") 9/16-18 ORFS to 9/16-18 ORFS

• 1 x Return Hose (5/16" dia., Black): 2250 PSI max, 830 mm (32.7") 11/16-16 ORFS

• 2 x Stainless Steel T Connectors: 9/16-18 ORFS

• 1 x Brass T Connector: 11/16-16 < 9/16-18 > 11/16-16 ORFS

• 1 x SteadySteer Flow Sensor

• 2 x ¼ NPT to 9/16-18 UNF Adaptors

• 1 x Bottle of Hydraulic Fluid

• 1 x Filter Funnel

• 1 x Installation Manual (PN:988-12851-001)

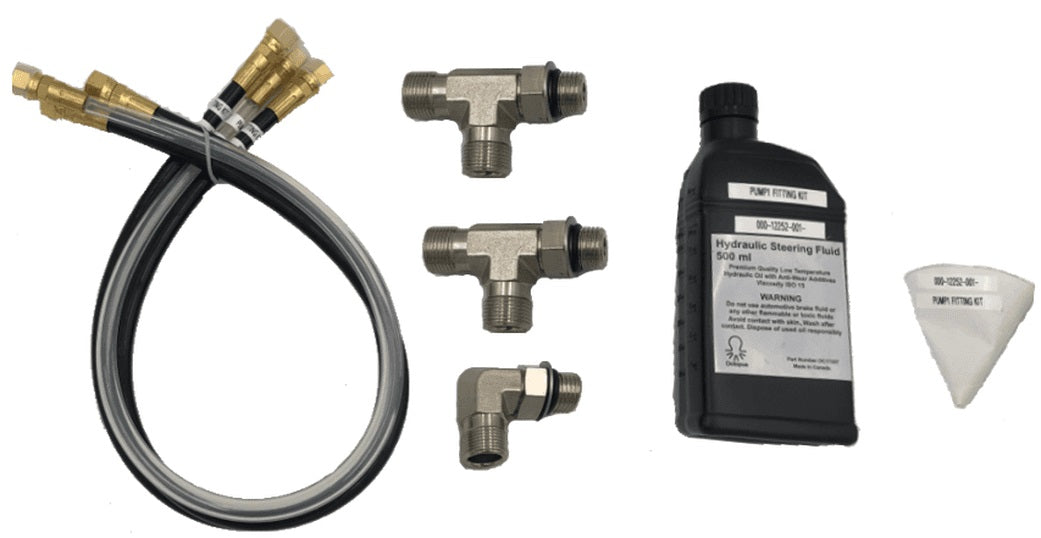

Model 000-15942-001:

• 2 x T Connectors ORB-05M > 9/16-24 UNF > 9/16-24 UNF

• 1 x Right angle connector ORB-05M > 9/16-24 UNF

• 2 x Hoses 5/16" dia. (Black), 1500 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-24 UNF

• 1 x Hose 5/16" dia. (Clear), 65 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-25 UNF

• 1 x Bottle of Hydraulic Fluid

• 1 x Filter Funnel
