Simrad RF40 Rotary Rudder Reference & RF25N NMEA2000 Output

Product Description

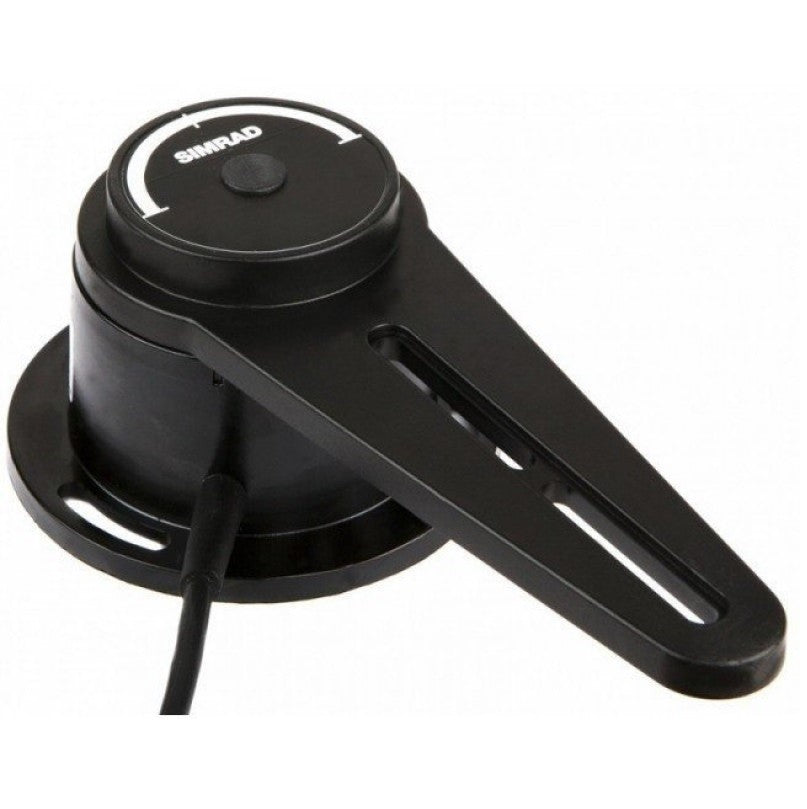

The Simrad RF40 is a medium-duty rotary rudder reference unit designed for precise rudder angle measurement, suitable for NAC-1 and NAC-2 autopilot systems. It provides a +/-120-degree rudder angle measurement, enabling smooth and accurate steering. The RF40 offers a plug-and-play connection with NAC-1 and NAC-2 autopilot computers, featuring an attached 15-meter (49-foot) cable with a removable connector for easy installation and application flexibility. Its extended cable and direct connection make it an excellent alternative to NMEA 2000® sensors, especially where extending a vessel’s NMEA 2000® network to the rudder is impractical.

The RF25N is a high-precision, medium-duty rudder feedback unit with NMEA 2000® output. It measures rudder angle within +/- 120 degrees, with an accuracy of approximately +/- 0.5 degrees. It comes with a 5.5-meter Micro-C cable for direct connection to industry-standard Micro-C systems, supporting straightforward installation in various vessels.

Model Numbers

• 000-14439-001 — RF40 Rotary Rudder Reference for NAC-1 & NAC-2

• 000-10756-001 — RF25N Rudder Feedback Unit with NMEA2000 Output

Key Features

• Accurate rudder angle measurement up to +/- 120°

• Plug-and-play connection to NAC-1 and NAC-2 autopilot systems (RF40)

• High-precision +/- 0.5° measurement (RF25N)

• RF40 features a 15-meter (49-foot) attached cable, removable connector for flexible use

• RF25N with Micro-C interface supports industry-standard micro connections

• Suitable for direct connection to autopilot systems, without requiring NMEA 2000® network extension

• Rugged, marine-grade construction designed for durability in harsh environments

Comparison Table

What’s in the Box

• RF40 Rotary Rudder Reference or RF25N with 5.5 m Micro-C cable

• Linkage (RF25N) or plug-and-play connector (RF40) components
