Simrad RS100- Black Box VHF And AIS.

Simrad RS-100-B Black Box VHF & AIS with GPS-500 & RS100 Black Box VHF System

---

Product Description

The Simrad RS-100-B is a modular VHF marine communication system integrated with Class-B AIS transmitter and receiver for enhanced safety and situational awareness. The system includes an external dedicated GPS-500 receiver ensuring precise AIS transmission. It supports up to eight handsets (four wired and four wireless) and up to four external speakers, providing seamless onboard communication. The unit features configurable external speakers with volume offsetting and groups handset backlight settings with the NMEA 2000 backlight system for synchronous control with MFDs.

Conversely, the RS100 Black Box VHF system offers similar modular expansion but without the integrated AIS transmitter; however, it includes an integrated GPS receiver and supports AIS functionality with an optional GPS-500. Both systems support NMEA 0183 and NMEA 2000 connectivity and include advanced features like Track Buddy for monitoring up to five vessels, 60-second audio rewind, and multi-channel watch for safety.

---

Model Numbers

• 000-15641-001 — RS-100-B Black Box VHF & AIS with GPS-500

• 000-15643-001 — RS100 Black Box VHF System

---

Key Features

• Integrated Class-B AIS transmitter and receiver (RS-100-B only)

• Dedicated GPS-500 receiver for AIS functionality (RS-100-B included; optional for RS100)

• Class D DSC approved VHF radio capability

• Up to four wireless and four wired handsets supported

• Up to four external speaker connections with individual volume control

• NMEA 0183® and NMEA 2000® connectivity

• 60-second audio rewind for call reviews

• Configurable backlight synced with NMEA 2000 network for MFDs and VHF radios

• Track Buddy feature to monitor up to five vessels by MMSI

• Clear audio with handset station naming and alphanumeric keypad

• Modular expansion supporting onboard intercom functionality

• Dual or tri-channel watch for monitoring emergency channels

---

Comparison Table

---

What’s in the Box

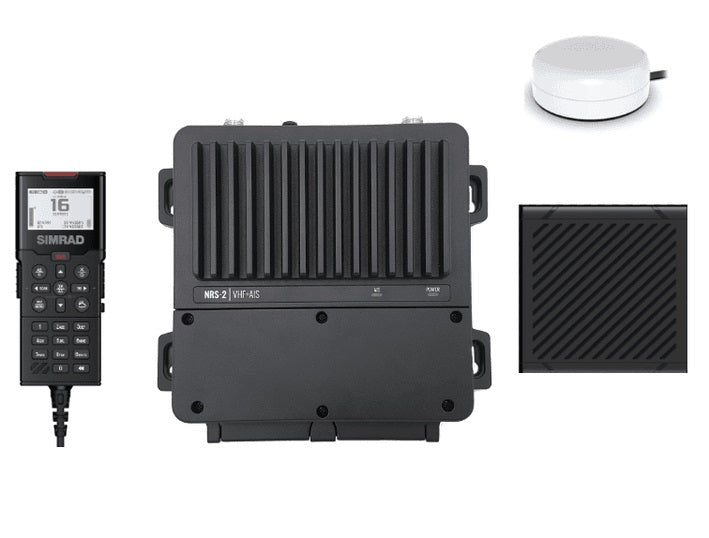

For Model 000-15641-001 (RS-100-B):

• NRS-2 Black Box unit

• HS-100 Wired Handset

• SP-100 Speaker

• GS-500 GPS Antenna

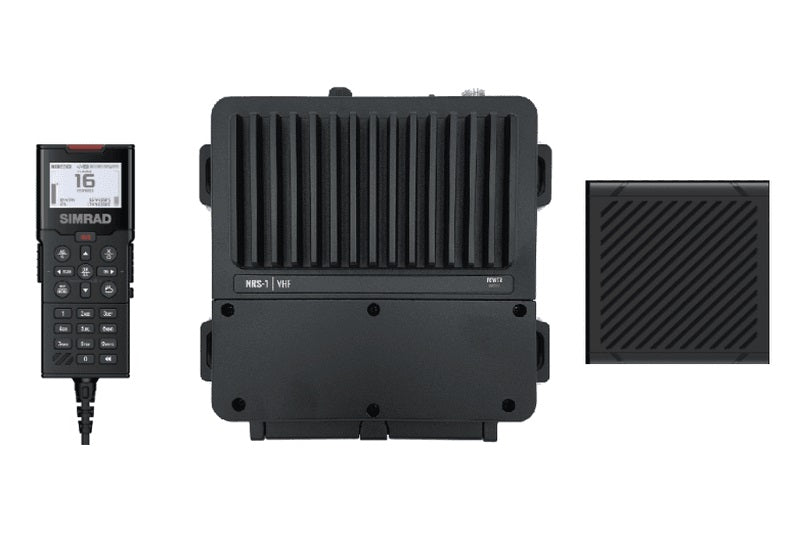

For Model 000-15643-001 (RS100):

• NRS-1 VHF Black Box unit

• HS-100 Wired Handset

• SP-100 Speaker
