ACR URP-102 Point Pad Controller Kits.

ACR URP-102 Point Pad Controller Kits

Models:

• URP-102 Point Pad Basic Kit (Model 1928.3)

• URP-102 Point Pad Secondary Station Installation Kit (Model 9282.3)

Product Description

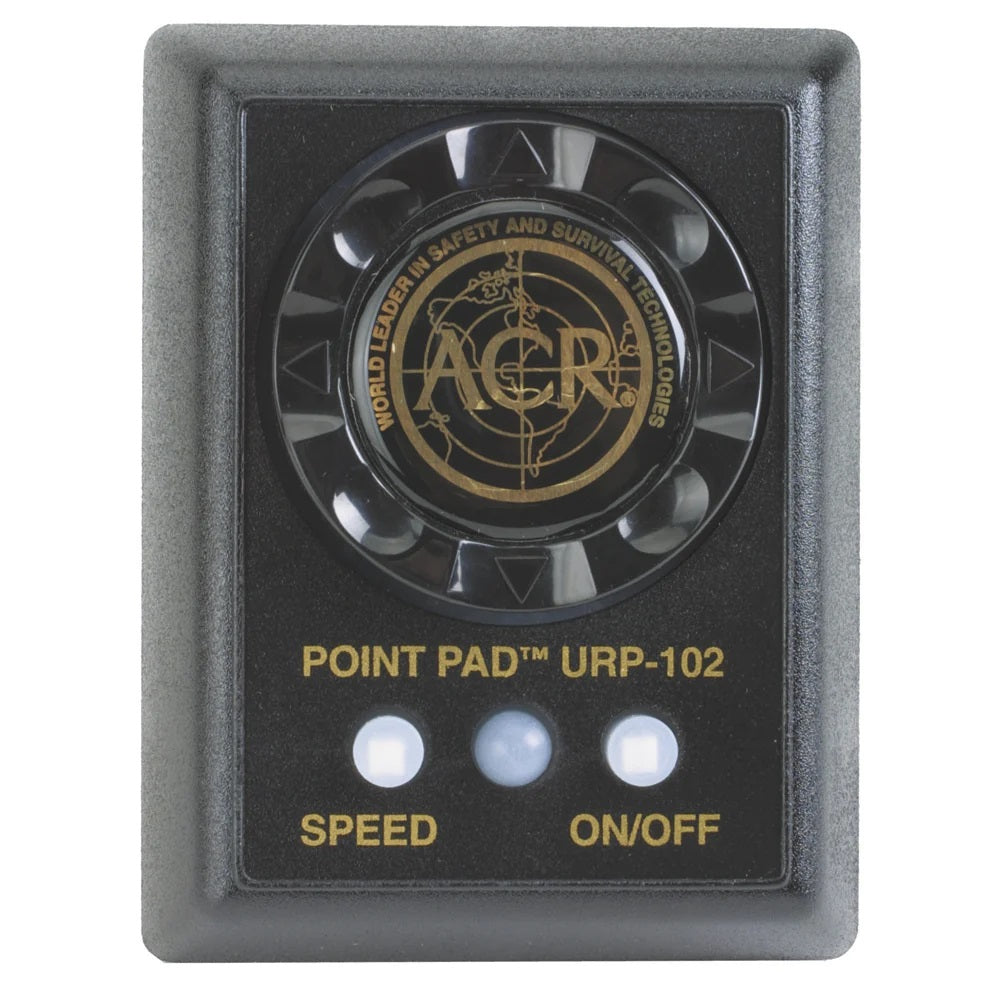

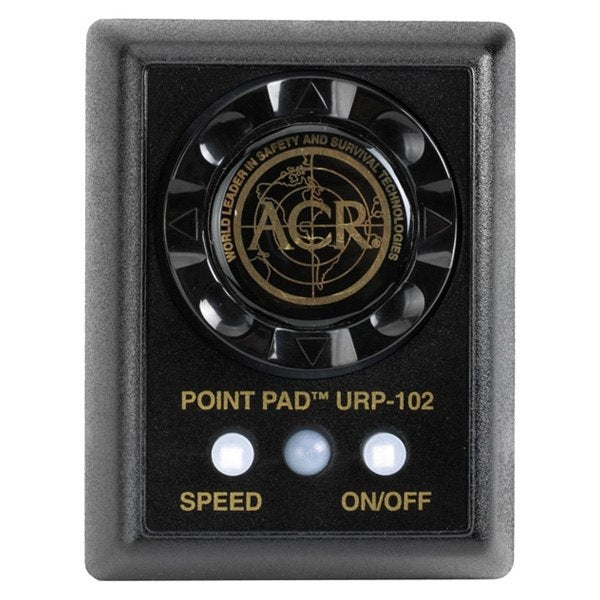

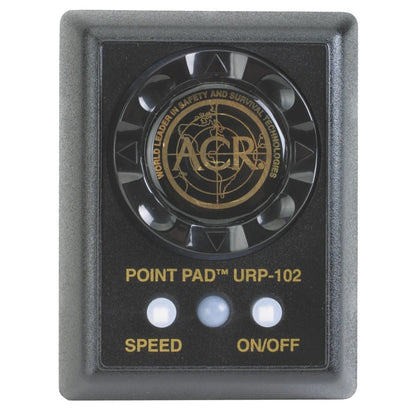

The ACR URP-102 Point Pad provides precise fingertip control for ACR RCL-50 and RCL-100 series searchlights, allowing On/Off power switching and toggle between high and low light rotation speeds. The controller offers flexible mounting with both surface and flush mount options. The URP-102 can act as a replacement control or be added as a secondary or additional station to expand control points on a vessel. It is designed to be used with the URC-101, URC-102, or URC-103 control boxes (required for complete functionality) but is not compatible with early URC-100 controllers.

The Basic Kit (Model 1928.3) includes the Point Pad controller and documentation only, without coaxial cables or connectors, targeting installations where cabling is provided separately. The Secondary Station Kit (Model 9282.3) is a complete installation solution including Point Pad, a 2-way splitter, four F-connectors, and 15 feet of coaxial cable for immediate installation.

Key Features

• Precise fingertip On/Off and light rotation speed control

• Surface or flush mount installation options

• Compatible with 12 or 24 V DC searchlight systems

• Suitable for new installations or expanding existing control stations

• Backward compatible with RCL-100/50 searchlights and URC-101, URC-102, URC-103 control boxes

• Not compatible with early URC-100 controllers

• Supports XRCiZ™ auto exercise feature activation/deactivation via long press

Comparison Table

What’s in the Box

URP-102 Basic Kit (Model 1928.3)

• URP-102 Point Pad controller

• Documentation

URP-102 Secondary Station Kit (Model 9282.3)

• URP-102 Point Pad controller

• 2-way splitter

• 4 x F-connectors

• 15 feet coaxial cable
