ACR RCL85 LED Spotlight With Wireless Hand Remote 2/24v.
Couldn't load pickup availability
Description
Description
ACR RCL85 LED Spotlight with Wireless Hand Remote
Models:
-

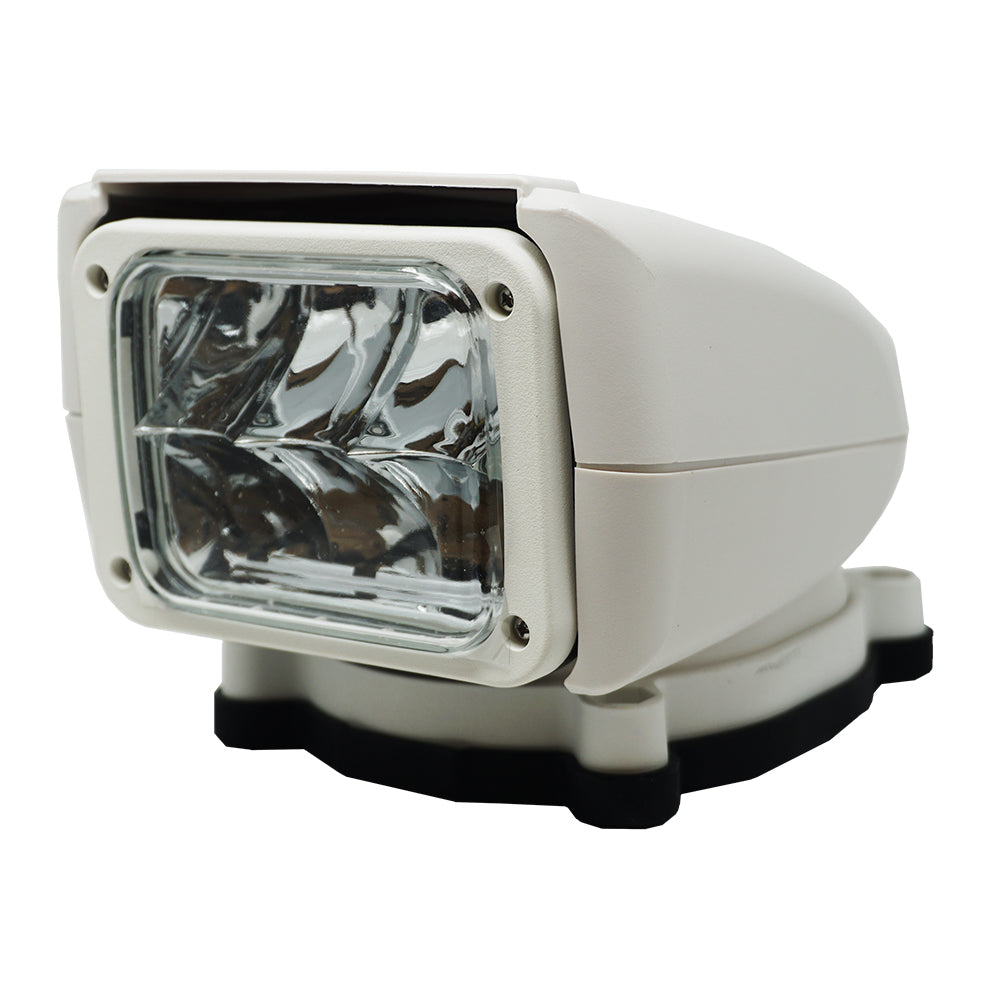

RCL85 White LED Spotlight (Model 1956)
-

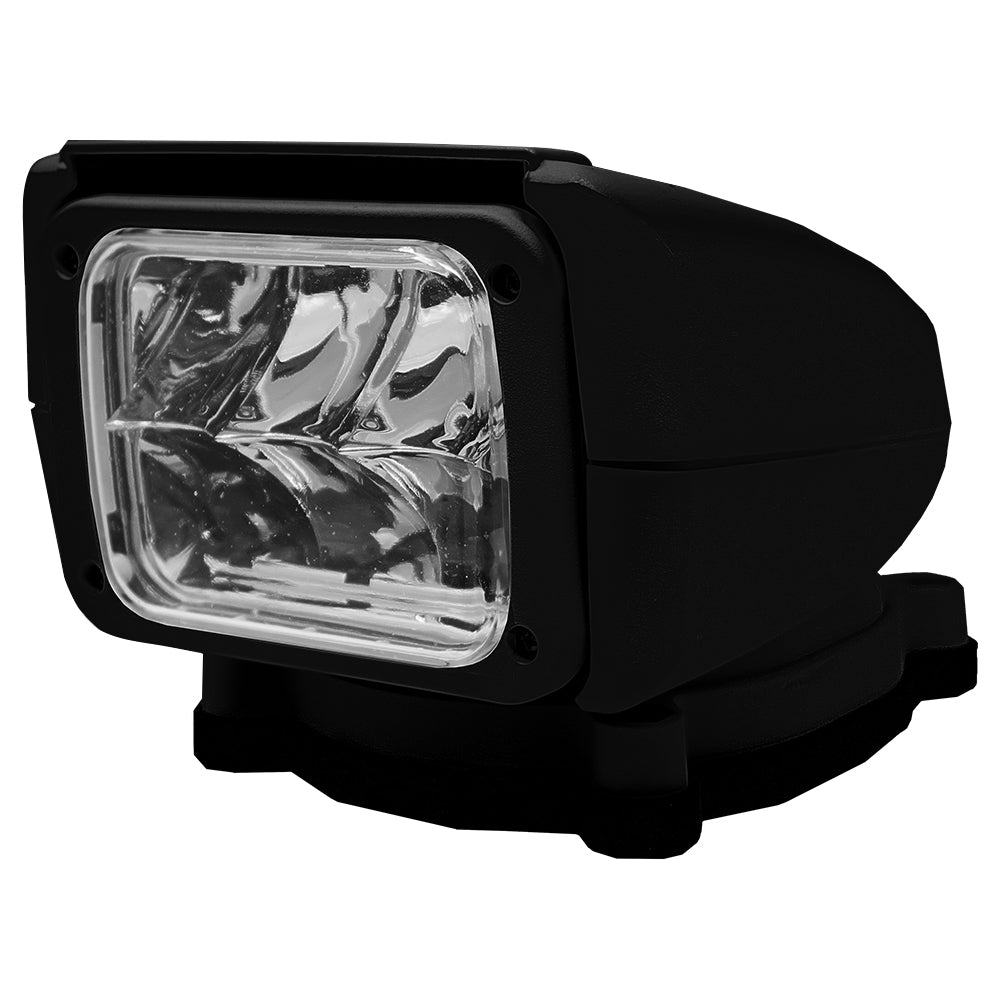

RCL85 Black LED Spotlight (Model 1957)
Product Description
The ACR RCL-85 LED Spotlight features a powerful 6 High Flux OSRAM LED array delivering 240,000 candela and a maximum beam distance of 3,215 feet (980 meters), making it ideal for small to medium recreational powerboats and light commercial vessels. It offers wireless handheld remote control for convenient operation with 350° rotation and 90° tilt. The spotlight is designed for simple installation requiring only 12-24V power connection with all controls wireless. Its rugged Acrylonitrile Styrene Acrylate (ASA) housing and lens are sealed for UV and weather resistance, and the electronics are housed in an IP68 water-resistant light head.
The light provides an 8° beam angle and supports a strobe function for signaling assistance. Power consumption ranges from 2 amps at 12V to 1.1 amps at 24V. The LEDs have a long life of up to 50,000 hours. Its compact size and lightweight construction make it an efficient, cost-effective solution.
Comparison Table
| Feature | RCL85 White (1956) | RCL85 Black (1957) |
|---|---|---|
| LED Array | 6 High Flux OSRAM LEDs (30W total) | 6 High Flux OSRAM LEDs (30W total) |
| Peak Candela | 240,000 | 240,000 |
| Max Beam Distance | 3,215 feet (980 meters) | 3,215 feet (980 meters) |
| Beam Angle | 8° Spot | 8° Spot |
| Elevation Angle | 90° Tilt | 90° Tilt |
| Rotation | 350° | 350° |
| Rotation Speed | 18° per second | 18° per second |
| Elevation Speed | 13° per second | 13° per second |
| Operation | Wireless handheld remote control (433.92 MHz) | Wireless handheld remote control (433.92 MHz) |
| Housing Material | Acrylonitrile Styrene Acrylate (ASA) | Acrylonitrile Styrene Acrylate (ASA) |
| Weather Resistance | UV resistant, IP68-rated water-resistant LEDs | UV resistant, IP68-rated water-resistant LEDs |
| Power Requirements | 12 or 24 V DC | 12 or 24 V DC |
| Power Draw | 2A @ 12V, 1.1A @ 24V | 2A @ 12V, 1.1A @ 24V |
| Size (H x W x D) | 5.5 x 6.3 x 7.7 inches (14 x 16 x 19.5 cm) | 5.5 x 6.3 x 7.7 inches (14 x 16 x 19.5 cm) |
| Weight | 3.1 lbs (1.34 kg) (searchlight only) | 3.1 lbs (1.34 kg) (searchlight only) |
| Footprint Diameter | 5.03" x 4.09" (12.8 x 10.4 cm) | 5.03" x 4.09" (12.8 x 10.4 cm) |
| Warranty | 2 Years | 2 Years |
What’s in the Box
-
RCL-85 LED Spotlight (White or Black)
-
Wireless Handheld Remote Control (433.92 MHz)
-
User manual
