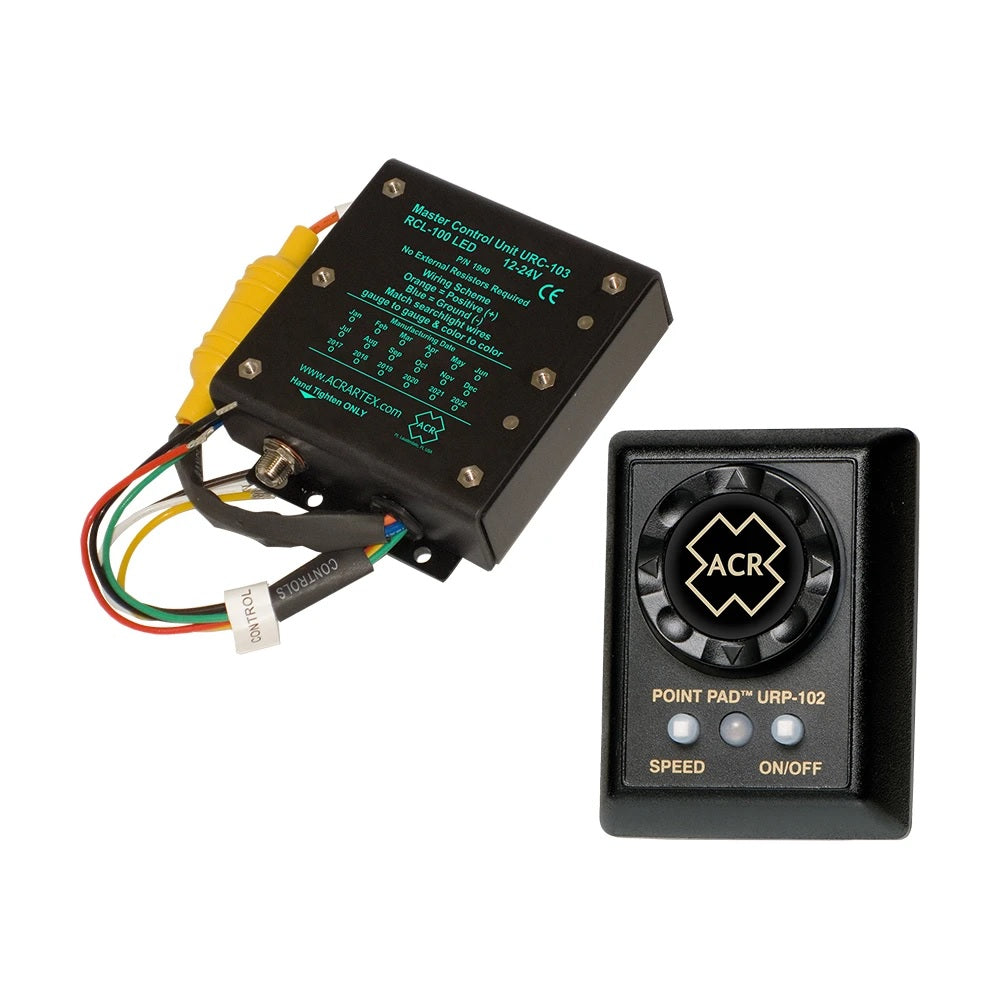

ACR Universal Remote Control For RCL100 LED

Product Description

The ACR Universal Remote Control Kit enables precise fingertip operation of the RCL-100 LED remote-controlled searchlight from anywhere on a vessel.

Product Overview

Designed for marine environments, this kit provides accurate control over the RCL-100 LED searchlight's 360° continuous rotation and beam elevation, ideal for navigation, search, and safety during nighttime boating or low-visibility conditions on recreational and commercial vessels.

Key Specifications

• Compatible exclusively with ACR RCL-100 LED searchlight

• Supports surface or flush mounting for flexible installation

• Allows control from multiple locations with up to three Point Pad units

• Includes 15-foot coaxial cable for extended reach

Technical Specifications

• Master controller: URC-103 for primary operation

• Secondary controller: URP-102 Point Pad for intuitive fingertip control of rotation (fast: 31°/sec, slow: 20°/sec) and elevation (2.8°/sec)

• Connectors and wiring optimized for 12/24V DC marine systems

• Enables XRCiZ self-maintenance feature activation on compatible searchlights

What's in the Box

• Master controller (URC-103)

• Point Pad controller (URP-102)

• Connectors

• Coaxial cable (15 ft)

• Instruction manual
