Airmar B175C-0-H CHIRP 1kW Transducer – 0° Tilt for Garmin.

Description:

Model Numbers:

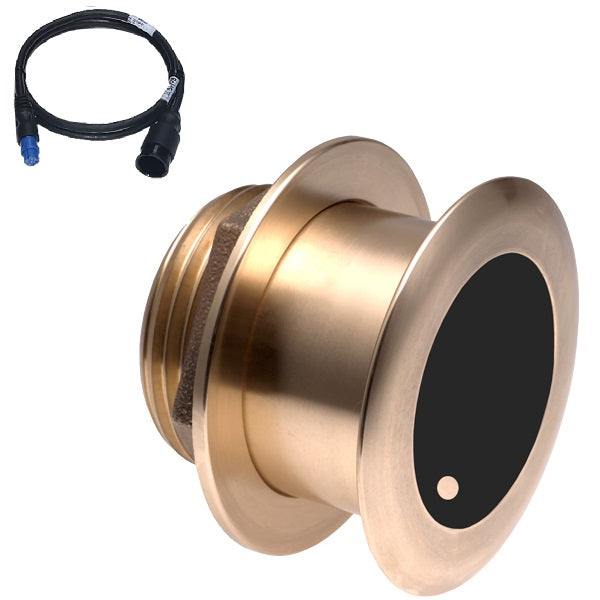

• 8-Pin Garmin: B175C-0-H-8G

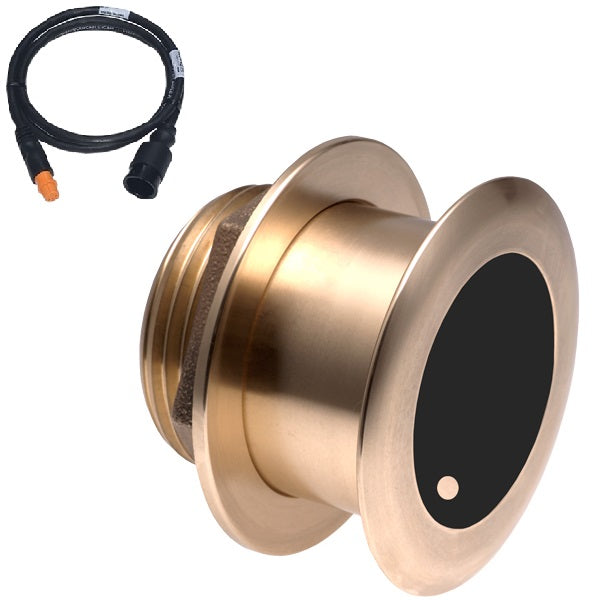

• 12-Pin Garmin: B175C-0-H-12G

Product Overview:
The Airmar B175C-0-H delivers high-frequency CHIRP sonar performance in a low-profile, flush-mount transducer ideal for fiberglass or wood-hull vessels. With a 0° tilt and internal ceramic elements permanently angled to match hull deadrise, it eliminates the need for an external fairing while ensuring maximum beam efficiency.

This transducer CHIRPs across the 130–210 kHz range for crisp, high-resolution images, and is best suited for shallow to mid-depth fishing (up to 1,000 ft). It covers the popular 200 kHz frequency while offering a broader bandwidth for detecting smaller targets with impressive detail. Choose between Garmin 8-pin or 12-pin MMC cables for compatibility with your MFD.

Key Features:

• 1kW CHIRP high-frequency transducer (130–210 kHz)

• 0° tilt for hulls with 0°–7° deadrise

• Dual Garmin connector options: 8-pin or 12-pin

• Max depth: 1,000 ft

• Beamwidth: 10° to 6°

• Flush-mount bronze housing for fiberglass/wood hulls

• Depth & fast-response temperature sensor

• No fairing block required

What's Included:

• Airmar B175C-0-H-MM Transducer

• Mix & Match Cable (choose 8-pin or 12-pin Garmin connector)
