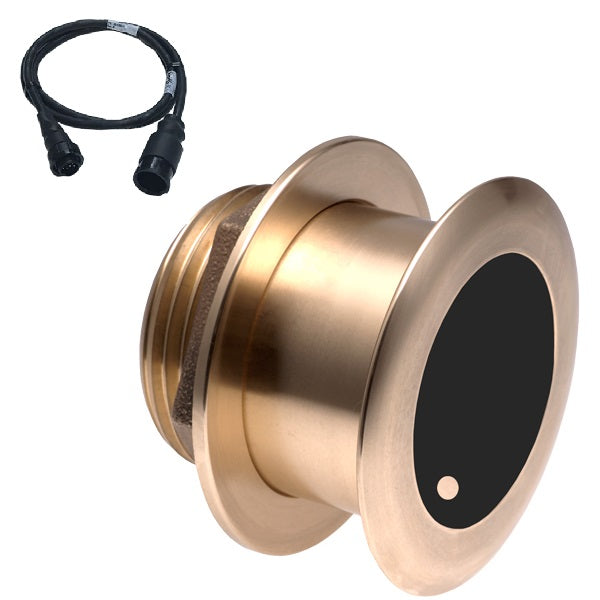

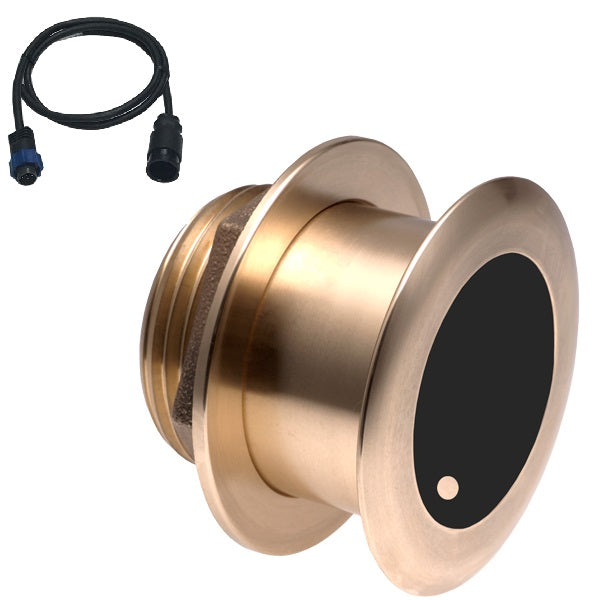

Airmar B175C-0-H CHIRP 1kW Transducer – 0° Tilt for Navico.

Airmar B175C-0-H CHIRP 1kW Transducer – 0° Tilt with Navico 9-Pin or 7-Pin Connector

Description:

Model Numbers:

• Navico 9-Pin: B175C-0-H-9N

• Navico 7-Pin: B175C-0-H-BL

Product Overview:
The Airmar B175C-0-H delivers high-frequency CHIRP sonar performance for Navico systems in a compact, flush-mount package. Featuring a 0° tilt for boats with 0°–7° hull deadrise, the internal ceramic elements are precisely angled to provide a direct downward beam — no fairing block required.

Covering a CHIRP range of 130–210 kHz, this transducer excels at detecting structure and small targets in depths up to 1,000 ft. Its wide 80 kHz bandwidth includes the commonly used 200 kHz frequency, making it an ideal fit for serious anglers who want clarity and detail. Available with either a 9-pin or 7-pin Mix-N-Match cable for Navico compatibility.

Key Features:

• 1kW high-frequency CHIRP (130–210 kHz)

• 0° tilt for hulls with 0°–7° deadrise

• Max depth: 1,000 ft

• Beamwidth: 10° to 6°

• Flush-mount bronze housing — safe for trailers

• Internal tilt eliminates need for fairing

• For fiberglass or wood hulls

• Compatible with Navico (choose 9-pin or 7-pin)

• Depth & fast-response temperature sensor

What’s in the Box:

• Airmar B175C-0-H-MM Transducer

• Mix-N-Match Cable (Navico 9-Pin or 7-Pin)

Variants (by Connector Type):
