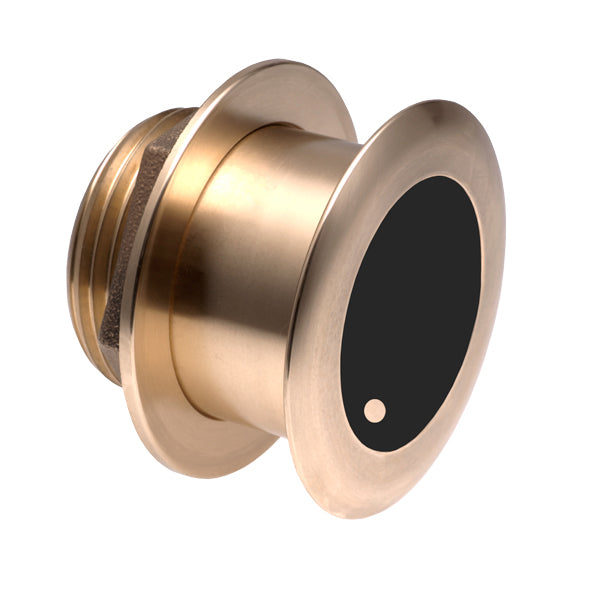

Airmar B175C- 0d Tilt With No Connector MM Cable Series.

Airmar B175 0° CHIRP Bronze Thru Hull Transducers with Bare Wire Mix-N-Match Cable

The Airmar B175 series comprises high-performance CHIRP-ready bronze thru-hull transducers designed for boats 8 m (25’) and larger with fiberglass or wood hulls. The transducers feature ceramic elements permanently tilted inside the housing to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down for maximum echo returns without the need for a fairing. Flush/tilted transducers mount through a hole drilled in any fiberglass, metal, or wooden hull with a flush exterior.

Model Numbers

• B175C-0-H-0 – High CHIRP, 0° tilt, 150–210 kHz, 10° to 6° beamwidth, max depth 1000 ft

• B175C-0-M-0 – Medium CHIRP, 0° tilt, 85–135 kHz, 24° to 16° beamwidth, max depth 1000 ft

• B175C-0-HW-0 – High Wide-Beam CHIRP, 0° tilt, 150–250 kHz, constant 25° beamwidth, max depth 1000 ft

Key Features

• Depth and fast-response water-temperature sensors

• High and medium-frequency CHIRP bands providing detailed fish and bottom detection

• Wide beam wide-band option with a constant 25° beam across entire frequency range

• Durable bronze housing with urethane acoustic window for long term performance

• Ceramic element tilt compensates for hull deadrise from 0° to 7°

• Flush-mounted design with no fairing needed

• Compatible with Raymarine systems via bare wire Mix-N-Match cable

• Additional cables required: A80328 for single transducer, A102146 for paired transducers

Model Comparison Table

What’s in the Box

• Airmar B175C Transducer (model dependent)

• MMC-0 Bare Wire Mix-N-Match Cable
