Description:
Model Numbers:
-
Furuno 10-Pin: B175C-0-HW-10F
-
Furuno 12-Pin: B175C-0-HW-12F
Product Overview:

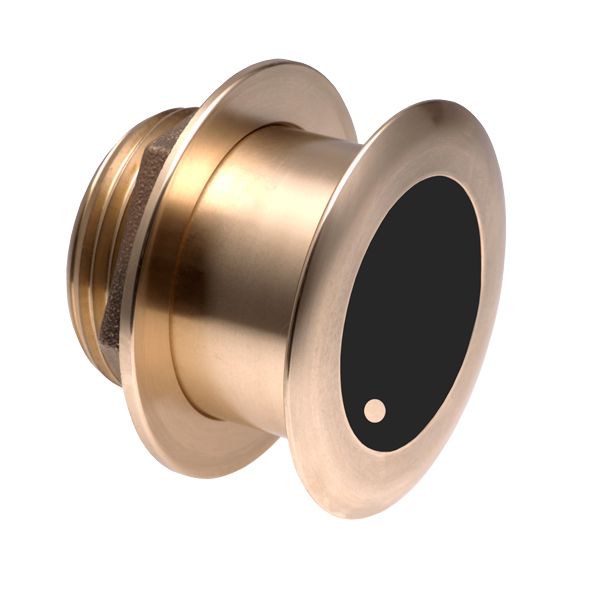

Maximize your sonar coverage with the Airmar B175C-0-HW, a 1kW wide-beam CHIRP transducer offering high-frequency clarity and exceptional under-boat range. With a constant 25° beamwidth from 150 to 250 kHz, this wide-beam model delivers nearly twice the coverage of traditional CHIRP transducers—making it ideal for detecting bait and game fish in the upper water column and along structure.
Built with a 0° tilt, the internal ceramic elements are angled for vertical alignment on boats with flat or near-flat deadrise (0°–7°), eliminating the need for a fairing block. Perfect for fiberglass or wood-hull vessels 25 ft and up, the B175C-0-HW works with Furuno CHIRP-ready displays using your choice of a 10-pin or 12-pin Mix-N-Match cable.
Key Features:
-
CHIRP high-frequency 1kW transducer (150–250 kHz)
-
Constant 25° beamwidth across entire frequency range
-
0° tilt – ideal for flat hulls (0°–7° deadrise)
-
Exceptional upper-column and structure target clarity
-
Twice the under-boat coverage of standard CHIRP
-
Max depth: up to 1,000 ft (best for shallower fishing)
-
Fast-response depth and temperature sensor
-
Flush-mount bronze housing — trailer safe
-
For fiberglass or wood hulls
-
Includes Furuno 10-pin or 12-pin Mix-N-Match cable
What’s in the Box:
-
Airmar B175C-0-HW-MM Transducer
-
MMC-10F or MMC-12F Mix-N-Match Cable
Variants (by Connector Type):
| Connector Type | Model Number | Included Cable |
|---|---|---|
| Furuno 10-Pin | B175C-0-HW-10F | MMC-10F |
| Furuno 12-Pin | B175C-0-HW-12F | MMC-12F |
