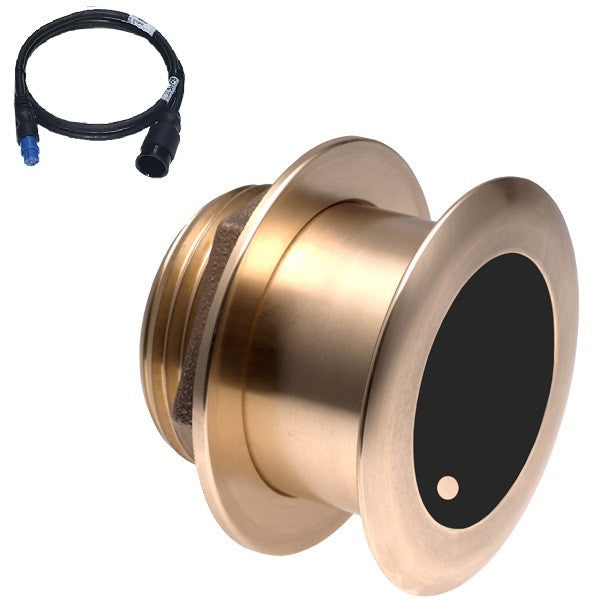

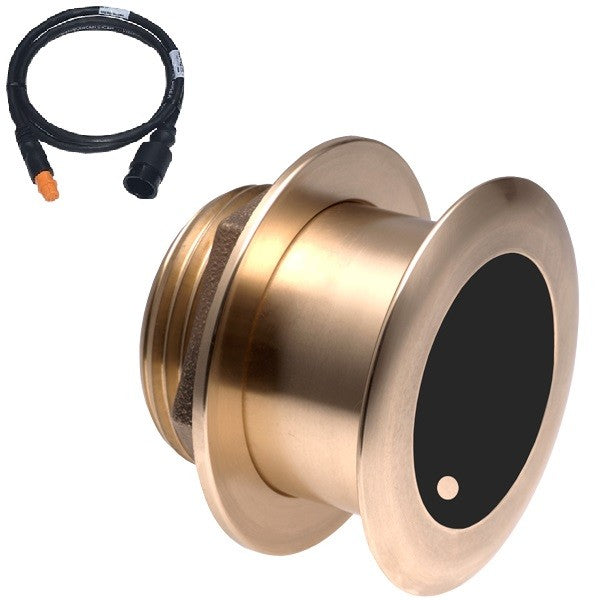

Airmar B175C-0-HW CHIRP 1kW Wide-Beam Transducer – 0° Tilt with Garmin Connectors.

Airmar B175C-0-HW CHIRP 1kW Wide-Beam Transducer – 0° Tilt with Garmin 8-Pin or 12-Pin Connector

Model Numbers:

• Garmin 8-Pin: B175C-0-HW-8G

• Garmin 12-Pin: B175C-0-HW-12G

Product Overview:
Widen your sonar view with the Airmar B175C-0-HW wide-beam CHIRP transducer. Designed for high-resolution imaging and exceptional under-boat coverage, this 1kW transducer CHIRPs from 150 to 250 kHz with a constant 25° beamwidth — more than twice the coverage of traditional high-frequency models.

Ideal for shallow and mid-depth fishing (up to 1,000 ft), the 0° tilt is best for hulls with 0°–7° deadrise. The internal ceramic array is pre-angled to send a perfectly vertical beam, eliminating the need for a fairing block. Choose from Garmin 8-pin or 12-pin Mix-N-Match cables for compatibility with your CHIRP-ready Garmin display.

Key Features:

• 1kW CHIRP wide-beam transducer (150–250 kHz)

• Constant 25° beamwidth across full frequency range

• Max depth: up to 1,000 ft

• 0° tilt for flat hulls (0°–7° deadrise)

• Enhanced upper-column and side-structure detection

• Ideal for fiberglass and wood hulls (25 ft and up)

• Flush-mount design – no fairing block required

• Fast-response depth and water temperature sensor

• Includes Garmin 8-pin or 12-pin Mix-N-Match cable

What’s in the Box:

• Airmar B175C-0-HW-MM Transducer

• MMC-8G or MMC-12G Mix-N-Match Cable

Variants (by Connector Type):
