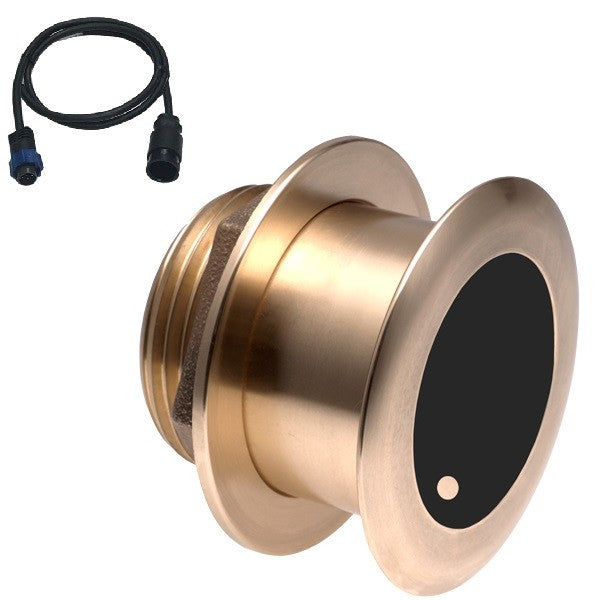

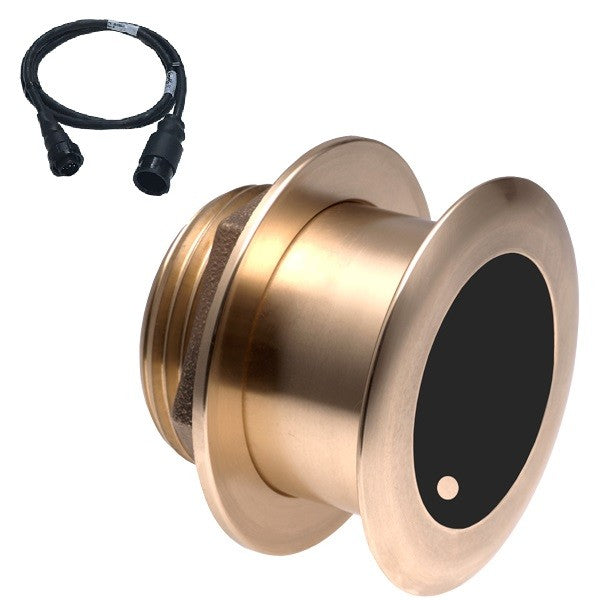

Airmar B175C-0-HW CHIRP 1kW Wide-Beam Transducer – 0° Tilt with Navico Connectors.

Airmar B175C-0-HW CHIRP 1kW Wide-Beam Transducer – 0° Tilt with Navico 7-Pin or 9-Pin Connector

Description:

Model Numbers:

• Navico 7-Pin: B175C-0-HW-BL

• Navico 9-Pin: B175C-0-HW-9N

Product Overview:
The Airmar B175C-0-HW delivers wide-beam CHIRP performance in a compact, flush-mount package. Designed for boats with flat or near-flat hulls (0°–7° deadrise), this 1kW transducer sends a constant 25° beamwidth from 150 to 250 kHz — providing twice the sonar coverage of standard high-frequency CHIRP units.

Ideal for structure fishing and upper water column detection, it delivers crisp returns and larger target images, even in shallower depths (up to 1,000 ft). The internal Tilted Element design eliminates the need for a fairing block. Compatible with Navico systems using 7-pin or 9-pin Mix-N-Match cables.

Key Features:

• CHIRP wide-beam frequency: 150–250 kHz

• Constant 25° beamwidth

• Max depth: up to 1,000 ft

• 0° tilt for hulls with 0°–7° deadrise

• Enhanced coverage for structure and mid-column fish

• For fiberglass or wood hulls, 25 ft and up

• Flush-mount bronze housing (no fairing required)

• Fast-response temp and depth sensor

• Choose Navico 7-pin or 9-pin connector

What’s in the Box:

• Airmar B175C-0-HW-MM Transducer

• MMC-BL or MMC-9N Mix-N-Match Cable

Variants (by Connector Type):
