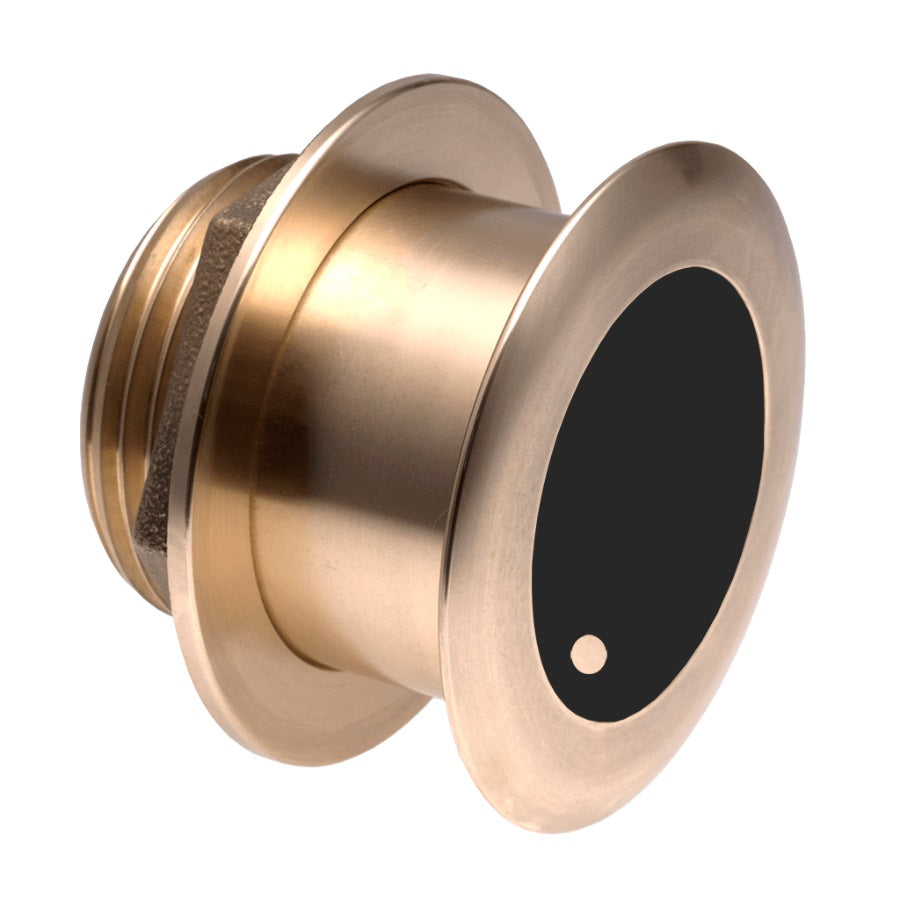

Airmar B175C-0-L CHIRP 1kW Low-Frequency Transducer – 0° Tilt with Furuno Connectors.

Airmar B175C-0-L CHIRP 1kW Low-Frequency Transducer – 0° Tilt with Furuno 10-Pin or 12-Pin Connector

---

Description:

Model Numbers:

• Furuno 10-Pin: B175C-0-L-10F

• Furuno 12-Pin: B175C-0-L-12F

Product Overview:
Designed for serious offshore fishing and commercial operations, the Airmar B175C-0-L delivers powerful low-frequency CHIRP sonar from 40 to 75 kHz, optimized for deep water clarity and expansive bottom tracking. This thru-hull, 0° Tilted Element™ model is ideal for boats with 0°–7° deadrise, ensuring the sonar beam is directed straight down for maximum return accuracy.

This model features exclusive Xducer ID® technology and a urethane acoustic window for durability and performance. The broad 32° to 21° beamwidth provides excellent coverage, making it suitable for identifying structure, fish arches, and seabed composition — even at great depths.

Compatible with Furuno CHIRP-enabled systems, this unit includes your choice of a 10-pin or 12-pin Mix-N-Match cable, depending on your Furuno configuration.

Key Features:

• CHIRP low-frequency range: 40–75 kHz

• Beamwidth: 32°–21°

• Max depth: up to 10,000 ft (3,000 m)

• Tilted Element 0° – for hulls with 0°–7° deadrise

• Flush-mount bronze housing (no fairing block required)

• 1kW RMS power rating

• Fast-response water temperature and depth sensor

• Compatible with fiberglass, wood, and metal hulls

• Choose Furuno 10-pin or 12-pin connector

What’s in the Box:

• Airmar B175C-0-L-MM Transducer

• MMC-10F or MMC-12F Mix-N-Match Cable

---

Variants (by Connector Type):

---

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Available in 0° or 12° tilted versions only
• 35 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology
• Depth & fast-response water-temperature sensor
• Hull Type: Wood, fiberglass and metal stepped, planing or displacement type hulls
• Fixed 0° tilted version for 0° to 7° hull deadrise
• Engine Type: Can be used with all propulsion types

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 20 kHz of total bandwidth in just one installation, saving customers time and money.

A Tilted Element™ model in the Chirp Thru-Hull product line, the B175L Chirps across the following bandwidths:

L Model - Low Frequency 40-60 kHz

Acoutis Window Urethane Weight 2.7 kg (6 lb)
What's in the Box:

• B175 Low Chirp, 1kW, 0° Tilt, M&M Transducer, DT
• MMC-10F Furuno 10-{Pin Mix-N-Match Cable
