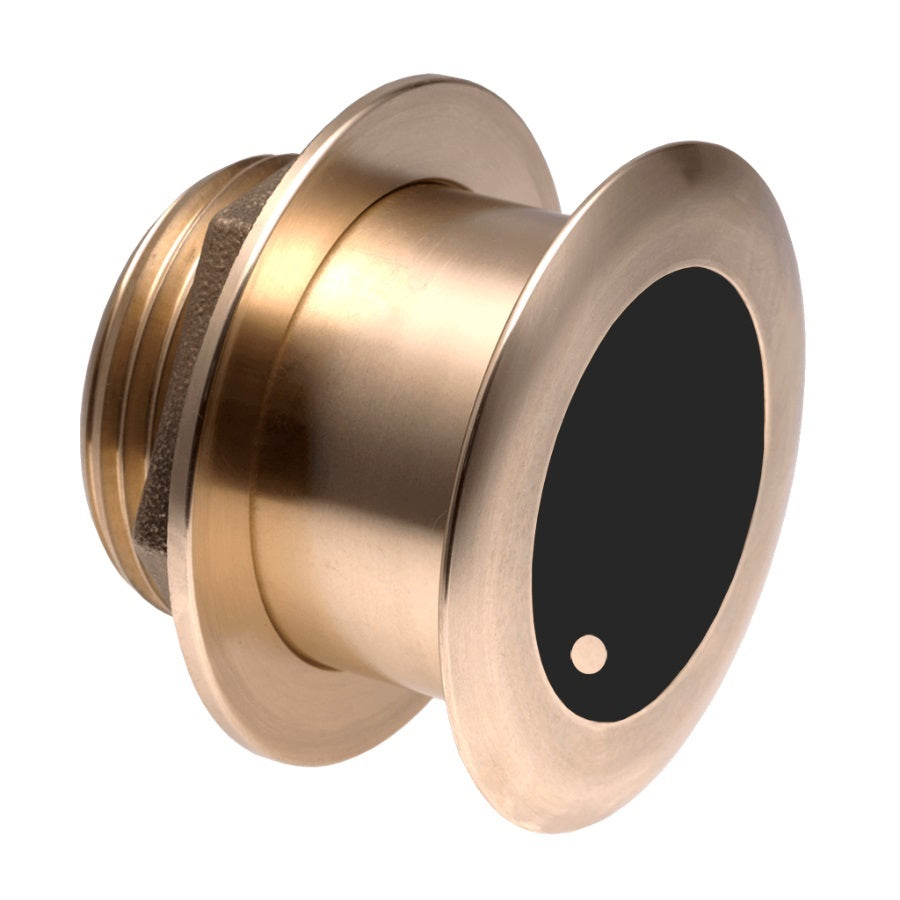

Airmar B175C-0-L CHIRP 1kW Low-Frequency Transducer – 0° Tilt with Garmin Connectors.

Airmar B175C-0-L CHIRP 1kW Low-Frequency Transducer – 0° Tilt with Garmin 8-Pin or 12-Pin Connector

Description:

Model Numbers:

• Garmin 8-Pin: B175C-0-L-8G

• Garmin 12-Pin: B175C-0-L-12G

Product Overview:
The Airmar B175C-0-L is built for serious offshore and deep-sea anglers who demand precise, deep-water CHIRP performance. Operating from 40 to 75 kHz with a beamwidth of 32° to 21°, this 1kW low-frequency transducer provides superior deep-bottom tracking—up to 10,000 ft—and detailed returns on baitfish, game fish, and seabed contours.

With a 0° tilt, it’s designed for vessels with 0°–7° deadrise and mounts flush to the hull, eliminating the need for a fairing block. It features Xducer ID® technology and a urethane acoustic window for enhanced durability. This model is available with your choice of a Garmin 8-pin or 12-pin Mix-N-Match cable to match your electronics setup.

Key Features:

• Low-frequency CHIRP (40–75 kHz)

• Beamwidth: 32° to 21°

• Max depth: up to 10,000 ft (3,000 m)

• 1kW RMS power

• 0° Tilted Element – for hulls with 0°–7° deadrise

• Flush bronze thru-hull housing

• Exclusive Xducer ID® technology

• Fast-response water temperature and depth sensor

• Compatible with Garmin CHIRP systems

• Includes 8-pin or 12-pin Mix-N-Match cable

What’s in the Box:

• Airmar B175C-0-L-MM Transducer

• MMC-8G or MMC-12G Mix-N-Match Cable

Variants (by Connector Type):
