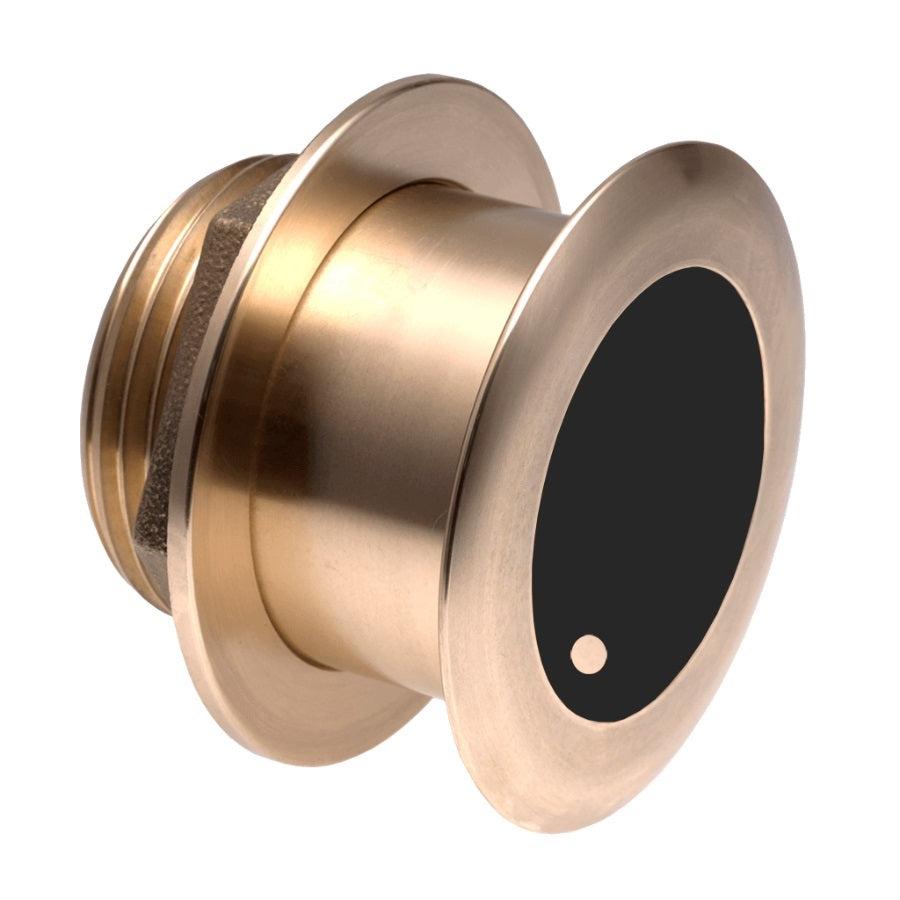

Airmar B175C-0-L CHIRP 1kW Low-Frequency Transducer – 0° Tilt with Humminbird Connector.

Airmar B175C-0-L CHIRP 1kW Low-Frequency Transducer – 0° Tilt with Humminbird 9-Pin or 14-Pin Connector

Description:

Model Numbers:

• Humminbird 9-Pin: B175C-0-L-HB

• Humminbird 14-Pin: B175C-0-L-14HB

Product Overview:
Designed for deep-sea anglers and offshore pros, the Airmar B175C-0-L delivers exceptional CHIRP sonar clarity in low-frequency ranges ideal for bottom tracking, structure mapping, and big game fish detection. With a powerful 1kW RMS output, this transducer CHIRPs from 40 to 75 kHz with a beamwidth of 32° to 21°, delivering superb detail down to 10,000 ft (3,000 m).

This 0° Tilted Element model is optimized for boats with flat or near-flat hulls (0°–7° deadrise), and installs flush without a fairing block. Built with a rugged bronze housing and urethane acoustic window, it's compatible with fiberglass, wood, or metal hulls. Choose from Humminbird 9-pin or 14-pin Mix-N-Match cables based on your system requirements.

Key Features:

• Low-frequency CHIRP: 40–75 kHz

• Beamwidth: 32° to 21°

• Max depth: up to 10,000 ft (3,000 m)

• 1kW RMS power rating

• 0° Tilted Element for hulls with 0°–7° deadrise

• Bronze thru-hull housing — no fairing block required

• Xducer ID® technology

• Fast-response depth and temperature sensor

• Compatible with Humminbird CHIRP systems

• Includes 9-pin or 14-pin Mix-N-Match cable

What’s in the Box:

• Airmar B175C-0-L-MM Transducer

• MMC-HB (9-Pin) or MMC-14HB (14-Pin) Mix-N-Match Cable

Variants (by Connector Type):
