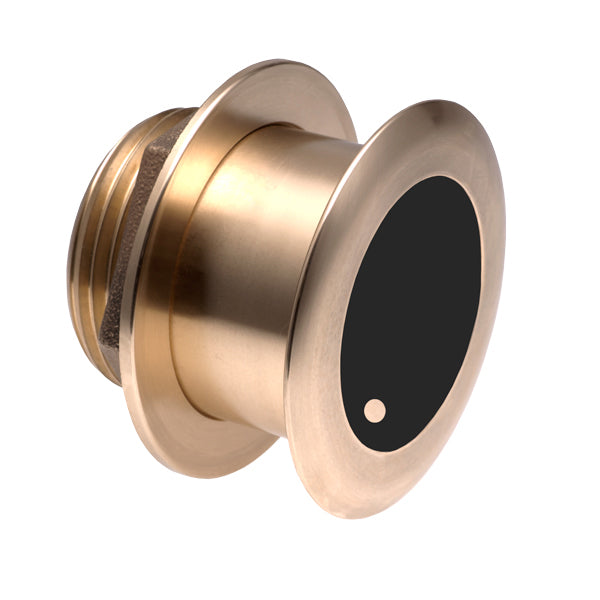

Airmar B175C- Tilted Medium CHIRP With MM Connectors.

Airmar B175 CHIRP Medium Frequency 0° & 12° Tilted Element Bronze Thru Hull Transducers with Bare Wire Mix-N-Match Cable

The Airmar B175 series provides high-performance CHIRP-ready bronze thru-hull transducers designed for boats 8 m (25’) and above with fiberglass or wood hulls. Featuring permanently tilted ceramic elements to compensate for hull deadrise, these transducers offer enhanced target separation and bottom detail in mid-depth waters.

Model:

• B175C-0-M-MM – Medium CHIRP, 0° Tilt, 85–135 kHz, 24° to 16° beamwidth, deadrise 0° to 6°, max depth 1500 ft

• B175C-12-M-MM – Medium CHIRP, 12° Tilt, 85–135 kHz, 24° to 16° beamwidth, deadrise 8° to 15°, max depth 1500 ft

Key Features

• Depth and fast-response water-temperature sensors for real-time accuracy

• 1 kW power rating at 1% duty cycle ensures powerful sonar signal transmission

• Medium-frequency CHIRP operation delivers sharp fish and structure separation

• Permanently tilted element inside housing corrects for hull deadrise to aim sonar beam directly downward

• Low-profile bronze housing with urethane acoustic window for reduced drag and durability

• Covers popular fishing frequencies including 88 kHz and 107 kHz

• Flush-mount design for easy installation in fiberglass or wood hulls

• Compatible with Raymarine systems via bare wire Mix-N-Match cable

Model Comparison Table

What’s in the Box

• Selected B175C transducer

• MMC-0 Bare Wire Mix-N-Match Cable
