Airmar B175C-0-M CHIRP 1kW Medium-Frequency Transducer – 0° Tilt with Garmin Connectors.

Airmar B175C-0-M CHIRP 1kW Medium-Frequency Transducer – 0° Tilt with Garmin 8-Pin or 12-Pin Connector

Description:

Model Numbers:

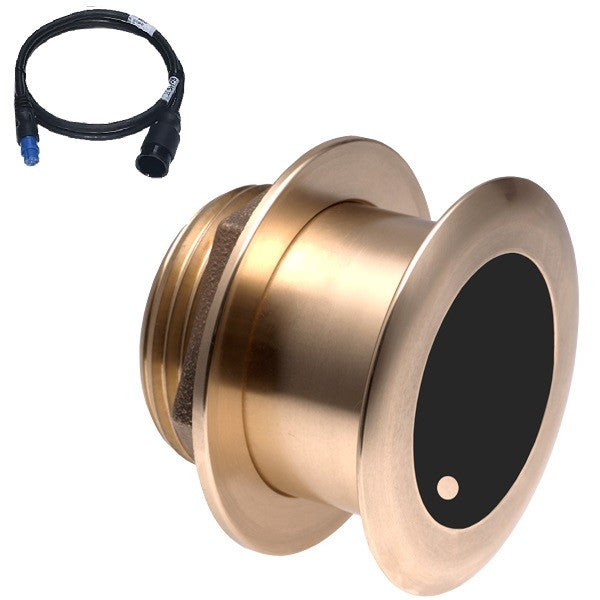

• Garmin 8-Pin: B175C-0-M-8G

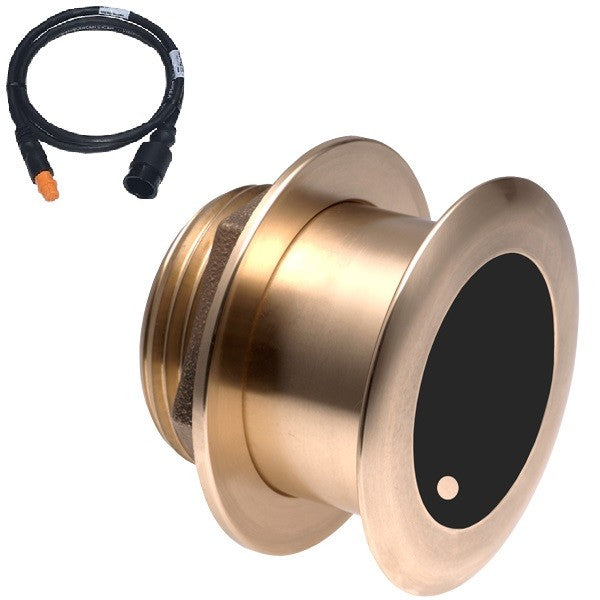

• Garmin 12-Pin: B175C-0-M-12G

Product Overview:
The Airmar B175C-0-M transducer offers a powerful balance of depth penetration and target detail with a CHIRP range of 85–135 kHz and a beamwidth of 24° to 16°. This makes it ideal for general-purpose offshore fishing where both range and clarity are required.

With a 0° Tilted Element, this thru-hull model is designed for boats with 0°–7° deadrise, ensuring a perfectly vertical sonar beam without the need for a fairing block. The 1kW broadband output enables exceptional bottom tracking, structure ID, and fish separation at depths up to 1,500–2,500 ft.

This version includes your choice of Garmin 8-pin or 12-pin Mix-N-Match cable, making it easy to match your electronics setup.

Key Features:

• CHIRP medium frequency: 85–135 kHz

• Beamwidth: 24° to 16°

• Max depth: up to 1,500–2,500 ft

• 1kW RMS output

• 0° Tilted Element – for hulls with 0°–7° deadrise

• Flush bronze thru-hull housing (no fairing block needed)

• Urethane acoustic window for durability

• Fast-response temperature and depth sensors

• Compatible with Garmin CHIRP systems

• Includes 8-pin or 12-pin Mix-N-Match cable

What’s in the Box:

• Airmar B175C-0-M-MM Transducer

• MMC-8G or MMC-12G Mix-N-Match Cable

Variants (by Connector Type):
