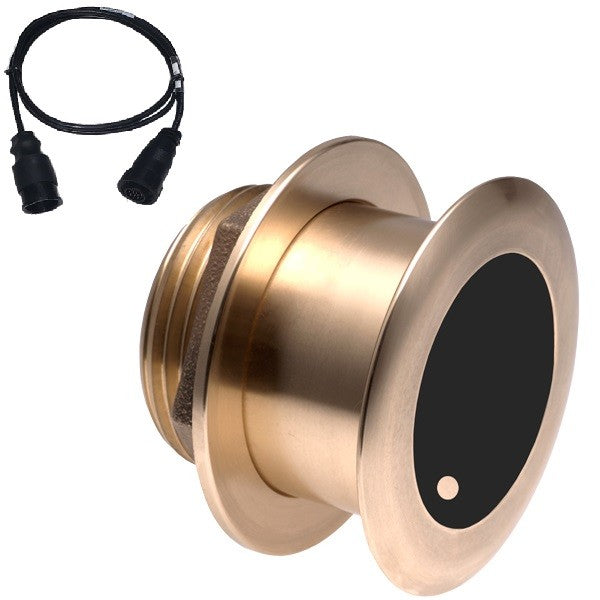

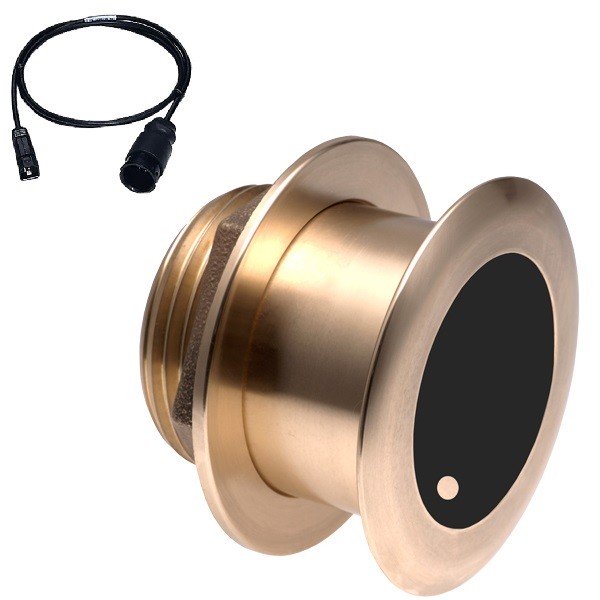

Airmar B175C-0-M CHIRP 1kW Medium-Frequency Transducer – 0° Tilt with Humminbird Connectors.

Airmar B175C-0-M CHIRP 1kW Medium-Frequency Transducer – 0° Tilt with Humminbird 9-Pin or 14-Pin Connector

Description:

Model Numbers:

• Humminbird 9-Pin: B175C-0-M-HB

• Humminbird 14-Pin: B175C-0-M-14HB

Product Overview:
The Airmar B175C-0-M delivers crisp, mid-depth sonar performance with a CHIRP range of 85–135 kHz, making it ideal for anglers targeting structure, fish arches, and baitfish in the 500–1,500 ft depth range. The 24° to 16° beamwidth balances broad coverage with focused detail, while the 0° internal tilt aligns the ceramic element perfectly for flat or near-flat hulls (0°–7° deadrise).

Its 1kW RMS output, flush bronze housing, and fast-response temperature sensor make this a great fit for both serious recreational and commercial fishermen. It’s compatible with Humminbird CHIRP-enabled sonar systems via your choice of 9-pin or 14-pin Mix-N-Match cable.

Key Features:

• Medium-frequency CHIRP: 85–135 kHz

• Beamwidth: 24° to 16°

• Max depth: 1,500+ ft

• 1kW RMS output

• 0° Tilted Element – for 0°–7° hull deadrise

• Bronze thru-hull housing (no fairing block required)

• Urethane acoustic window

• Fast-response temperature and depth sensor

• Compatible with Humminbird 9-pin or 14-pin CHIRP systems

What’s in the Box:

• Airmar B175C-0-M-MM Transducer

• MMC-HB (9-Pin) or MMC-14HB (14-Pin) Mix-N-Match Cable

Variants (by Connector Type):
