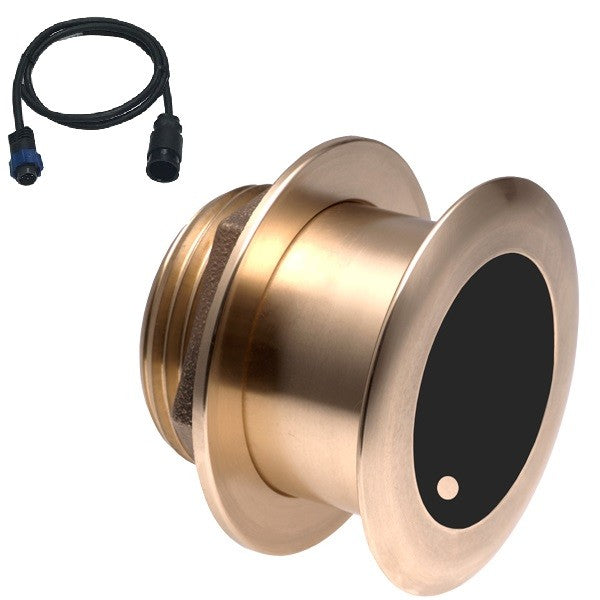

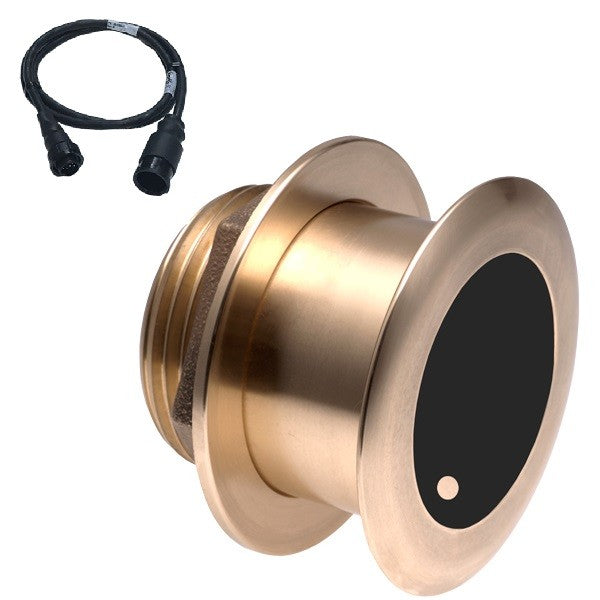

Airmar B175C-0-M CHIRP 1kW Medium-Frequency Transducer – 0° Tilt with Navico Connector.

Airmar B175C-0-M CHIRP 1kW Medium-Frequency Transducer – 0° Tilt with Navico 7-Pin or 9-Pin Connector

Description:

Model Numbers:

• Navico 7-Pin: B175C-0-M-BL

• Navico 9-Pin: B175C-0-M-9N

Product Overview:
The Airmar B175C-0-M is the go-to medium-frequency CHIRP transducer for anglers targeting depths of 500 to 1,500+ ft. With a CHIRP range of 85–135 kHz and a 24° to 16° beamwidth, it delivers excellent resolution and bottom detail for a variety of fishing conditions.

Featuring a 0° Tilted Element, it’s ideal for flat or near-flat hulls (0°–7° deadrise), sending sonar beams straight down for max energy return — no fairing block required. The durable bronze thru-hull housing and urethane acoustic window ensure long-lasting performance in tough marine environments.

Choose the Navico 7-pin or 9-pin Mix-N-Match cable to match your CHIRP-ready display and get precision sonar where it counts.

Key Features:

• CHIRP medium frequency: 85–135 kHz

• Beamwidth: 24° to 16°

• Max depth: ~1,500 ft

• 1kW RMS output

• 0° Tilted Element – for 0°–7° hull deadrise

• Bronze flush-mount housing — fairing block not needed

• Urethane acoustic window

• Fast-response depth & temperature sensor

• Compatible with Navico 7-pin or 9-pin systems

What’s in the Box:

• Airmar B175C-0-M-MM Transducer

• MMC-BL (7-Pin) or MMC-9N (9-Pin) Mix-N-Match Cable

Variants (by Connector Type):
