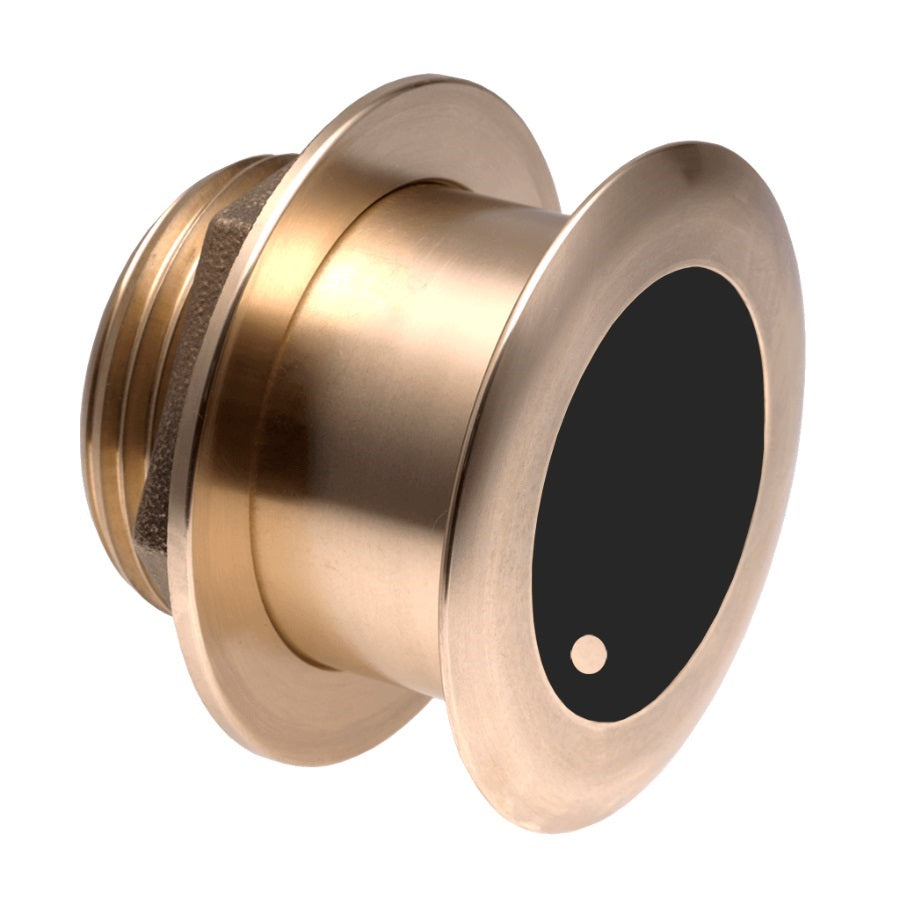

Airmar B175C MW Tilted Element Medium CHIRP Ultra Wide with Bare Wire MMC.
Couldn't load pickup availability
Description
Description
Airmar B175MW Medium Ultra-Wide CHIRP-Ready Tilted Element™ Thru-Hull Transducers with Mix-N-Match Cables
Product Description
The Airmar B175MW series are medium-frequency (60-100 kHz) CHIRP-ready, ultra-wide beam tilted element thru-hull transducers designed for excellent mid-depth fishing and target separation with powerful 1 kW output. These transducers feature an ultra-wide beamwidth of 57° to 73° port-to-starboard and a 16° average fore-aft, providing maximum sonar coverage beneath the vessel. Available in fixed tilt angles—0°, 12°, and 20°—they are tailored for hull deadrise angles ranging from 0° to 7°, 8° to 15°, and 16° to 24°, respectively. This ensures optimal vertical positioning of the ceramic transducer element for maximum echo returns and performance.
Housed in bronze, these transducers are built for use on stepped, planing, or displacement hulls made of fiberglass or wood. The low-profile thru-hull construction maintains excellent resolution at speed, and the unit includes depth and fast-response water temperature sensors. The Mix-N-Match cable system facilitates flexible connectivity, currently compatible with Garmin GSD28 systems for bare-wire versions.
Model Numbers
| Model Number | Tilt Angle | Hull Deadrise Compatibility |
|---|---|---|
| B175C-0-MW-MM | 0° Tilted Element | 0° to 7° |
| B175C-12-MW-MM | 12° Tilted Element | 8° to 15° |
| B175C-20-MW-MM | 20° Tilted Element | 16° to 24° |
Key Features
-
Medium CHIRP frequency range: 60-100 kHz
-
Power rating: 1 kW with depth tracking up to 400 m (1,300 ft)
-
Ultra-wide beamwidth: 57°–73° port/starboard; 16° average fore/aft
-
Depth and fast-response water temperature sensing
-
Bronze thru-hull housing ideal for stepped, planing, or displacement hulls
-
Fixed tilt element matched to hull deadrise for precise vertical sonification
-
Low-profile design provides high resolution at speed
-
Mix-N-Match bare wire cable for flexible integration (compatible with Garmin GSD28)
-
Suitable for fiberglass and wood hulls up to 11 m (36 ft) LOA
-
Exclusive patented Airmar Xducer ID® technology
-
Operating temperature range: -10° to 40°C (14° to 104°F)
Comparison Table
| Feature | B175C-0-MW-MM (0° Tilt) | B175C-12-MW-MM (12° Tilt) | B175C-20-MW-MM (20° Tilt) |
|---|---|---|---|
| Tilt Angle | 0° | 12° | 20° |
| Hull Deadrise Range | 0° to 7° | 8° to 15° | 16° to 24° |
| Frequency Range | 60-100 kHz | 60-100 kHz | 60-100 kHz |
| Power | 1 kW | 1 kW | 1 kW |
| Max Depth | 400 m (1,300 ft) | 400 m (1,300 ft) | 400 m (1,300 ft) |
| Beamwidth (Port/Starboard) | 57°–73° | 57°–73° | 57°–73° |
| Beamwidth (Fore/Aft) | 16° average | 16° average | 16° average |
| Housing | Bronze | Bronze | Bronze |
| Hull Compatibility | Fiberglass/Wood | Fiberglass/Wood | Fiberglass/Wood |
| Cable Length | 9 m (30 ft) | 9 m (30 ft) | 9 m (30 ft) |
| Cable End | Mix-N-Match Bare Wire | Mix-N-Match Bare Wire | Mix-N-Match Bare Wire |
What’s in the Box
-
B175MW Medium Ultra-Wide CHIRP-ready Tilted Element™ Thru-Hull Transducer (selected tilt model)
-
9 m (30 ft) Mix-N-Match Bare Wire Cable
