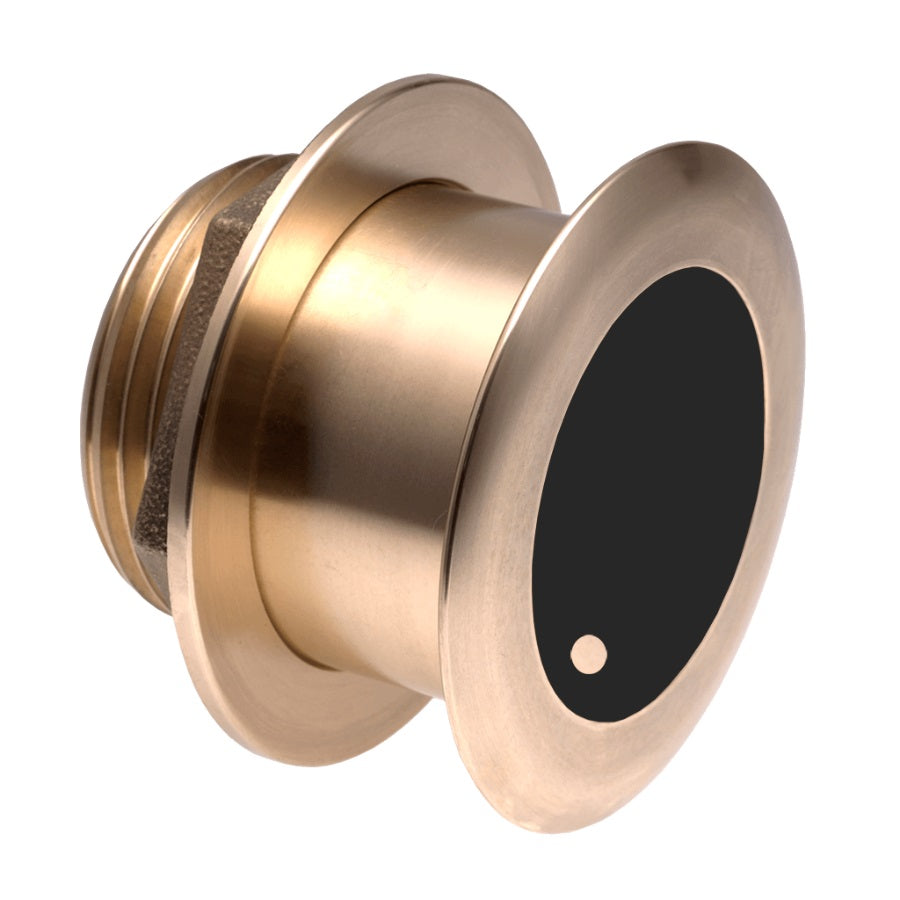

Airmar B175C-0-MW CHIRP 1kW Medium Ultra-Wide Transducer – 0° Tilt with Furuno Connectors.

Airmar B175C-0-MW CHIRP 1kW Medium Ultra-Wide Transducer – 0° Tilt with Furuno 10-Pin or 12-Pin Connector

Description:

Model Numbers:

• Furuno 10-Pin: B175C-0-MW-10F

• Furuno 12-Pin: B175C-0-MW-12F

Product Overview:
The Airmar B175C-0-MW is a next-generation CHIRP transducer engineered for maximum sonar coverage in the medium-frequency range (60–100 kHz). With a 57° to 73° beamwidth (port/starboard) and a 16° average beam (fore/aft), this Ultra-Wide Tilted Element™ model offers unmatched detection in the upper water column, making it ideal for pelagic gamefish such as tuna, wahoo, and mahi.

Designed for flat or near-flat hulls (0°–7° deadrise), the B175C-0-MW mounts flush and delivers incredible detail without the need for a fairing block. It pairs seamlessly with Furuno CHIRP-enabled systems and includes your choice of 10-pin or 12-pin Mix-N-Match cable.

Model:

Key Features:

• CHIRP medium frequency: 60–100 kHz

• Ultra-wide beam: 57°–73° (port/starboard) × 16° avg. (fore/aft)

• Max depth: 400 m (1,300 ft)

• 1kW RMS power

• 0° Tilted Element – ideal for 0°–7° hull deadrise

• Bronze flush-mount housing for fiberglass or wood hulls

• Exclusive Xducer ID® technology

• Low-profile design minimizes drag and works well at speed

• Includes depth & fast-response temperature sensor

• Choose from Furuno 10-pin or 12-pin Mix-N-Match cable

Perfect For:

• Mid-depth fishing

• Pelagic species

• Wide-coverage sonar

• Fiberglass and wood vessels up to 36 ft

What’s in the Box:

• Airmar B175C-0-MW-MM Transducer

• MMC-10F or MMC-12F Furuno Mix-N-Match Cable
