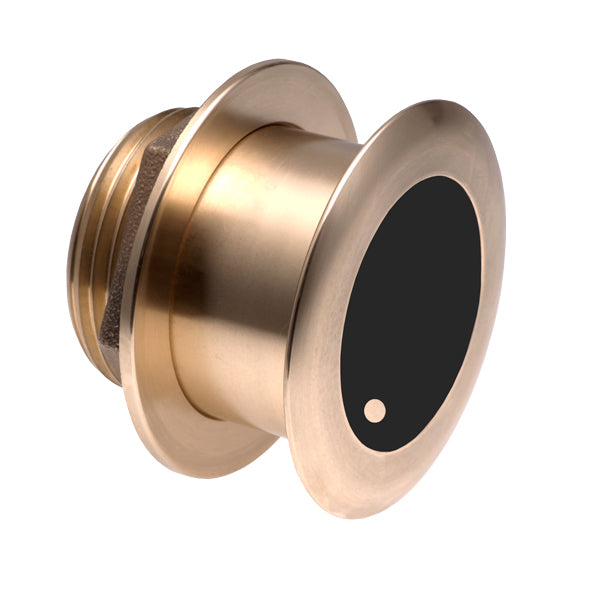

Airmar B175C-12-H MM Thru Hull 12 Deg Tilt

Product Description

The Airmar B175C-12-H is a Chirp-ready, low-profile thru-hull transducer with a 12° tilted element, designed for marine fishing electronics to deliver superior depth and fish-targeting performance on fiberglass or wood hulls with 8°-15° deadrise.

Product Overview

This high-frequency model excels in shallow-water scanning, bottom detail, and separating baitfish or gamefish near structures like reefs and wrecks, making it ideal for boaters and anglers up to 36' vessels. It integrates depth sensing and fast-response water-temperature monitoring for optimized sonar displays from compatible fishfinders.

Key Specifications

• High CHIRP frequency: 130-210 kHz, 15°-9° beamwidth

• Max depth: 304 m (1,000 ft); 1 kW power handling

• Bronze housing, urethane acoustic window; hole size 70 mm (2-13/16")

What's in the Box

• Airmar B175C-12-H transducer with 12° tilt

• Mix-and-match cable (length varies by connector, e.g., Garmin 12-pin or Navico MM)

• Installation hardware and manual
