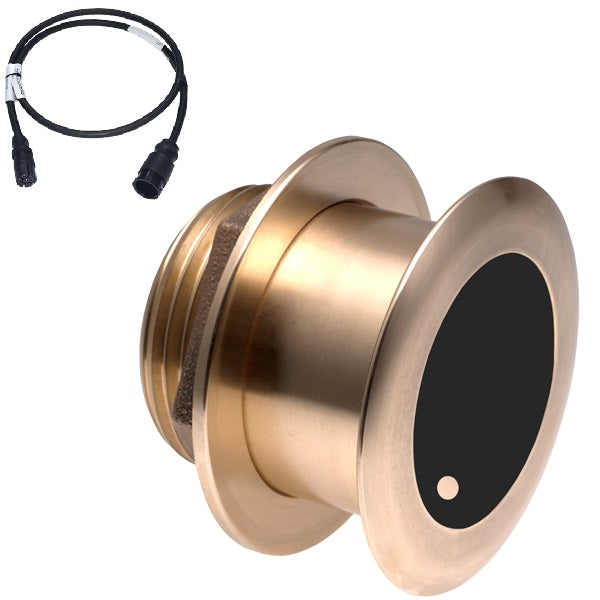

Airmar B175C- 12d - Thru Hull With 11-Pin Raymarine MM Cable Series.
Couldn't load pickup availability
Description
Description
Airmar B175C Thru-Hull Transducer Series – 12° Tilt | Raymarine 11-Pin Compatible
The Airmar B175C series transducers feature a 12° tilted ceramic element optimized for hulls with approximately 10° to 15° deadrise, designed specifically for Raymarine sonar systems using the 11-Pin Mix-N-Match connector. This range includes medium-frequency (B175C-12-M), high-frequency (B175C-12-H), and high wide frequency (B175C-12-HW) CHIRP transducers, tailored for diverse fishing environments from inshore to offshore and mid-depth to shallow water coverage.
Common Specifications
-
Power: 600 W
-
Acoustic Window: Urethane
-
Housing: Bronze
-
Tilt Angle: 12°
-
Hull Type: Fiberglass or wood
-
Compatible with Raymarine systems using 11-Pin Mix-N-Match cables
-
Exclusive Xducer ID® technology for automatic setup and optimal performance
Model Details
| Model | Frequency Range (kHz) | Beamwidth (°) | Max Depth (m / ft) | Recommended Use |
|---|---|---|---|---|
| B175C-12-M | Medium 80–130 | 24° to 16° | Approx. 274 / 900 | Mid-depth fishing, balanced performance |
| B175C-12-H | High 130–210 | 15° to 9° | Approx. 213 / 700 | High-detail bottom and fish tracking |
| B175C-12-HW | High Wide 150–250 | Constant 25° wide | Approx. 152 / 500 | Wide coverage, shallow to mid-depth, pelagic fishing |
What's In The Box
Each model comes with:
-
Airmar B175C transducer assembly (model specific)
-
Raymarine 11-Pin Mix-N-Match cable
-
Mounting hardware compatible with thru-hull installations
