Airmar B175C CHIRP 1kW High-Frequency 12° Tilt Thru-Hull Transducer with Garmin Connectors.

Airmar B175C CHIRP 1kW High-Frequency 12° Tilt Transducer – Garmin 8-Pin or 12-Pin

Model Numbers:

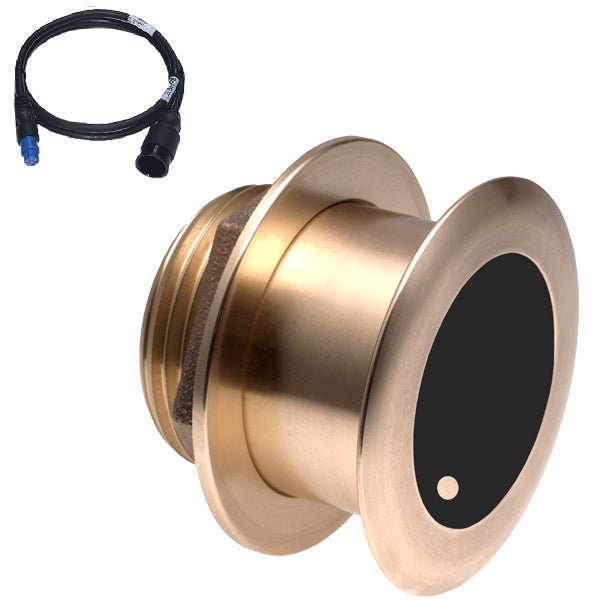

• Garmin 8-Pin: B175-C-12-H-8G

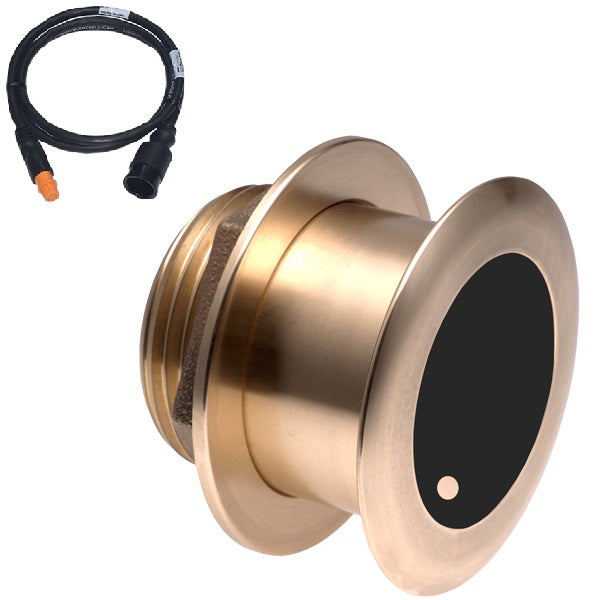

• Garmin 12-Pin: B175-C-12-H-12G

Overview:
The Airmar B175C High-Frequency CHIRP transducer is engineered for unmatched clarity and target separation in shallow to mid-depth waters. With a 12° Tilted Element™, it’s ideal for vessels with hull deadrise angles between 8°–15°, delivering exceptional sonar imaging through the 130–210 kHz frequency band and a focused 15° to 9° beamwidth.

Featuring 80 kHz of bandwidth, 1 kW power, and a bronze thru-hull housing, this model ensures durability, precision, and optimized performance with Garmin CHIRP sonar systems using either the 8-pin or 12-pin Mix-N-Match connector included. The Mix-N-Match end can also be trimmed for hardwired installations.

Key Features:

• CHIRPs from 130–210 kHz for high-resolution detail

• Narrow 15° to 9° beamwidth for precise fish and structure targeting

• Fixed 12° Tilted Element for 8°–15° hull deadrise

• Depth and fast-response water-temperature sensor

• Durable bronze low-profile thru-hull design

• Compatible with Garmin 8-pin or 12-pin CHIRP systems

• Built-in Xducer ID® for plug-and-play setup

• Ideal for boats up to 11 m (36’)

Specifications:

• Power: 1 kW

• Frequency: 130–210 kHz

• Housing: Bronze

• Acoustic Window: Urethane

• Max Depth: ~300–500 m (depth-dependent)

• Cable Length: 1 meter

• Mounting Style: Thru-Hull

• Hull Type: Fiberglass or wood

What's in the Box:

• Airmar B175C High-Frequency CHIRP Transducer

• Garmin 8-Pin or 12-Pin Mix-N-Match Cable (1m)

Connector Variants:
