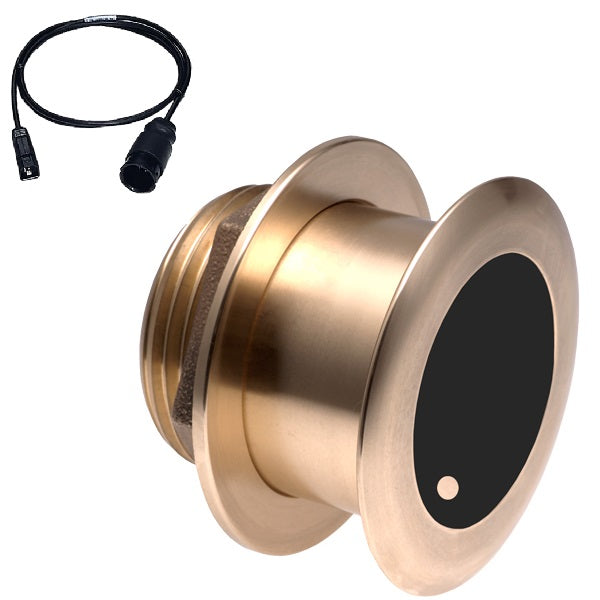

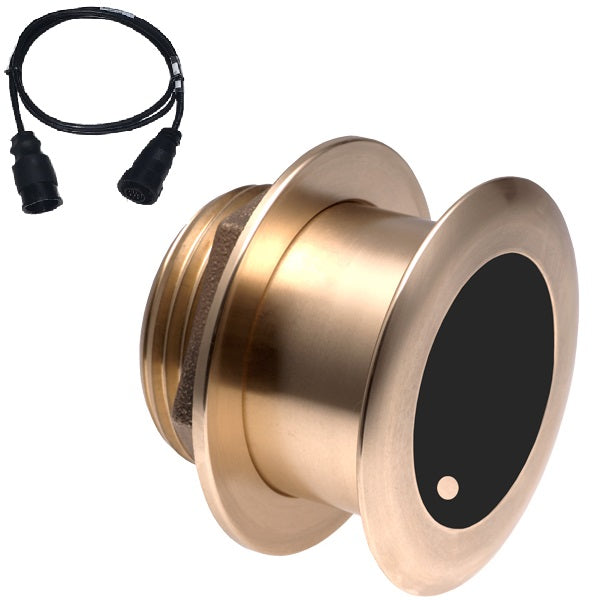

Airmar B175C CHIRP 1kW High-Frequency 12° Tilt Thru-Hull Transducer with Humminbird Connectors.

Airmar B175C CHIRP 1kW High-Frequency 12° Tilt Transducer – Humminbird 9-Pin or 14-Pin

Model Numbers:

• B175-C-12-H-HB (9-Pin)

• B175-C-12-H-14HB (14-Pin)

Airmar’s B175C CHIRP transducer is designed for serious anglers who demand superior detail and target separation in mid-to-deep waters. Operating on high-frequency CHIRP (130–210 kHz), it provides crystal-clear sonar returns with a narrow beam (15° to 9°) for precise fish detection. The 12° tilted bronze housing allows for optimal sonar performance on hulls with 8° to 15° deadrise.

Key Features:

• CHIRP range: 130–210 kHz

• Beamwidth: 15° to 9°

• High-frequency 80 kHz bandwidth

• 1 kW power rating

• Fast-response water-temperature sensor

• Bronze thru-hull housing

• Designed for boats up to 11 m (36’)

• Suitable for fiberglass or wood hulls

• Exclusive Xducer ID® technology

• Compatible with Humminbird systems via 9-Pin or 14-Pin Mix-and-Match cable

• Cable can be trimmed if a direct wire connection is preferred

What's in the Box:

• B175 High-Frequency 12° Tilt Thru-Hull Transducer

• Humminbird Mix-and-Match Cable (Choose: 9-Pin or 14-Pin, 1m)
