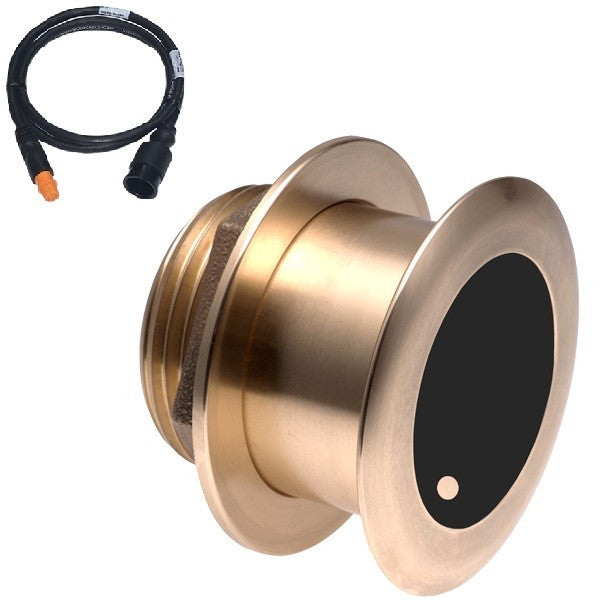

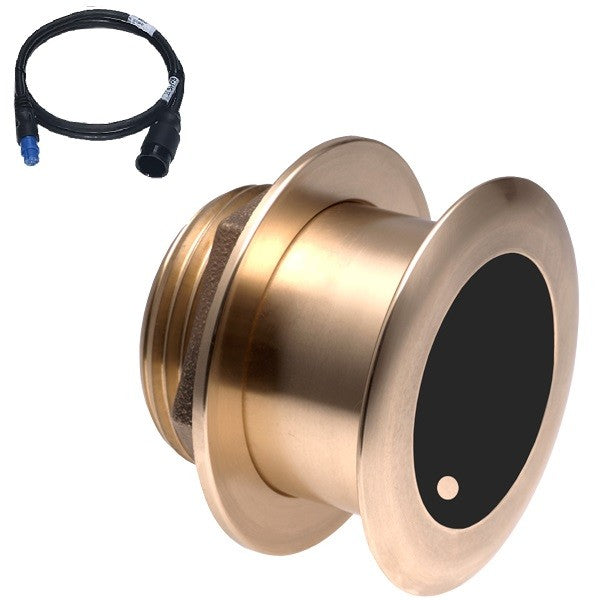

Airmar B175C CHIRP 1kW High-Frequency Wide Beam 12° Tilt Thru-Hull Transducer with Garmin Connectors.

Airmar B175C CHIRP 1kW High-Frequency 12° Tilt Wide Beam Transducer – Garmin 8-Pin or 12-Pin

Get twice the coverage and crisper returns with Airmar’s wide beam CHIRP transducer. The B175C-HW features a constant 25° beamwidth across a high-frequency range of 150–250 kHz, making it ideal for spotting fish in the upper water column and achieving excellent bottom detail. Designed for hulls with 8° to 15° deadrise, this 12° tilted element model installs flush to the hull and includes a built-in temperature sensor. Whether you're chasing pelagics or structure-oriented species, this 1kW powerhouse helps your CHIRP-ready sounder perform at its best.

Key Features:

• CHIRPS from 150 to 250 kHz

• Constant 25° wide beamwidth

• 100 kHz of total bandwidth

• Depth & fast-response water-temperature sensor

• Flush-mounted 12° Tilted Element

• Ideal for hull deadrise: 8° to 15°

• Boat Length: 8 m (25’) and above

• Hull Material: Fiberglass or wood

• Bronze housing

• Power Rating: 1 kW

What’s in the Box:

• B175C-12-HW-MM Transducer

• Garmin Mix-N-Match CHIRP Cable – 8-Pin or 12-Pin (1m)

Model Numbers:
