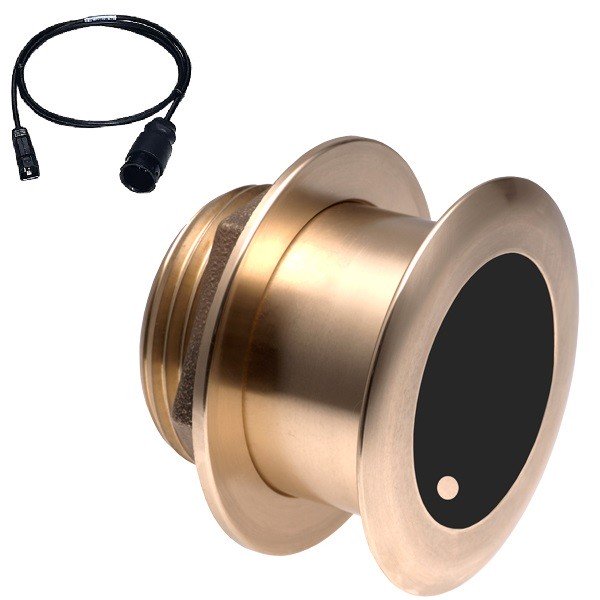

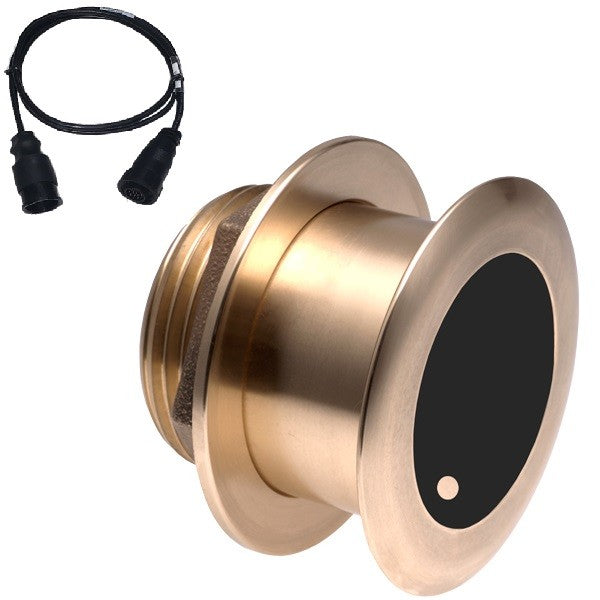

Airmar B175C CHIRP 1kW High-Frequency Wide Beam 12° Tilt Thru-Hull Transducer with Humminbird Connectors.

Airmar B175C CHIRP 1kW High-Frequency 12° Tilt Wide Beam Transducer – Humminbird 9-Pin or 14-Pin

Product Description:

Unlock greater fish-finding precision with Airmar’s wide beam CHIRP technology. The B175C-12-HW delivers a powerful high-frequency range of 150–250 kHz with a wide 25° beamwidth—ideal for locating fish across a broader column of water. This 1kW thru-hull model with a 12° tilt is built for hulls with 8° to 15° deadrise and installs flush for optimal performance at speed. With enhanced target definition and larger return images, it's the go-to transducer for Humminbird CHIRP-ready systems.

Key Features:

• CHIRPS from 150 to 250 kHz

• Constant 25° wide beamwidth across all frequencies

• 100 kHz of total bandwidth

• Exceptional upper-column fish detection

• Built-in fast-response water-temperature sensor

• Bronze, flush-mount thru-hull housing

• Ideal for hulls with 8° to 15° deadrise

• Compatible with Humminbird CHIRP-enabled systems

• Boat Size: 8 m (25’) and up

• Hull Type: Fiberglass or wood

• Power Rating: 1 kW

What’s in the Box:

• B175C-12-HW-MM Transducer

• Humminbird Mix-N-Match CHIRP Cable – 9-Pin or 14-Pin (1m)

Model Numbers:
