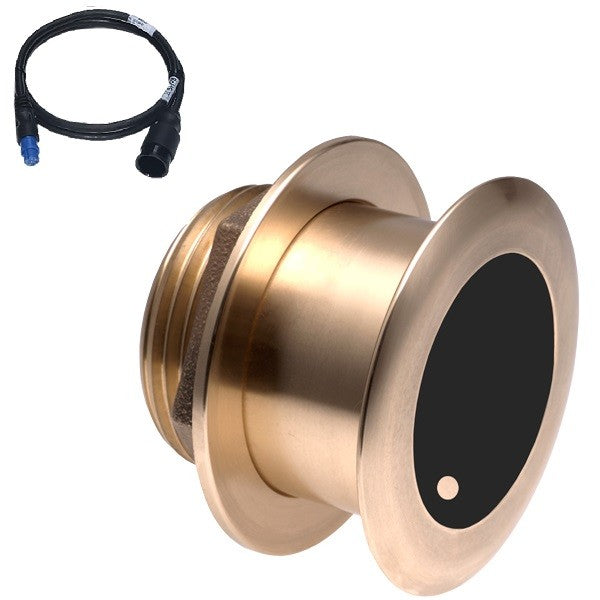

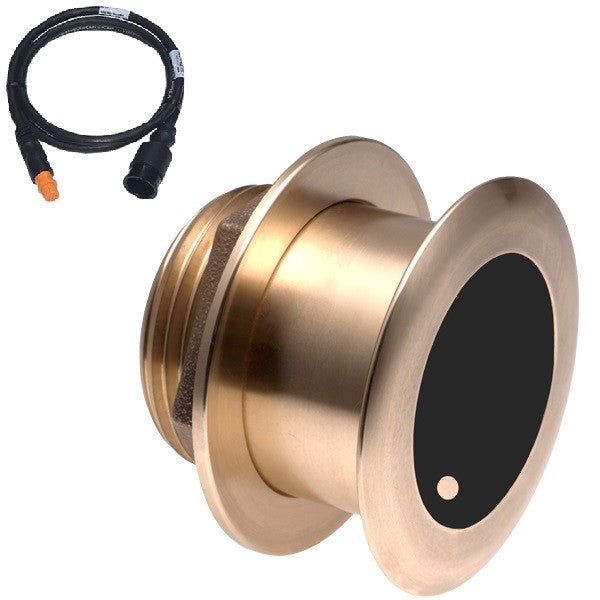

Airmar B175C CHIRP 1kW Medium-Frequency 12° Tilt Thru-Hull Transducer with Garmin Connectors.

Airmar B175C CHIRP 1kW Medium-Frequency 12° Tilt Transducer – Garmin 8-Pin or 12-Pin

Product Description:

Upgrade your sonar system with the Airmar B175C-12-M CHIRP transducer, designed for medium-frequency performance at 85–135 kHz. This 1kW tilted element model offers a 12° thru-hull mount, ideal for hulls with 8° to 15° deadrise. With a beamwidth ranging from 24° to 16°, this transducer provides excellent mid-depth detection and fish-target separation. Paired with Garmin CHIRP-ready systems, it delivers accurate depth readings, fast temperature response, and superior bottom tracking down to 3,000 meters (10,000 feet).

Key Features:

• CHIRPS from 85 to 135 kHz

• 50 kHz of total bandwidth

• 24° to 16° beamwidth

• Fast-response water-temperature sensor

• 12° tilted element thru-hull mount

• Power rating: 1kW

• Compatible with Garmin 8-pin and 12-pin sounders

• Ideal for fiberglass or wood hulls

• Boat size: 8m (25’) and above

What’s in the Box:

• B175C-12-M Transducer

• Garmin Mix-N-Match Cable – 8-Pin or 12-Pin (1m)

Model Numbers:
