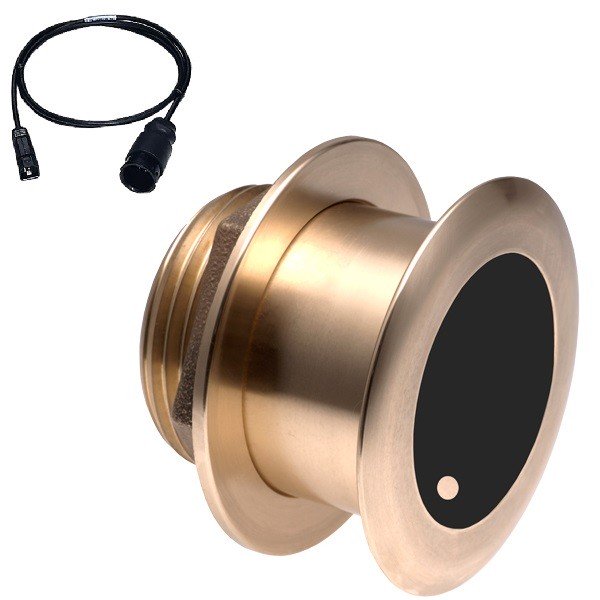

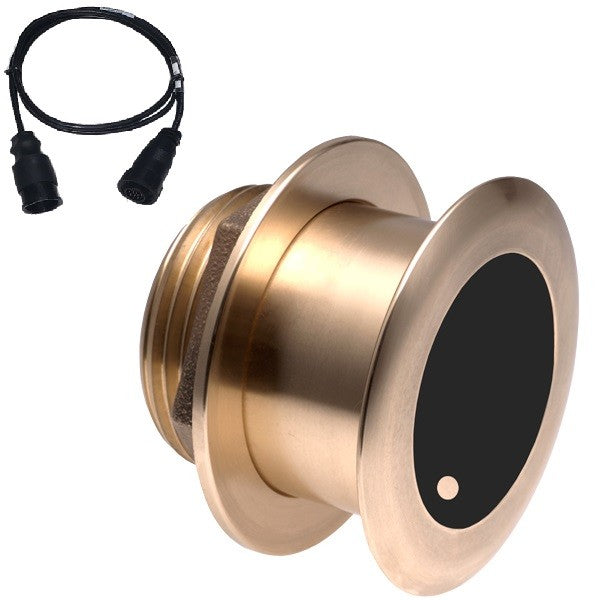

Airmar B175C CHIRP 1kW Medium-Frequency 12° Tilt Thru-Hull Transducer with Humminbird Connectors.

Airmar B175C CHIRP 1kW Medium-Frequency 12° Tilt Transducer – Humminbird 9-Pin or 14-Pin

Product Description:

Designed for anglers who demand precision at mid-depths, the Airmar B175C-12-M CHIRP 1kW transducer delivers crisp sonar imagery across the 85–135 kHz range. With a 12° tilted element, it installs cleanly on hulls with 8°–15° deadrise. The constant beamwidth (24° to 16°) ensures accurate target tracking and better coverage under the boat—whether you're after gamefish, baitfish, or bottom structure.

Fully compatible with Humminbird CHIRP-ready systems via 9-pin or 14-pin Mix-n-Match cables.

Key Features:

• Medium CHIRP: 85–135 kHz

• 24° to 16° beamwidth

• Fast-response water temperature sensor

• 12° tilted element for fiberglass/wood hulls

• Power: 1kW @ 1% duty cycle

• Ideal for boats 8 m (25') and up

• Clear fish-target separation and structure definition

• Mix-n-Match cable can be adapted or cut for direct connections

What’s in the Box:

• B175C-12-M Transducer

• Humminbird Mix-n-Match Cable – 9-Pin or 14-Pin (1m)

Model Numbers:
